Product Description

Scope of Application

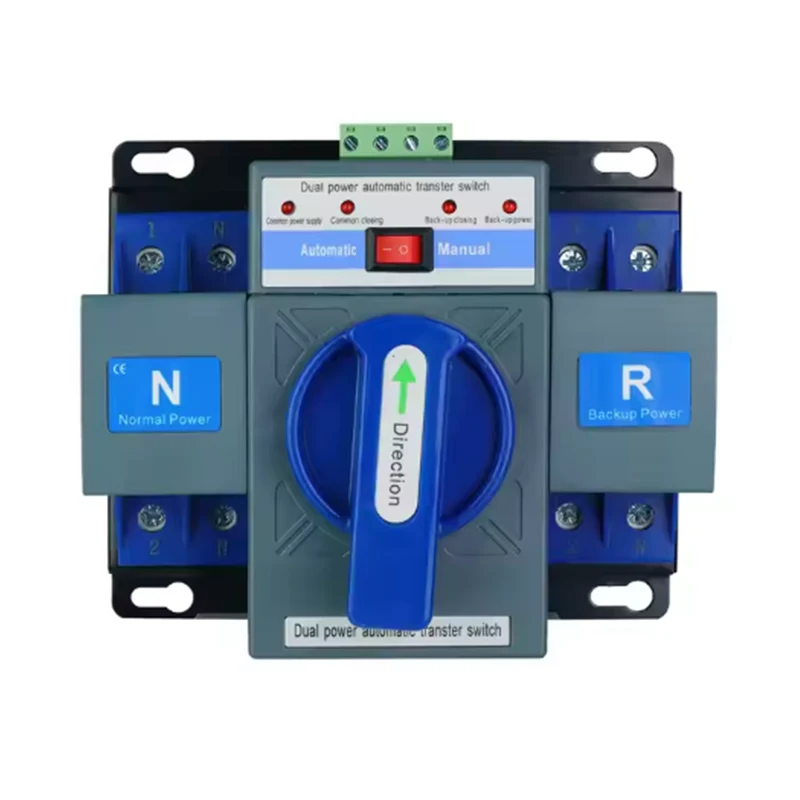

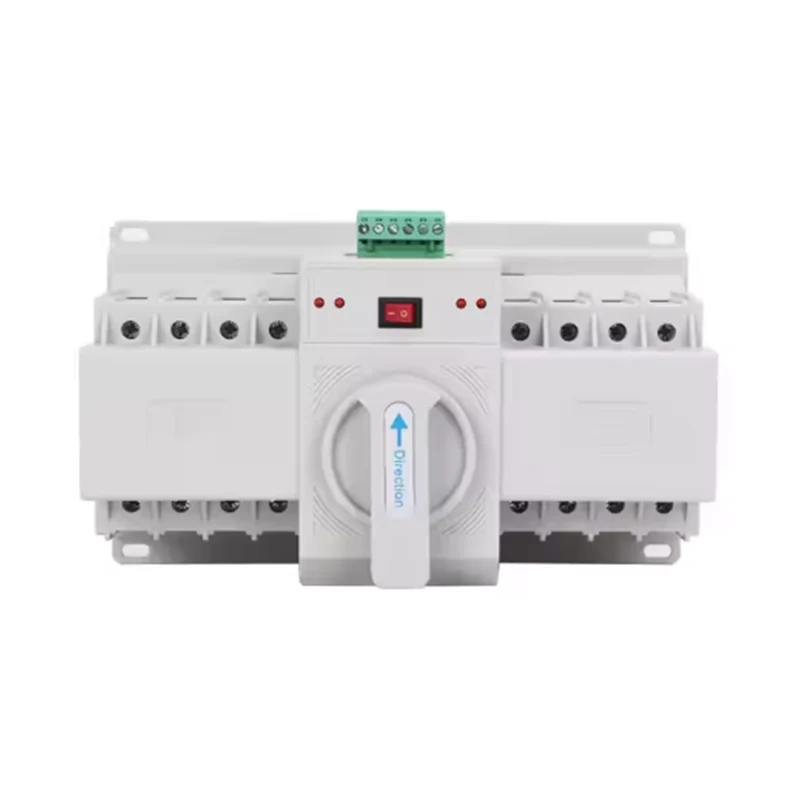

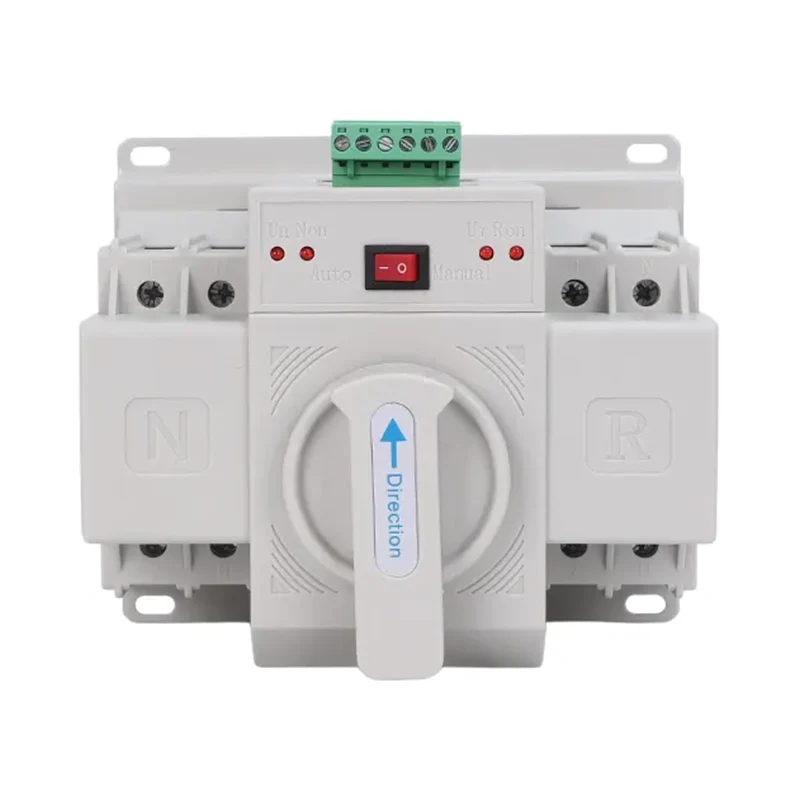

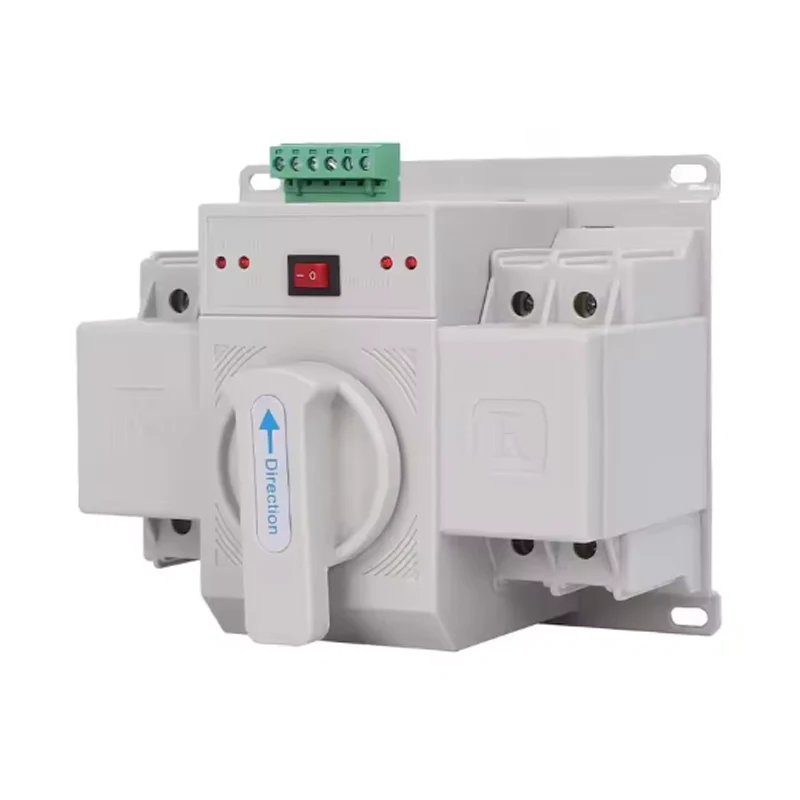

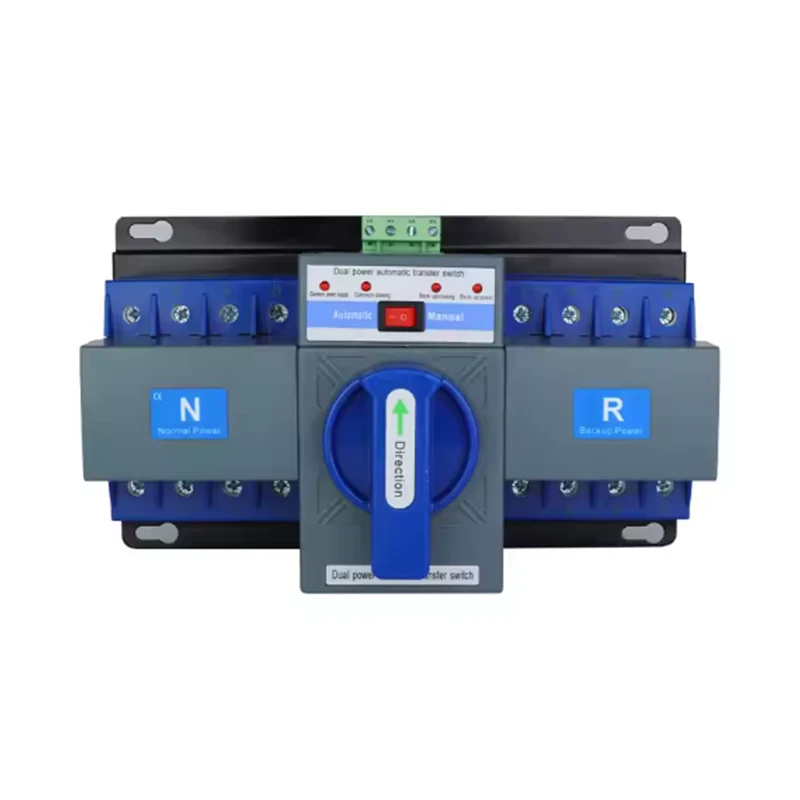

The XUCKY high-quality Q3 Automatic Transfer Switch ATS (hereinafter referred to as ATS) is suitable for power supply systems with AC 50Hz, rated voltage of 400V, and rated current of 63A and below. We offer two types of power switches, allowing you to choose between two power supplies based on your needs. This ATS not only features overload, short circuit, and under-voltage protection, but also fire, double-breaking, and output closing signal functions. It is particularly suitable for lighting lines in office buildings, shopping malls, banks, high-rise buildings, and other locations requiring fire protection.

Applications

As the professional manufacturer, XUCKY would like to provide you high quality Q3 Automatic Transfer Switch ATS, which is suitable for industries requiring fail-safe power, the Q3 is widely used in:

● Data centers and servers for server rack redundancy.

● Medical equipment (e.g., MRI machines) to prevent data loss.

● Industrial automation systems in manufacturing plants.

● Telecommunications and emergency systems, ensuring 24/7 connectivity.

Technical parameter

Basic parameters of Q3 Automatic Transfer Switch ATS see Table 1

Product performance parameters
Meet the standards		GB/T 14048.11
ATS class		CB class
Use categories		AC-33iB
Rated operating voltage Ue		AC230V-400V
Rated operating frequency		50Hz/60Hz
Rated operating current Ie		6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A 63A
Switching control voltage		AC230V
Rated insulation voltage Ui		AC690V
Conversion operation time		≤3s(Not adjustable, the factory has been adjusted)
Life	Electrical life	1500 times
	Mechanical life	6000 times
Rated short-time making capacity Icm		7.5kA
Rated short-time breaking capacity Icn		5kA

Basic parameters of terminal type and intelligent type of Q3 Automatic Transfer Switch ATS in Table 2

Product model	Common type	Intelligent type
Installation method	Integral type	Integral type
Operation method	Automatic and manual	Automatic manual and double breaking
Monitoring function	Phase failure detection	Common power supply three-phase undervoltage, lack phase and phase failure detection
Conversion method	Automatic change and automatic recovery	Automatic change and automatic recovery
Fire linkage control	No	DC12-24V input double breaking (Automatic fire cut-off function)
Display function	LED light	LED light
