1. Function and Purpose of the Rotary Knob

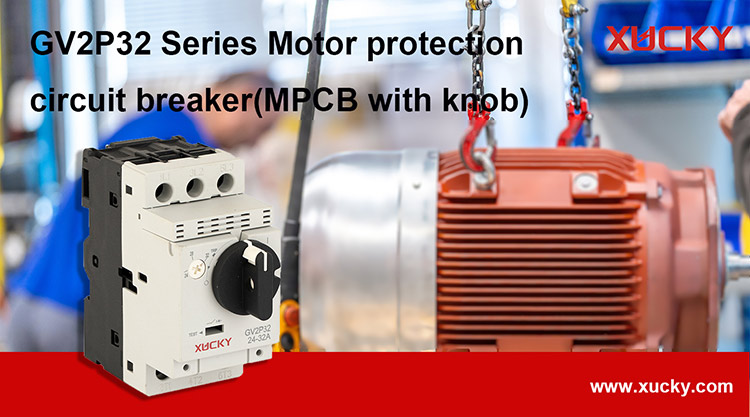

Manual Operation and Circuit Control: The rotary knob serves as a manual operating handle for switching the GV2P32 MPCB (Motor Protection Circuit Breaker) ON or OFF. It allows operators to directly control the power supply to the connected motor.
Trip Testing Mechanism: It integrates a test trip function (mentioned as "Test trip mechanism" in specifications). Rotating the knob to the test position simulates an overload condition, verifying the device’s protective response without real faults.
Safety Lockout: The knob provides a padlocking provision in the OFF position (e.g., during maintenance). This ensures the circuit remains de-energized, complying with safety standards like IP20.
2. Key Protective Functions of GV2P32
Thermal Overload Protection: Uses ambient-compensated bimetal strips (Class 10 trip) to prevent motor damage from prolonged overcurrent.
Magnetic Short-Circuit Protection: Instantly trips (<100ms) during high-current faults (e.g., short circuits).
Phase Sensitivity: Detects single-phase failures or imbalances, critical for three-phase motors.
3. Typical Application Equipment
GV2P32 MPCBs are widely used in industrial and commercial equipment requiring compact motor protection:
Industrial Machinery: Pumps, conveyors, compressors, and HVAC systems.
Material Handling Systems: Cranes, hoists, and automated assembly lines.
Process Control Units: Mixers, agitators, and packaging machines.
Building Automation: Fans, blowers, and escalator drives.
The GV2P32’s rotary knob is essential for manual control, safety testing, and lockout, while its core role is to protect motors from overloads, short circuits, and phase faults in diverse electromechanical systems. For technical specifics, refer to XUCKY datasheets or website.
