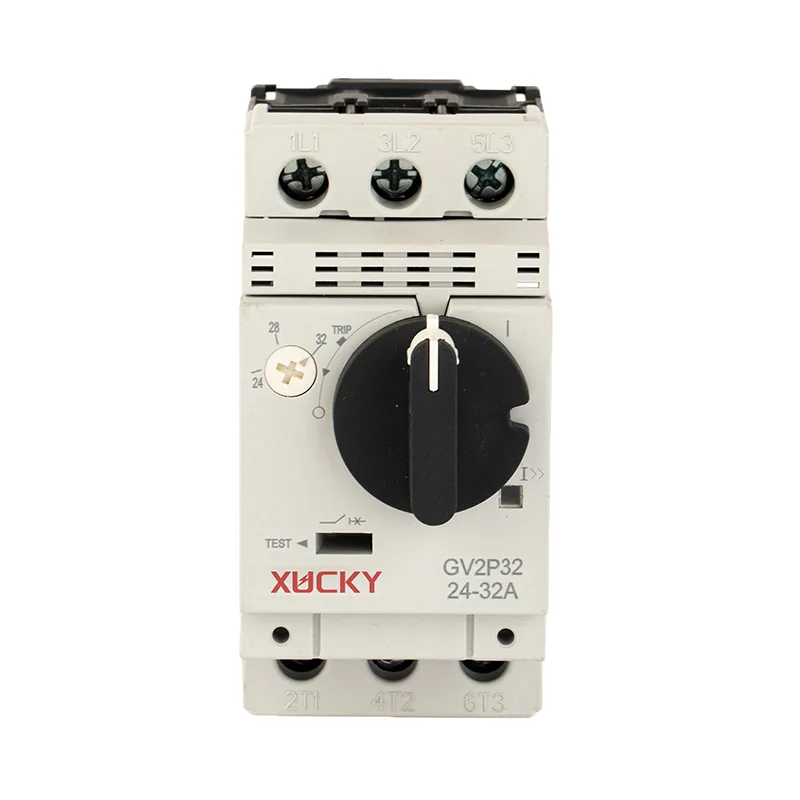

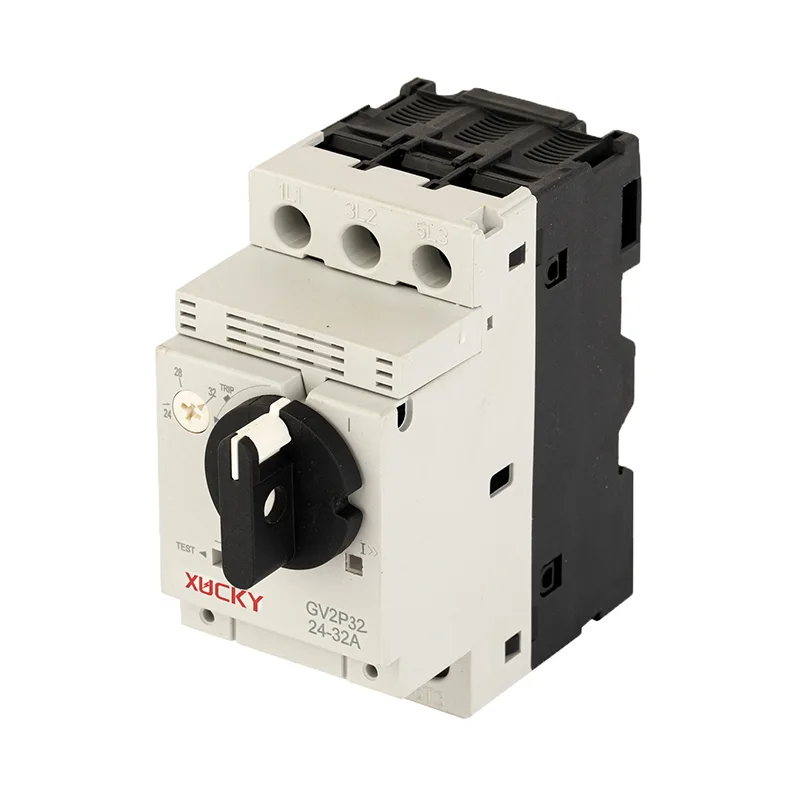

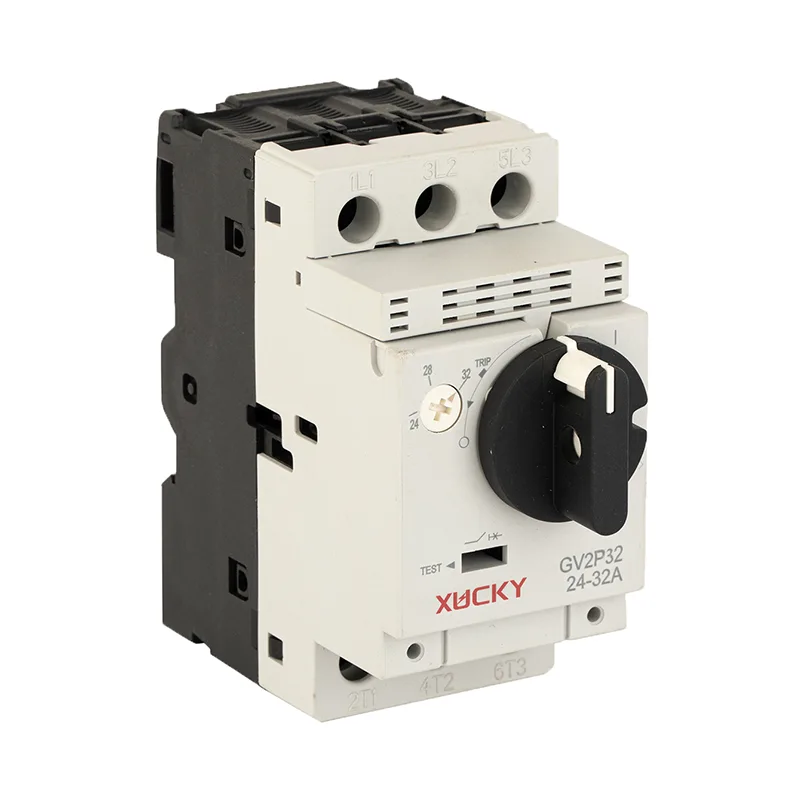

GV2P32 Series Motor Protection Circuit Breaker

As the professional manufacturer, XUCKY would like to provide you high quality GV2P32 Series Motor protection circuit breaker with knob operation, which is suitable for AC voltage to 690v, the highest current to 32A circuit, is the isolation switch, circuit breaker, thermal relay function set one circuit breaker. It has the features of isolation protection, overload protection, temperature compensation, phase break protection and short circuit protection. If you are interested in this product of XUCKY, you can contact us at any time.

Send Inquiry

Product Description

Product Application

XUCKY high quality GV2P32 Series Motor protection circuit breaker is suitable for three-phase mouse cage asynchronous motor direct start and control, distribution line protection and infrequent load conversion.

GV2P32 complies to GB/T 14048.2, GB/T 14048.4, IEC60947-2, 60947-4-1 standards.

No.	Rated current of release In A		Adjusting range of thermal element setting current A	Rated ultimate short-circuit breaking capacity Icu(kA)/ Rated operation short circuit breaking capacity Ics(kA)								Flashover distance mm
				230/240V					400/415V	500V	690V	Flashover distance mm
				Icu	Ics	Icu	Ics	Icu	Ics	Icu	Ics
1	GV2P32	0.16	0.1-0.16	100	100	100	100	100	100	100	100	50
2		0.25	-0.25	100	100	100	100	100	100	100	100
3		0.4	0.25-0.4	100	100	100	100	100	100	100	100
4		0.63	0.4-0.63	100	100	100	100	100	100	100	100
5		1	0.63-1	100	100	100	100	100	100	100	100
6		1.6	1-1.6	100	100	100	100	100	100	100	100
7		2.5	1.6-2.5	100	100	100	100	100	100	3	2
8		4	2.5-4	100	100	100	100	100	100	3	2
9		6.3	4-6.3	100	100	100	100	50	50	3	2
10		10	6-10	100	100	100	100	10	10	3	2
11		14	9-14	100	100	6	2	6	2	3	2
12		18	13-18	100	100	6	2	6	2	3	2
13		23	17-23	50	50	6	2	6	2	3	2
14		25	20-25	50	50	6	2	6	2	3	2
15		32	24-32	50	50	6	2	6	2	3	2
