GV3 Motor Protection Circuit Breaker MPCB

XUCKY’s high quality new product GV3 motor protection circuit breaker MPCB adopts a new generation of technology platform, applies automated production and testing equipment, effectively meets the actual application needs of customers, and achieves convenient use and leading quality products in the country.

GV3 Motor Protection Circuit Breaker


Product overview

XUCKY’s high quality new product GV3 Motor Protection Circuit Breaker MPCB adopts a new generation of technology platform, applies automated production and testing equipment, effectively meets the actual application needs of customers, and achieves convenient use and leading quality products in the country.


Scope of Application

The rated insulation voltage is 750V, applies for the circuit of AC 50Hz, rated current of 0.1A-80A, for protecting overload, open phase, short-circuit and infrequent start of three-phase squirrel cage induction motor. GV3 motor protection circuit breaker (MPCB Circuit Breaker) can be used for distribution circuit protection and infrequent load conversion, also for isolation.

GV3 motor protection circuit breakers (MPCB Circuit Breaker) meet the standards: IEC60947.2, GB14048.2, GB14048.4.


Xucky's GV3 motor protection circuit breakers prevent potential faults such as overload, abnormal voltage and sudden short circuit through multiple safety mechanisms, effectively avoiding operational losses caused by unexpected shutdown of production equipment. Its solid structure ensures stable operation under harsh working conditions. The fast detection function and special protection structure greatly simplify the equipment maintenance process and significantly improve the continuous operation efficiency of industrial field equipment.

GV3 Motor Protection Circuit BreakerGV3 Motor Protection Circuit BreakerGV3 Motor Protection Circuit Breaker

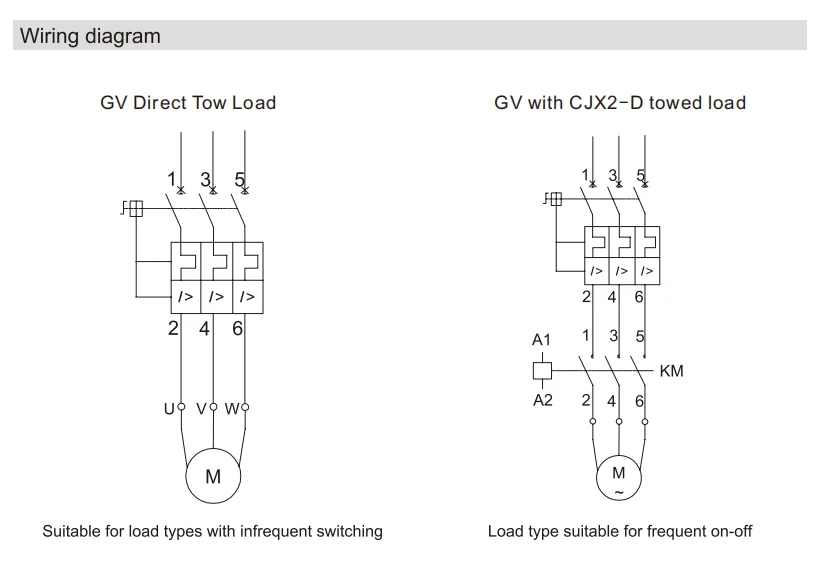

Wiring diagram

GV3 Motor Protection Circuit Breaker

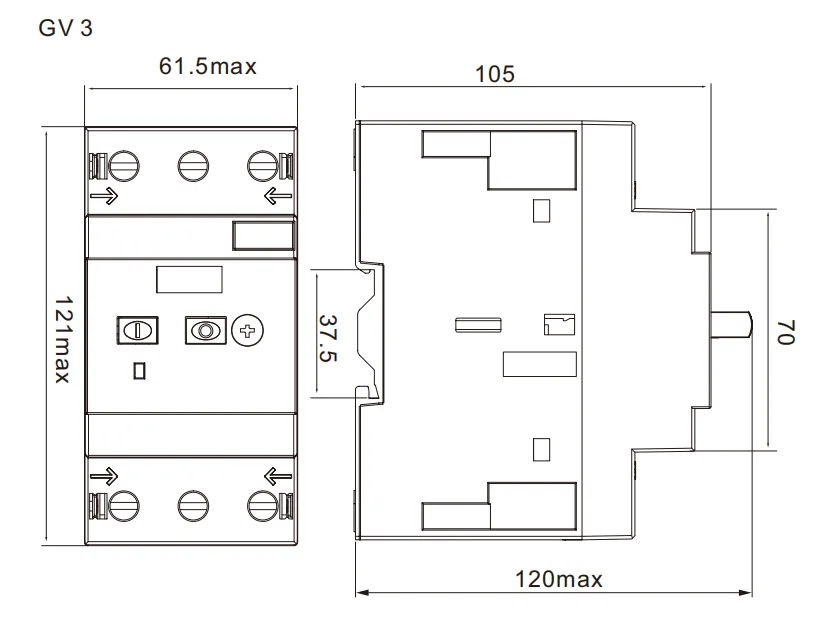

Outline and installation dimensions

GV3 Motor Protection Circuit Breaker
