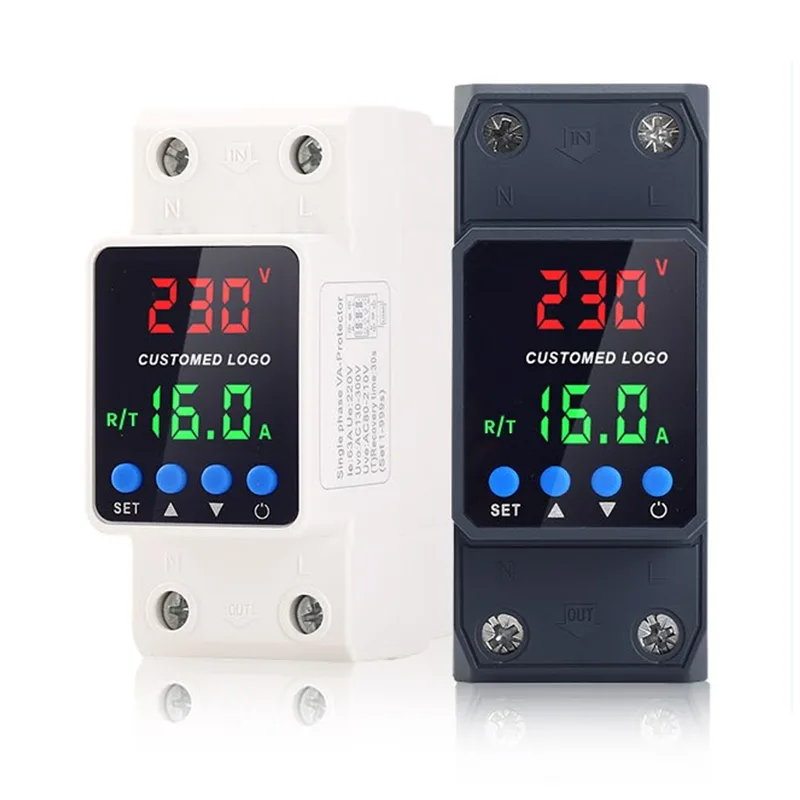

Over and Under Voltage Protector

XUCKY high-quality over and under voltage protector can monitor voltage, current, power and frequency in real time, providing all-round protection for equipment to avoid burn-in, shutdown and loss caused by voltage fluctuation. At the same time, it has the characteristics of simple installation, clear display and adjustable parameters.
Model: PN2-VA4
1. Over/Under Voltage Protection
2. Over Current Protection

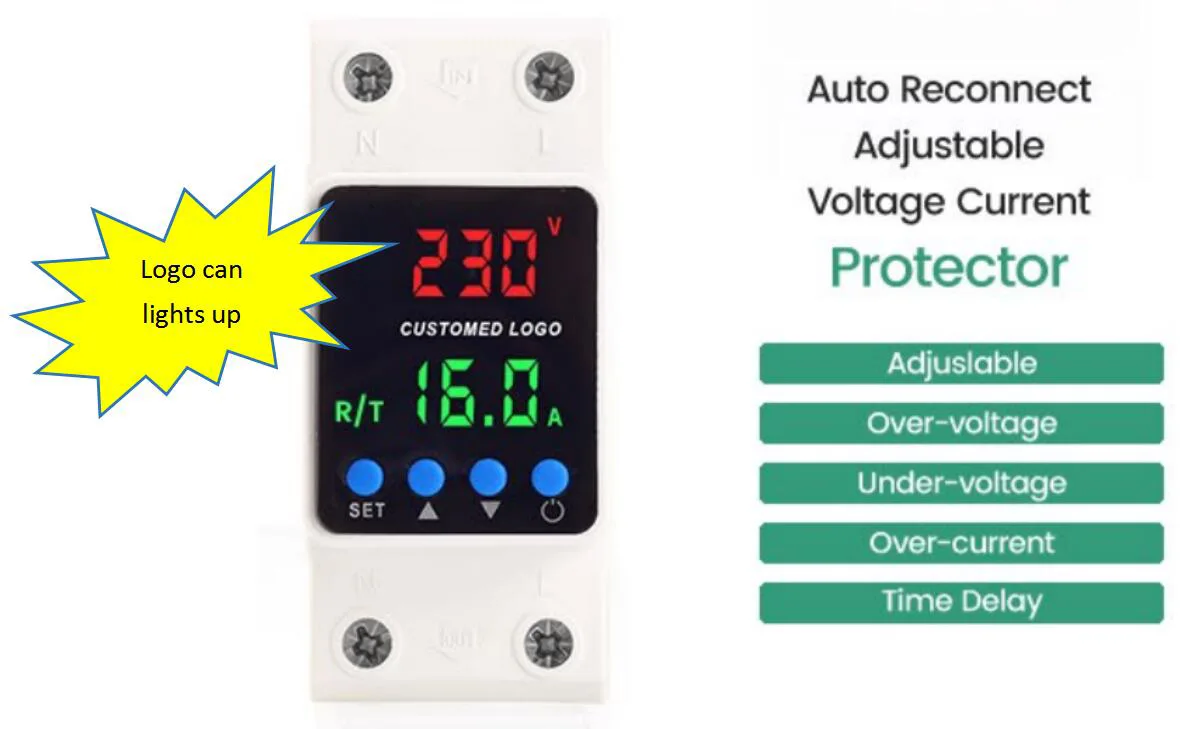

3. Large LED Digital Display
4. Adjustable Parameter Settings
5. Customizable Logo Display
6. Microcontroller-Based Intelligent Control
7. Din-Rail Mounting for Easy Installation

Send Inquiry

Product Description

XUCKY this over and under voltage protector quality assurance can be 24 hours real-time detection of circuit conditions, such as sudden voltage rise burned out the machine, or low voltage caused by equipment strikes can be detected in time.

Product Features

1. Equipped with a high-definition display screen

Our over and under voltage protector is equipped with an LED display. Not only do you know the problem when you trip, but it can display the key data such as voltage, current, power and frequency directly to you in real time and clearly.

2. Flexible and adjustable

Overvoltage value, undervoltage value and current protection value can be set manually (press and hold the setting key for 5 seconds to enter the menu). You can also set the display mode and even customize the display of your company Logo!

3. Fast response

Adopt SCM intelligent control, fast response speed, accurate judgment. Standard DIN rail mounting method is adopted, and the air switch and contactor are installed side by side, and the card is inserted in one second, saving time and effort.

Setting instructions

Long press the down "Set" keys for 5s enter the SET state, press the up and down keys to modify the over voltage, under-voltage, current, press the SET key to save.

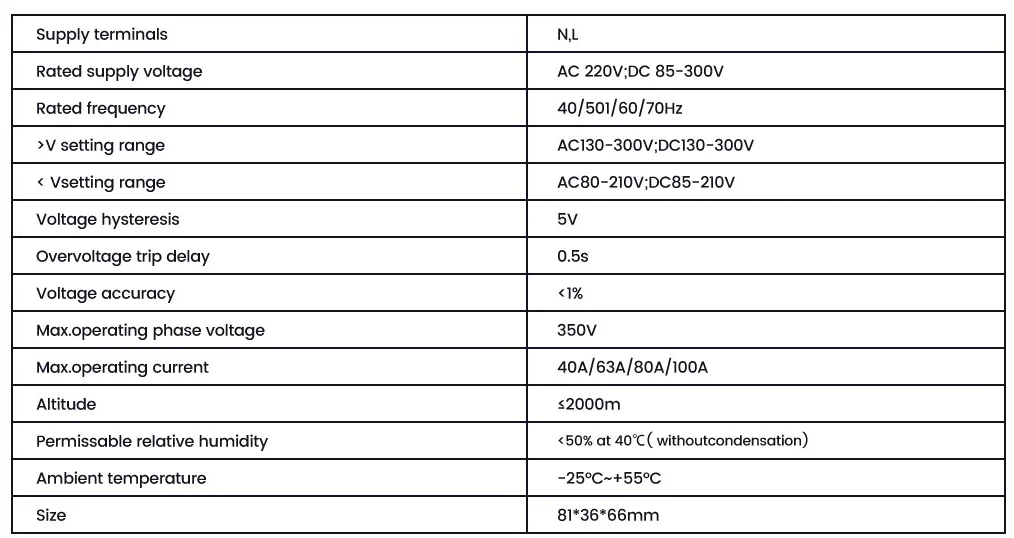

Technical data

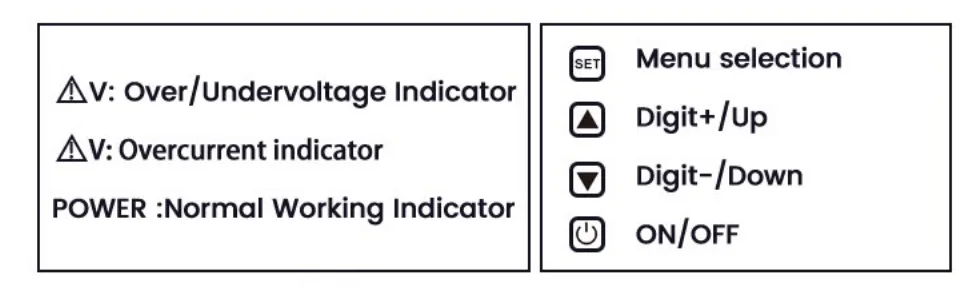

Front-face Panel

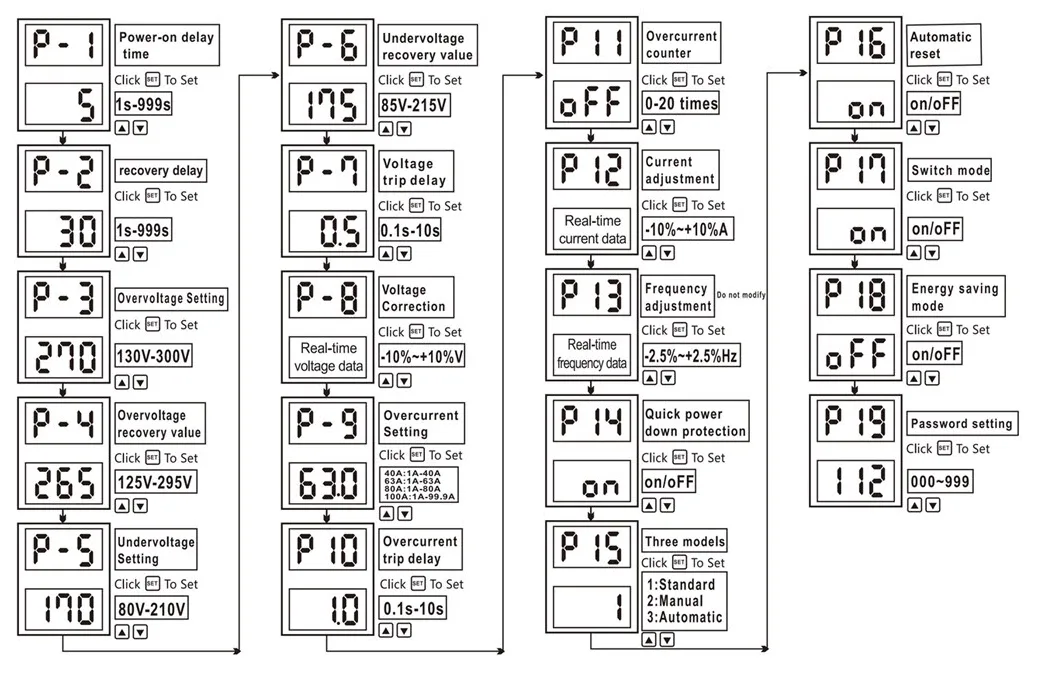

Setup menu

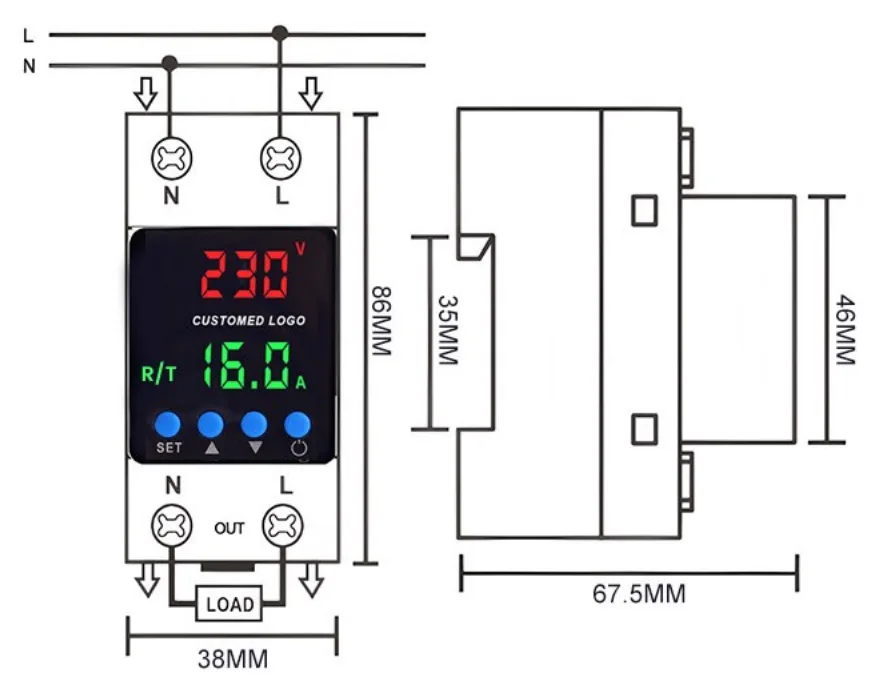

Wiring diagram/Dimensional Drawing

Notes

Under DC power supply, only voltage is displayed, not current. There are three display modes for P15 parameters: Mode 1 (Standard) displays P1-P19 parameters; Mode 2 (Manual) allows the user to manually view voltage (-U-), power (-P-), current (-A-), frequency (-H-) by pressing or button; Mode 3 (Auto) automatically displays voltage (-u-), power (-P-), current (A-), and frequency (-H-) in that order. For parameter P19 (password), the initial password is set to 112. You can reset the password after changing the lockout parameters. To unlock, the parameters must be restored to the original password (112).
