As the professional manufacturer, XUCKY would like to provide you high performance automatic transfer switch electrical appliances, which in a environment of rated working current of 16A to 630A to do switchover between the power supplies in case one of them becomes abnormal so as to ensure its continuity and reliability in power supply.

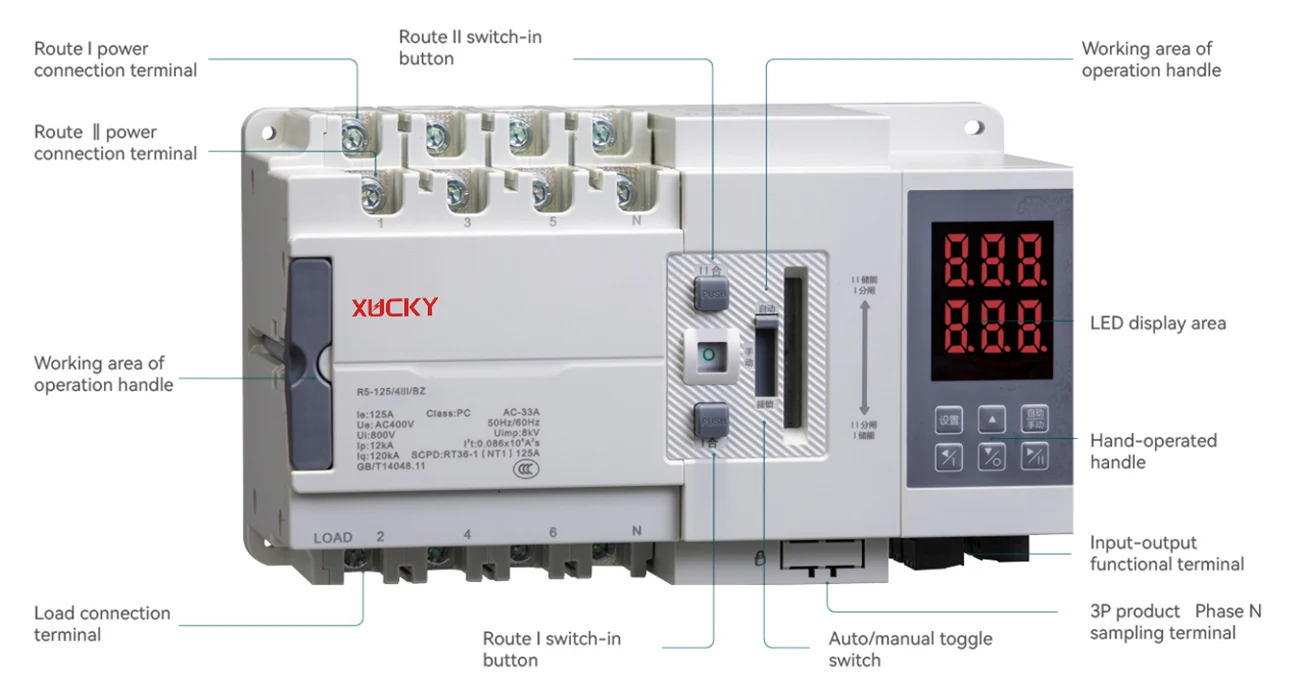

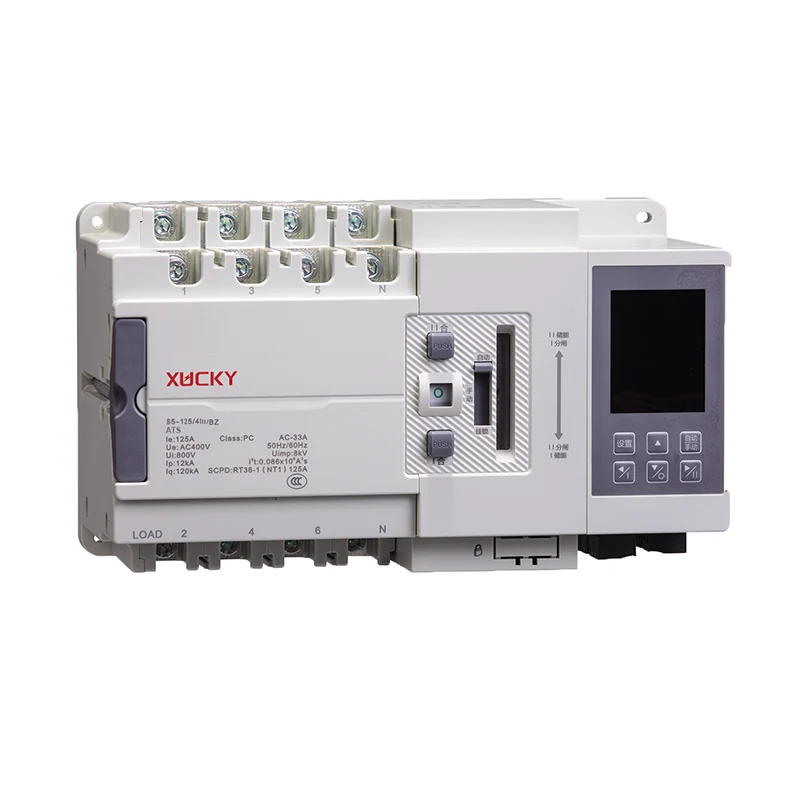

XUCKY S5 series high-performance automatic conversion switch gear (hereinafter referred to as device) is a PC grade specialized high performance automatic transfer switch electrical appliances, mainly used for the power supply system of AC 50/60Hz, rated working voltage AC220/230v, AC400/415V.
This device holds such features as a fast transfer speed, an applicable category up to AC-33A and, with circuit breakers and fuses used as SCPD, a high rated limited short-circuit current, two/three two positions with the contact, complete functions and high intelligence. Suitable for various important power supply places such as construction, industry, finance, medical, communication, data centers, airports, rail transit, sports venues, etc.
This device complies with the standard GB/T14048.11 <
The ambient air temperature -5℃ -+40℃ ,the average value over 24 hours not exceed by +35℃ ;
The altitude of the installation site not exceeded by 2000m;
At a maximum temperature of+40℃, the relative air humidity not exceeded by 50%. At lower temperatures,allowed with a higher relative humidity, such as reaching 90% at 20℃. Special measures should be taken for occasional condensation caused by temperature changes;
The pollution level comes as 3;
Transportation, storage, and installation conditions: the high performance automatic transfer switch electrical appliances must not be affected by rain or snow during transportation. The storage environment temperature of high performance automatic transfer switch electrical appliances shall be between -25℃ and+80℃, when the relative humidity is not be exceeded by 95% (at 25℃ ), and can be reached to +85℃ in case of a short period of time (not exceeding 24 hours).
