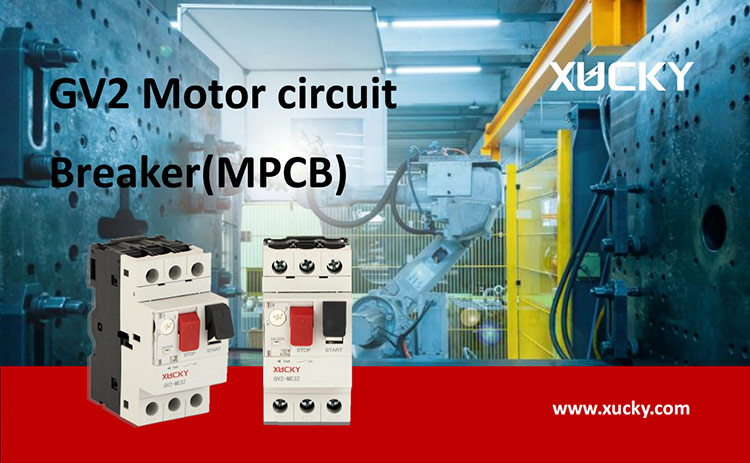

On What Devices are GV2 Motor Circuit Breaker MPCB Applied What Functions can be Achieved？

The GV2 Motor Circuit Breaker MPCB mainly serves the power supply safety of various drive equipment in industrial sites. The device effectively prevents the risk of damage to the motor due to overload or failure during operation by intelligently monitoring abnormal current changes, providing core protection for the continuous and stable operation of the production line.

1. Applications

Industrial Motors: In industrial production, it covers the motor protection needs of key machinery such as fluid conveying equipment, air circulation equipment, power compression equipment and material transmission systems. The device continuously monitors the current status and provides timely protection when the equipment is operating abnormally.

Motor Control Circuits: It is installed inside the equipment startup control system and the power distribution operation interface. This integrated design not only ensures the basic safety of the power on and off link, but also provides operators with a manual adjustment function to directly control the start and stop of the equipment, effectively improving the overall reliability of the industrial power system.

2. Functions

• Overload Protection: Safeguards motors against damage caused by prolonged excessive current draw (e.g., due to mechanical overload, locked rotor, phase imbalance) using thermal trip elements. This typically follows a Class 10 tripping characteristic for fast response.

• Short-Circuit Protection: Provides rapid magnetic trip protection against high-current faults (short circuits) within the motor circuit, minimizing damage.

• Isolation & Switching: Acts as a manual disconnect switch to safely isolate the motor from the power supply for maintenance or emergency stopping.

• Integrated Control (in starters): When used in manual motor starter assemblies (like GV2), it often combines protection with start/stop control via push buttons.

3. Key Features Enabling these Functions

• Thermal-Magnetic Trip Technology: Combines both thermal (bimetal for overload) and magnetic (solenoid for short-circuit) tripping mechanisms in a single device.
• Designed for Motor Characteristics: Its tripping curves and settings are optimized for the starting currents and operational profiles of AC motors (typically rated for AC-3 duty.

GV2 MPCB is specially designed for three-phase power equipment. It effectively prevents equipment damage caused by overload and sudden failure by real-time monitoring of power load status. Its built-in safety isolation mechanism is combined with the manual control function of the start-stop link. It ensures the stable operation of the industrial power system while taking into account the convenience of operation. It has become a key component of the power protection system of modern production lines.
