RCBO C65

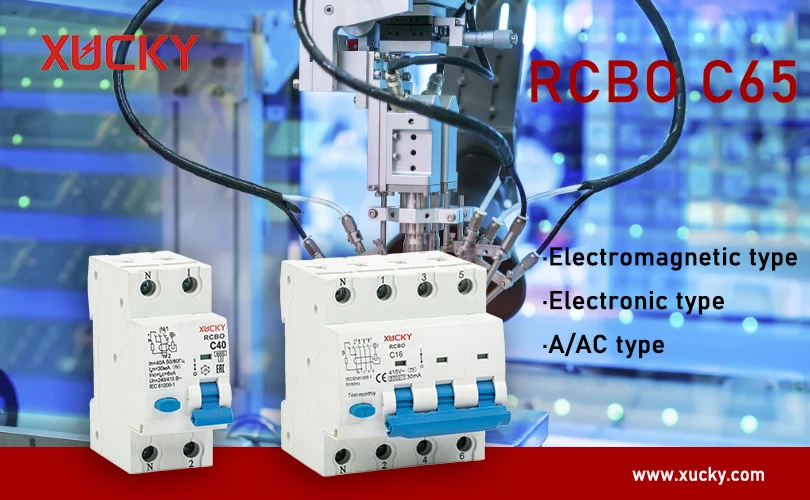

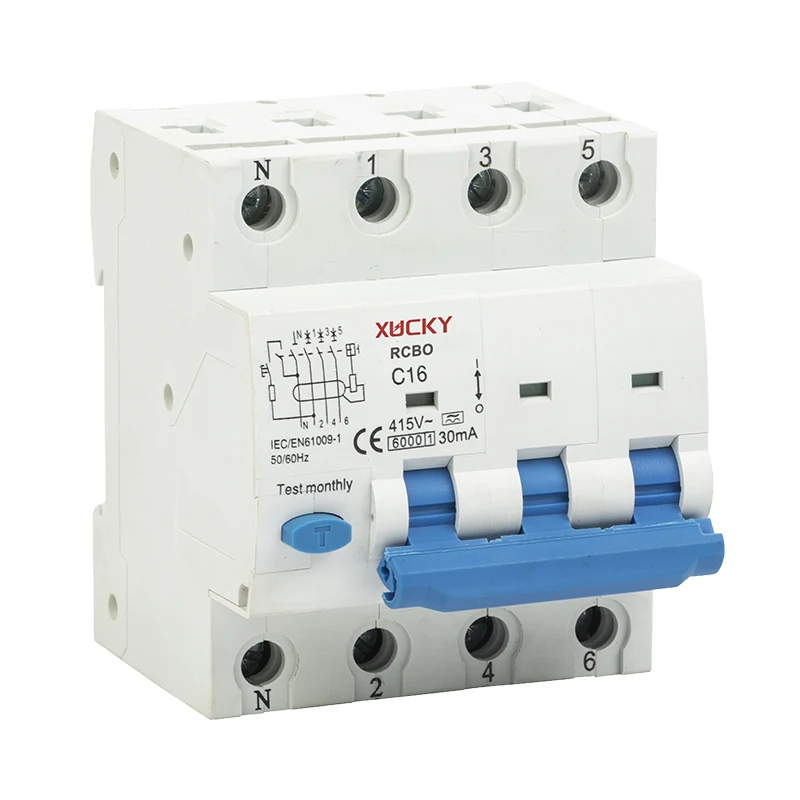

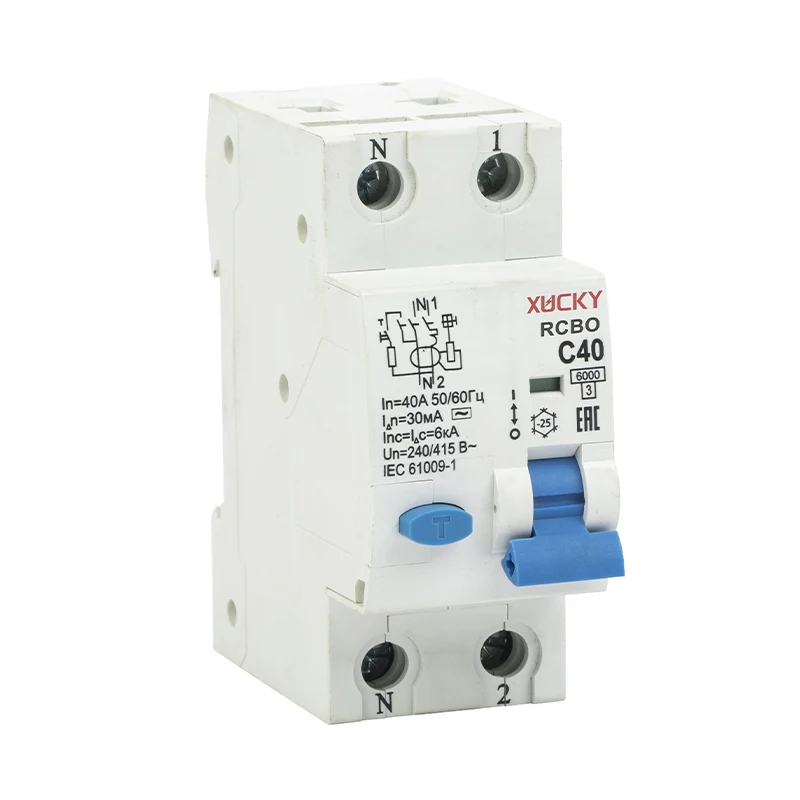

The XUCKY’s high quality RCBO C65 6kA type A 1P+N & 3P+N RCBO (Residual current operated circuit breaker with integral over-current protection ) is the perfect solution for a complete protection against over-current and earth fault currents. In two modules width (36mm) and four modules width(72mm) the series ensure,at any time and under any condition, the safety of people, facilities and related equipment

Send Inquiry

Product Description

RCBO C65

Product Advantages

● Forward and reverse wiring is permitted by XUCKY high quality RCBO C65;

● The top and bottom can be connected to a busbar with a cross section of up to 16 mm2 and to wires with a cross section of up to 25 mm2;

● Leakage indicator (blue/red sign inside the small window) makes it easy to check the source of product faults and reduces maintenance time;

● Enhanced Safety Features: This RCBO C65 provides overload and short circuit protection to ensure safe and reliable operation of circuits in domestic, commercial and residential applications.

● HIGH QUALITY CONSTRUCTION: With high quality materials and construction, this miniature circuit breaker RCBO C65 provides reliable performance and durability that meets the expectations of demanding users.

● Versatile design: The air switch is designed for both domestic and commercial use, making it a versatile solution for a wide range of electrical applications, including high traffic areas or areas with high electricity demand.

Application

Standard:Confirming to EN/IEC 61009 -1

Breaking capacity:6kA

Protection:Ground fault, overcurrent and short circuit

Rated current. In:3,6,10,16,20, 25,32, 40A

Operating. I△n:10.30. 100. 300mA

Characteristic:B.C

Rated residual current operated making &breaking capacity I△m:500A

Rated residual non -operated current l△no:0.5I△n

Rated impulse withstand voltage Uimp:4000V

Number of poles:1P+N,3P+N

Rated voltage:230VAC

Protection degree:-25℃~+40℃

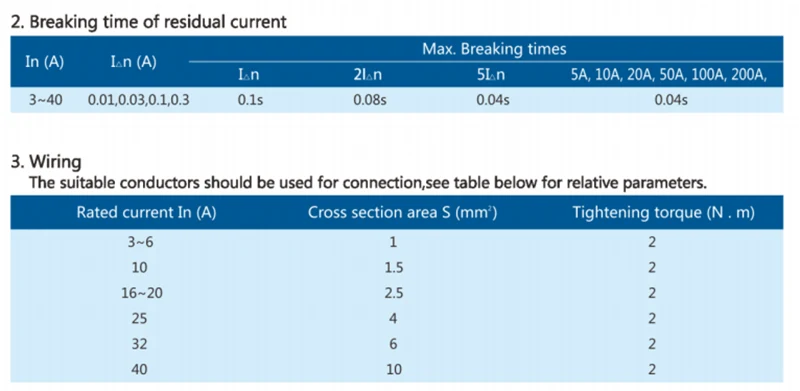

Residual current off -time≤0.1 sec.

Type of trip Ground fault:Electro-magnetic

Over current:Thermal-magnetic

Protection degree:IP20

Mount On 35mm DIN rail

Width 2 modules

Terminal Lug type and Pin type

Technical Data Sheet

	Type			2P	4P
	Standards			IEC/EN 61009-1, IEC/EN 61009-2-1;
	Certificate			CB, CE, RoHS
	Country of origin			CHINA
Electrical features	Type (wave form of the earth leakage sensed)			Type A, Type AC
	Number of poles			1P+N	3P+N
	Rated current	In	A	6, 10, 13, 16, 20, 25, 32, 40, 50, 63 A	6, 10, 13, 16, 20, 25, 32, 40 A
	Rated sensitivity	IΔn	mA	10, 30, 100, 300 mA	30, 100, 300 mA
	Rated voltage	Ue	V	220/230/240 V	380/400/415 V
	Operating time	Type A / Type AC		Instantaneous
		Type A[S]		10 ms delay
		Type A[G]		40 ms delay
	Insulation voltage	Ui	V	500V AC
	Overvoltage category			III
	Pollution degree			2
	Operating voltage of circuit test		V	187 - 264 V	230 - 485 V
	Rated frequency		Hz	50/60 Hz
	Rated breaking capacity acc. to IEC/EN 61009-1	Icn	A	10,000 A
	Rated breaking capacity acc. to IEC/EN 64947-2 (Only referring to short circuit test)	Icu	A	15,000 A
		Ics	A	7,500 A (50%Icu)
	Rated residual breaking capacity acc.to IEC/EN 61009-1	IΔm	A	3000 A
	Rated impulse withstand voltage (1.2/50)	Uimp	kV	4 kV
	Dielectric test voltage at ind. freq. for 1 min.		kV	2.5 kV (50/60Hz, 1 min.)

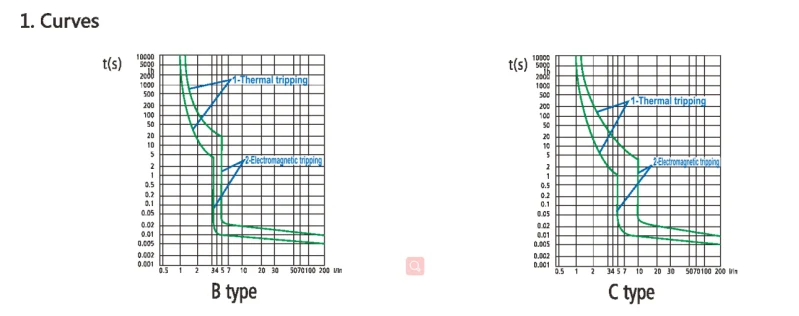

	Thermomagnetic release - characteristics			Characteristics B: 3In - 5In
				Characteristics C: 5In - 10In
	Energy limiting class acc. to EN 61009-1			3
	Surge current resistance (wave 8/20)		A	3000 A

Mechanical features	Housing			Insulation group I - II, RAL 7035
	Toggle			Insulation group II, RAL 5017
	Test button			Insulation group II, RAL 2000
	Contact position indication			Green / Red window
	Earth fault trip indication			White window
	Electrical life	Operations		4000 cycles
	Mechanical life	Operations		10000 cycles
	Protection degree acc. to EN 60529	Housing		IP4X
		Terminals		IP2X
	Shock resistance acc. to IEC/EN 60068-2-27			25g - 2 shocks - 13ms
	Vibration resistance acc. to IEC/EN 60068-2-6			0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
	Environmental conditions (damp heat) acc. to IEC/EN 60068-2-30		°C/RH	28 cycles with 55°C/90-96% and 25°C/95-100%
	Reference temperature for setting of thermal element		°C	30 °C
	Ambient temperature (with daily average ≤ +35 °C)		°C	-25… +40 °C
	Storage temperature		°C	-40… +70 °C
Installation	Terminal type			Twin-purpose terminal (lift / open-mouthed)
	Terminal size for cables	bottom / top	mm²	25/35 mm²
	Terminal size for PIN busbar	bottom / top	mm²	10/16 mm²
	Terminal size for FORK busbar	bottom / top	mm²	M6 - 10/16 mm²
	Solid /stranded wiring			1x 1mm² - 35mm² 2 x 1mm² - 16mm² *
	Flexible wires with or without ferrules			1x 1mm² - 25mm² 2 x 1mm² - 10mm² *
	Tightening torque	bottom / top		2 Nm
	Stripping length of the cable			10mm
	Mounting			On DIN rail EN 60715 (35mm) by means of mounting clip
	Mounting position			Any
	Connect from			Top/bottom terminals

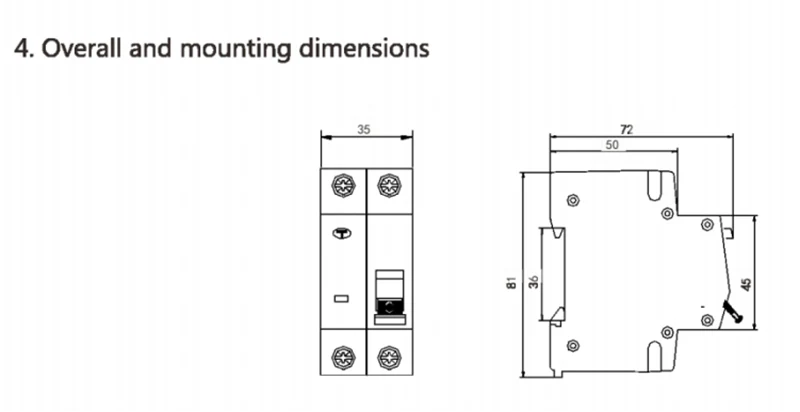

	Dimensions (H x W x D)		mm	90 x 36 x 72 mm	90 x 72 x 72 mm
	Weight		kg	0.19 kg	0.42 kg
Packing	Packing A (Individual box)	Quantity	pieces	1	1
		Dimension (HWD)	mm	904080 mm	907881 mm
		Weight	kg	0.2 kg	0.43 kg
	Packing B (*A) (Middle box)	Quantity	pieces	6	3
		Dimension (HWD)	mm	2559591.2 mm	2429889 mm
		Weight	kg	1.3 kg	1.3 kg
	Packing C (*B) (Master carton)	Quantity	pieces	60	30
		Dimension (HWD)	mm	510275200 mm	520255200 mm
		Weight	kg	14.5 kg	14.5 kg
Combination with auxiliary elements	Auxiliary contact			NA (yes)	NA (yes)
	Allarm contact			NA (yes)	NA (yes)
	Shunt trip			NA (yes)	NA (yes)
	Auxiliary contact for bottom fitting			NA (yes)	NA (yes)
	Undervoltage release			NA (yes)	NA (yes)
	Overvoltage release			NA (yes)	NA (yes)
	Motor operating device			NA (yes)	NA (yes)
