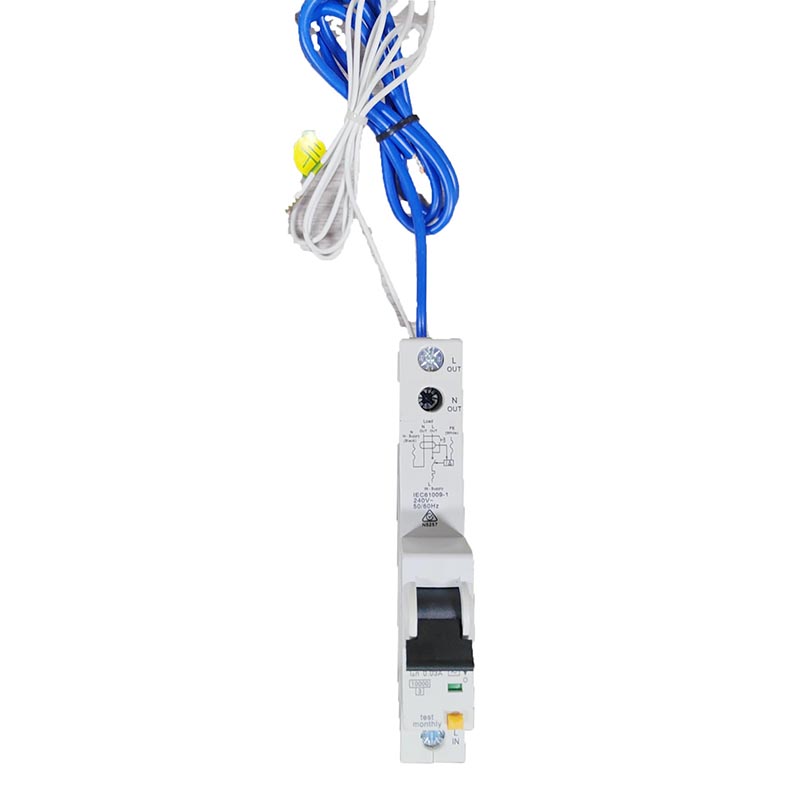

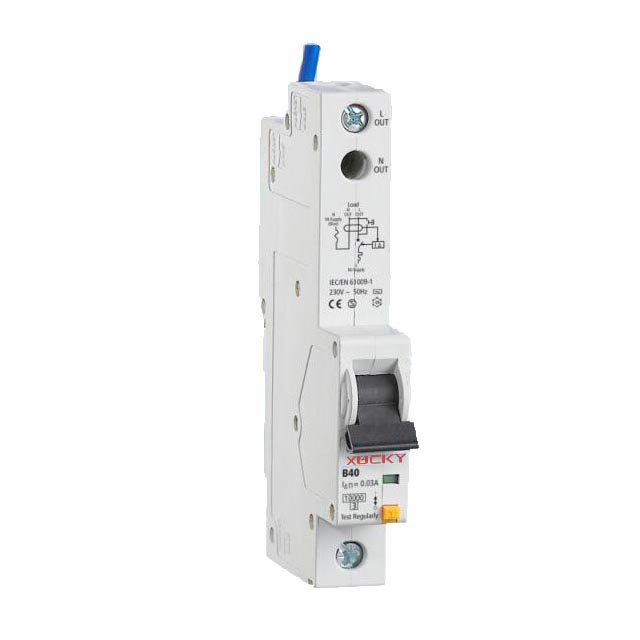

DPN RCBO

Standard

Confirming to EN / IEC61009

Breaking Capacity

6KA,10KA

Number of poles

1P+N(1 module)

Rated currents

6,10,16, 20, 25, 32, 40A

Rated voltage

230VAC

Rated Tripping Current

10mA,30mA,100mA

Residual current off time

≤ 0.1s

Characteristic

B.C

Electrical endurance

10000

Mechanical endurance

20000

Protection degree

-29C~+40℃

Connection terminal

Flexible conductor 16mm?
Rigid conductor 25mm2

Type of terminal

Lug type and Pin type

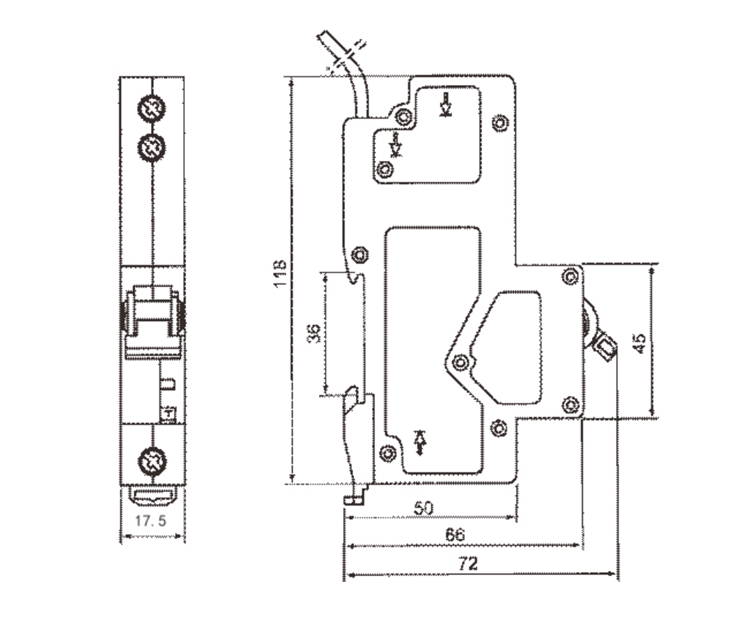

Width

17.5mm /module

In (A)

IAn(A)

Max. Breaking times

lan

21an

5lan

5A, 10A, 20A, 50A, 100A, 200A,

6~40

0.01,0.03,0.1

0.1s

0.085

0.04s

0.04s

Rated current In (A)

Cross section area S (mm2)

Tightening torque (N . m)

6

1

2

10

1.5

2

16~20

2.5

2

25

4

2

32

6

2

40

10

2
