DZ40LE RCBO

DZ40LE Residual Current Circuit Breaker improved from by XUCKY , the internal circuit board adopts integrated circuit, the performance is more superior and reliable! DZ40LE RCBO (DPN Vigi) (phase line + neutral line+ leakage + over voltage) is suitable for the single-phase residential circuit of 50Hz / 60Hz, rated voltage of 230V, rated current of 63A, to protect leakage, and protect overload and short-circuit of the civil electrical circuit.

Send Inquiry

Product Description

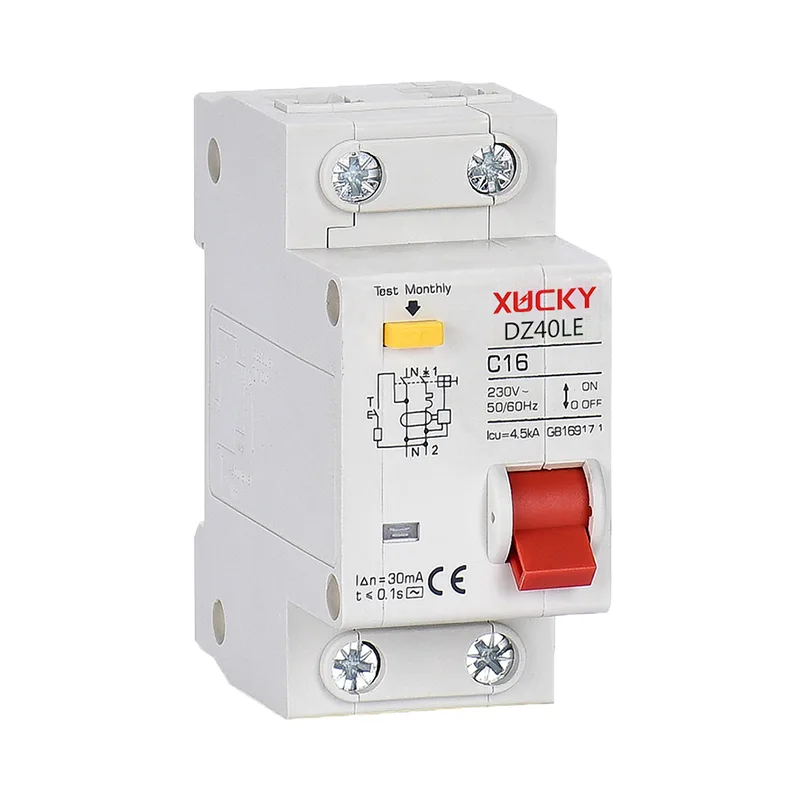

DZ40LE RCBO

SCOPE OF APPLICATION

The DZ40LE RCBO can also infrequently switch on or off electrical equipment and lighting lines under normal circumstances, especially for industrial and commercial lighting distribution system. The earth leakage switch MCB has a small size, high breaking capacity; null line and live line are cut off at the same time, and in the case of live line reversed, the electric leakage circuit breaker still able to protect against leakage. The filter in the electronic leakage over-voltage protection can prevent the misoperation tripping caused by instantaneous voltage (lighting, line interference of other equipment) and instantaneous current (such as capacitive load line). the electric leakage circuit breaker meets standards of GB16917.1 and others.

NORMAL OPERATING CONDITIONS AND INSTALLATION CONDITIONS

■Ambient air temperature: -5℃~+40℃, and the daily average temperature does not exceed +35℃.

■Altitude does not exceed 2000m.

■Atmospheric relative humidity at ambient air temperature of + 40℃ is not more than 50%, in the low temperature can have higher relative humidity. For example, + 20℃for 90% .Consider the temperature changes in product on the surface of the gel and take appropriate measures.

■Pollution level is 2.

■Electromagnetic environment is the environment B.

■ The external magnetic field in the vicinity of the circuit breaker installation site does not exceed 5 times of the geomagnetic field in any direction.

■It is installed in distribution box, power distribution cabinet or box with standard rail (TH35-7.5).

■Installation is vertical installation generally, the inclination of the installation plane and the vertical plane is not more than ± 5°, handle-up means power-on.

■Installation site without significant impact and vibration, and hazardous (explosive) media and invasion of rain and snow.

■Installation categories: Ⅱ, Ⅲ level.

TECHNICAL PARAMETERS

Model	DZ40LE
Protection Type	AC Type (RCBO)
Rated Current	6-63A
Rated operating voltage	230V /400V AC
Rated insulation voltage:	500V
Rated residual operated current	30mA
Electrical Life	2000
Mechanical Life	8000
Breaking capacity:	4.5kA
Trip indicator: DZ40LE electric leakage circuit breaker has residual current operated trip indicator window, when leakage fault trip, the window changes from colorless to red
Wiring:	6 ~ 63A, can be connected to wires of 25mm ² and below
Standard	IEC61009-1 / GB16917.1
Certification	CCC, Cb
Tripping characteristics:	C-type curve,protection of conventional load and distribution cables, instantaneous trip range (5 ~ 10) In

Current grade (A)	Screw	Rated torque(N.m)	Ultimate torque(N.m)	Standard torque(N.m)
6-40	M5	2.5	4.5	2.0

MAIN TECHNICAL PARAMETERS

Model	Pole	Rated current (A)	Rated current (A)			Tripping type
			Voltage(V)	Short-circuit breaking capacity(A)	cosφ
DZ40LE-63	1P+N	6、10、16、20、25、32、40、50、63	230	4500	0.65-0.7	C

Rated residual operating current: 30mA; Rated residual non-operating current: 15mA; Rated residual making and breaking capacity: 2000A; Leakage action time: ≤ 0.1s; Withstand impulse voltage: Uimp = 4kV; Delay action characteristics: (see the table)

Tripping type	Rated current(A)	Test current	Set time	Set time	Prospective result
C	≤63	1.13ln	Cold	t≥1h	Non tripping
	≤63	1.45ln	Hot	t＜1h	Tripping
	≤32	2.55ln	Cold	1s<t＜60s	Tripping
	≤32	2.55ln	Cold	1s<t＜120s	Tripping

INSTANTANEOUS ACTION CHARACTERISTIC

Tripping type	Tripping type(A)	Initial state	Set time	Prospective result
C	5ln	Cold	t≤0.1s	1.2
C	10ln	Cold	t≤1h	2.0

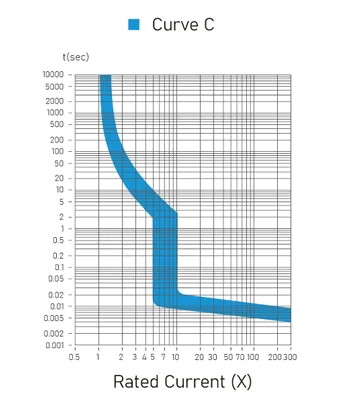

TRIPPING CHARACTERISTIC CURVE -- C TYPE

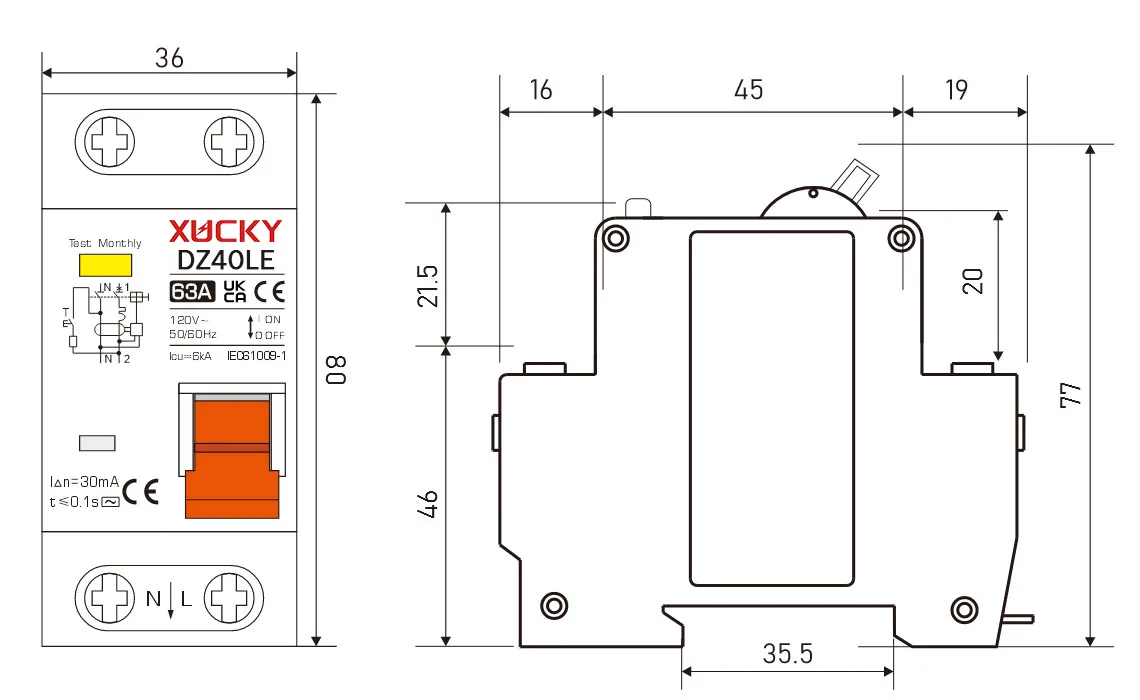

DZ40LE RCBO

STRUCTURE AND WORKING PRINCIPLE

The DZ40LE Residual Current Circuit Breaker is current action electronic leakage circuit breaker. It is an integrative miniature leakage protection circuit breaker designed for single-phase circuit, has large capacity and small size, to save resources and space for the user installation.

The electric leakage circuit breaker is mainly composed of contact, case, operating mechanism, electromagnetic system, tripping device, arc extinguishing device, zero-sequence transformer, electronic discriminating control circuit and tripping indication and other parts. The earth leakage switch has protection functions of overload, short circuit and leakage.

The working principle of the earth leakage switch

Overload protection: when the overload occurs, the bimetal promotes the lock, to make the circuit breaker trip to protect the circuit;

Short-circuit protection: When the short-circuit fault occurs, the electromagnetic coils create a strong magnetic field, the core promotes the lock quickly, to make the circuit breaker trip (cut off the power supply within 0.1s) and action protection;

Leakage protection: When leakage fault occurs in the protection circuit, current vector sum of the zero-sequence current transformer is not equal to zero, the transformer secondary output generates voltage, to make the SCR breakover, electromagnetic tripping system act, to make the trip with rod promoting circuit breaker trip, and cut off the power supply within 0.1s, which play a leakage protection.
