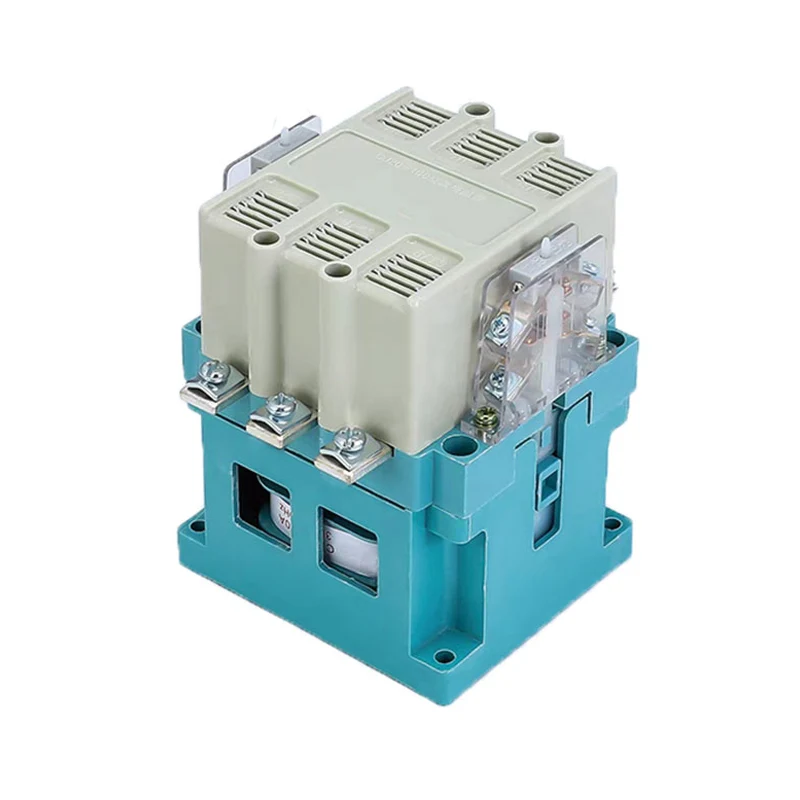

CJ20 AC Contactor

XUCKY Electric is CJ20 AC Contactor to Control Motors manufacturers and suppliers. CJ20 AC contactor (AC/DC contactor), mainly used in the circuit of AC 50Hz (or 60Hz), rated voltage to 660V, rated operating current to 630A, for long-distance making and breaking circuit, and combination with the appropriate thermal overload relay, to protect the circuit that operation may overload. AC/DC contactor meets standards of IEC60947-4-1, GB14048.4.

Send Inquiry

Product Description

Scope of Application

CJ20 AC contactor ( AC/DC contactor), mainly used in the circuit of AC 50Hz (or 60Hz), rated voltage to 660V, rated operating current to 630A, for long-distance making and breaking circuit, and combination with the appropriate thermal overload relay, to protect the circuit that operation may overload. AC/DC contactor meets standards of IEC60947-4-1, GB14048.4.

Model and meaning

Normal operating conditions and installation conditions

Ambient air temperature: -5℃~+40℃, the average does not exceed +35℃ within 24 hours.

Altitude: not more than 2000m.

Atmospheric conditions: the maximum temperature is +40℃, the relative humidity is not more than 50%; at lower temperatures can allow a higher relative humidity, for example, +20℃ up to 90%, special measures should be taken for condensation produced occasionally due to temperature changes.

Pollution level: 3.

Installation category: Ⅲ.

Installation conditions: The inclination of the installation surface and the vertical plane is not more than ±5°.

Shock Vibration: The AC/DC contactor should be installed and used in the place without significant shaking, shock and vibration.

Main parameters and technical performance

Coil rated control supply voltage Us is: AC 50Hz, 110V, 127V, 220V, 380V; DC: 110V, 220V

Mechanical life: CJ20-10, 16, 25, 40, 63, 100, 160 for the 10 million times; CJ20-250, 400, 630 for the 6 million times.

Saving rate of energy-saving AC/DC contact(see Table 1).

Table 1

Model	CJ20-63~160JZ	CJ20-630J	CJ20-250~630JZ
Saving rate %	90	95	95

Main parameters and technical performance of contactor (see Table 2).

Table 2

Model	Rated insulation voltage Ui(V)	Conventional free air heating current Ith(A)	Maximum power of three phase squirrel cage motor controlled by AC-3 kW			Number of operating cycles per hour times/h(AC-3)	AC-3 Electrical life (10000 times)	Coil power Start / Hold VA/VA	Selection of fuses (SCPD) models
Model	Rated insulation voltage Ui(V)	Conventional free air heating current Ith(A)	220V	380V	660V	Number of operating cycles per hour times/h(AC-3)	AC-3 Electrical life (10000 times)	Coil power Start / Hold VA/VA	Selection of fuses (SCPD) models
CJ20-10	690	10	2.2	4	4	1200	100	65/9	RT16-20
CJ20-16		16	4.5	7.5	11			62/9	RT16-32
CJ20-25		25	5.5	11	13			93/14	RT16-50
CJ20-40		32	11	22	22			175/19	RT16-80
CJ20-63		40	18	30	35		120	480/57	RT16-160
CJ20-100		63	28	50	50			570/61	RT16-250
CJ20-160		100	48	85	85			855/85.5	RT16-315
CJ20-250		250	80	132	-	600	60	1710/152	RT16-400
CJ20-400		400	115	200	200			1710/250	RT16-500
CJ20-630		630	175	300	-			3578/91.2	RT16-630

Contact type, quantity and basic parameters of auxiliary contacts (see Table 3)

Table 3

Model	Conventional free air heating current(A)	Rated insulation voltage(V)	Rated operating voltage(V)		Rated operating current(A)		Rated control capacity		Types and number of contact
			AC	DC	AC	DC	AC	DC
CJ20-10~40	10	690	380	220	0.26	0.14	AC-15 100VA	DC-13 30W	Two normally open, two normally closed
			220	110	0.45	0.27
CJ20-63~160	10		380	220	0.80	0.27	AC-15 300VA	DC-13 60W	Two normally open, two normally closed
			220	110	1.4	0.6
CJ20-250~630	10		380	220	1.3	0.27	AC-15 500VA	DC-13 60W	normally open 4 3 2
			220	110	2.3	0.6			normally closed 2 3 4

Wiring diagram

Structural features

Contact system of AC/DC contactor for the arrangement of direct-acting and double-break, auxiliary contact of CJ20-40A and more as separate component installed in the both sides of the main contact, is separation in the electrical.

CJ20-10~25A AC/DC contactors can be installed with screws or 35mm standard card rails.

CJ20-10~16A AC/DC contactors use a double breakpoint simple opening arc chamber, and the rest use multi-longitudinal seam arcing cover or arcing cover enclosures, with high breaking capacity, high reliability.

CJ20-63~630 energy-saving AC/DC contactors have DC general power-saving module, not only can derive muffler energy-saving products or DC operation products, and do not take up auxiliary contacts, thus greatly improving product reliability and life.
