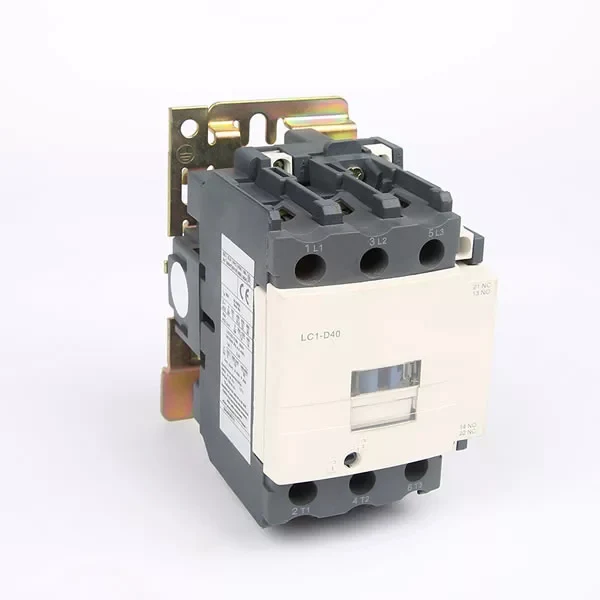

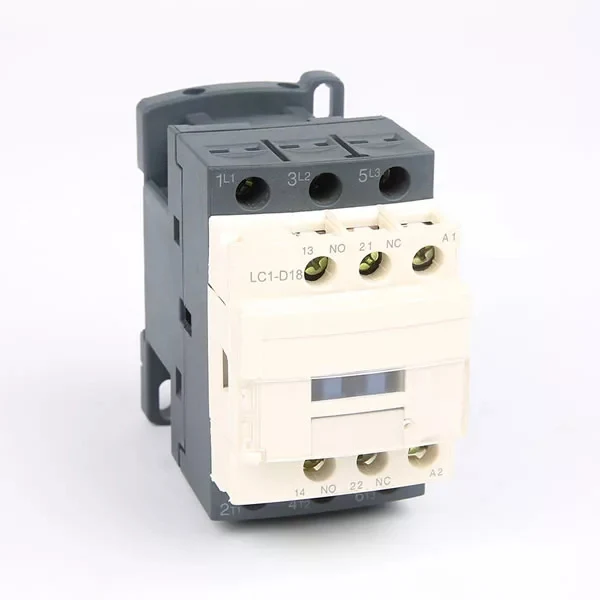

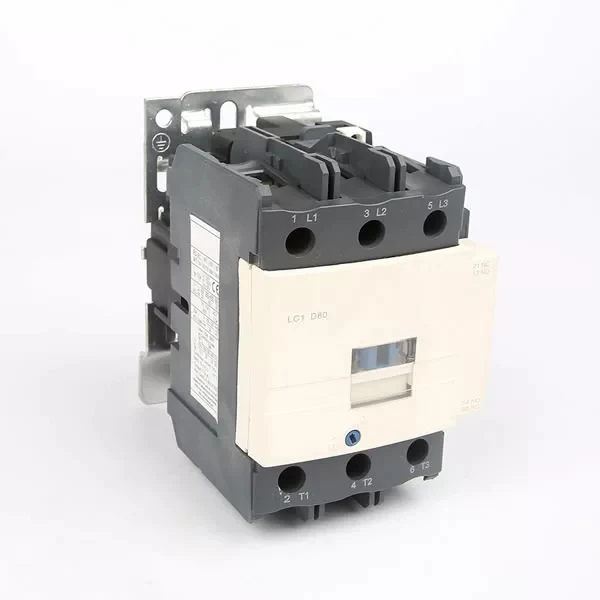

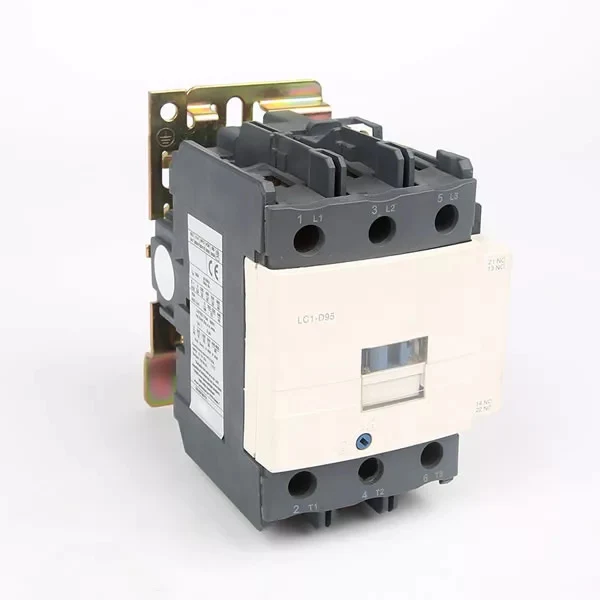

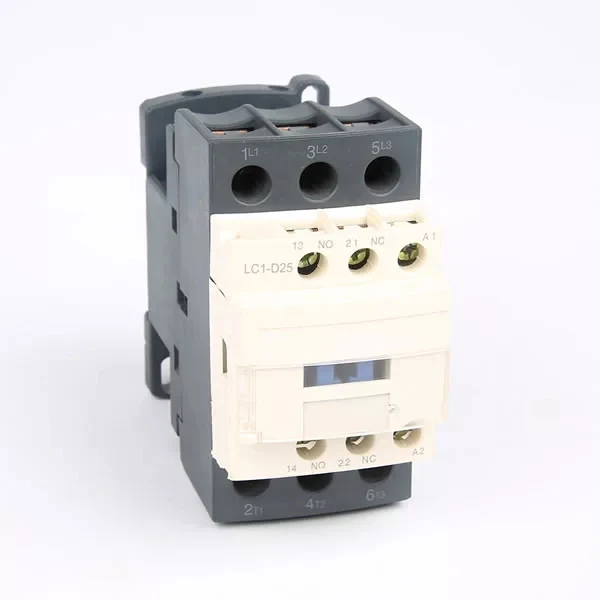

LC1-D AC Contactor

XUCKY Electric is large-scale LC1-D AC Contactor manufacturer and supplier in China. For many years, we have been specializing in Modular Electrical Terminal Equipment, our products have good price advantage and cover most of the European and American markets. We are looking forward to being your long-term partner in China.

Send Inquiry

Product Description

GENERAL of LC1-D AC Contactor

●1.1 Certificates: CE;

●1.2 Electric ratings: AC50/60Hz, 690V, up to 620A ;

●1.3 Application: remote making & breaking circuits, protect circuit from over-load when assembling with thermal over-load relay, frequent start-up and control of AC motor;

●1.4 Utilization category: AC-3, AC-4;

●1.5 Altitude:≤2000m;

●1.6 Ambient temperature: -5℃~ +40℃;

●1.7 Mounting category: Ⅲ;

●1.8 Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed 士5° ;

●1.9 Standard: IEC/EN 60947-4-1.

TECHNICAL DATA of LC1-D AC Contactor

Items		Model	LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32
Pole			3/4	3/4	3/4	3/4	3/4
Auxiliary Contact			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Rated conventional heating current (A) AC-1			20	20	30	40	50
Rated operational current (A)	380/400V	AC-1 AC-4	9	12	18	25	32
	380/400V	AC-1 AC-4	3.5	5	7.7	8.5	12
	660/690V	AC-3 AC-4	6.6	8.9	12	18	21
	660/690V	AC-3 AC-4	1.5	2	3.8	4.4	7.5
Rated insulation voltage (V AC)			690	690	690	690	690
Power of controlled 3-phase cage motor (AC-3)	kW	220/230V AC 380/415V AC 660/690V AC	2.2	3	4	5.5	7.5
			4	5.5	7.5	11	15
			5.5	7.5	10	15	18.5
AC coil(V)			24，36，48，110，127，220，240，380，415，440，480，500，600
DC coil(V)			24，36，48，110，220

Items		Model	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Pole			3/4	3/4	3/4	3/4	3/4
Auxilirary Circuit Cat:AC-15,Ue=4 15V le=0.95A Ith=10A			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Rated conventional heating current (A) AC-1			60	80	80	110	110
Rated operational current (A)	380/400V	AC-3 AC-4	40	50	65	80	95
	380/400V	AC-3 AC-4	18.5	24	28	37	44
	660/690V	AC-3 AC-4	34	39	42	49	49
	660/690V	AC-3 AC-4	9	12	14	17.3	21.3
Rated insulation voltage (V AC)			690	690	690	690	690
Power of controlled 3-phase cage motor (AC-3)	KW	220/230V AC 380/415V AC 660/690V AC	11	15	18.5	22	25
			18.5	22	30	37	45
			30	37	37	45	45
AC coil(V)			24，36，48，110，127，220，240，380，415，440，480，500，600
DC coil(V)			24，36，48，110，220

Items		Model	LC1-D115	LC1-D150	LC1-D170	LC1-D205	LC1-D245
Pole			3	3	3	3/4	3/4
Rated conventional heating current (A) AC-1			200	200	200	275	280
Rated operational current (A)	380/400V	AC-3 AC-4	115	150	170	205	245
	380/400V	AC-3 AC-4	50	65	70	75	85
	660/690V	AC-3 AC-4	70	90	100	108	115
	660/690V	AC-3 AC-4	25	32	35	38	40
Rated insulation voltage (V AC)			690	690	690	690	690
Power of controlled 3-phase cage motor (AC-3)	kW	380/415V AC 660/690V AC	55	75	75	90	110
Power of controlled 3-phase cage motor (AC-3)	kW	380/415V AC 660/690V AC	80	100	100	110	140
AC coil(V)			110，127，220，240，380，415，440，480，500，600

Items		Model	LC1-D300	LC1-D410	LC1-D475	LC1-D620
Pole			3/4	3/4	3/4	3/4
Rated conventional heating current (A) AC-1			360	430	580	850
Rated operational current (A)	380/400V	AC-3 AC-4	300	410	475	620
	380/400V	AC-3 AC-4	124	150	185	188
	660/690V	AC-3 AC-4	190	235	290	360
	660/690V	AC-3 AC-4	60	72	85	170
Rated insulation voltage (V AC)			690	690	690	690
Power of controlled 3-phase cage motor (AC-3)	kW	380/415V AC 660/690V AC	160	200	250	335
Power of controlled 3-phase cage motor (AC-3)	kW	380/415V AC 660/690V AC	220	280	330	450
AC coil(V)			110, 127，220，240，380，415，440，480，500，600
