The rapid growth of solar PV projects across the Middle East, Southeast Asia, and global renewable markets has raised the demand for reliable overcurrent and short-circuit protection. Unlike regular AC fuses, DC PV fuses must handle unidirectional current, persistent electric arcs, high temperatures, and reverse current risks in solar arrays. Using improper protection can lead to equipment burnout, system downtime, or even fire hazards.
In this guide, we explain what DC fuses & PV fuse holders do, why they are irreplaceable in solar systems, key standards you must follow, and how XUCKY DC fuse solutions support your PV projects in Saudi Arabia, UAE, Egypt, and the Middle East.

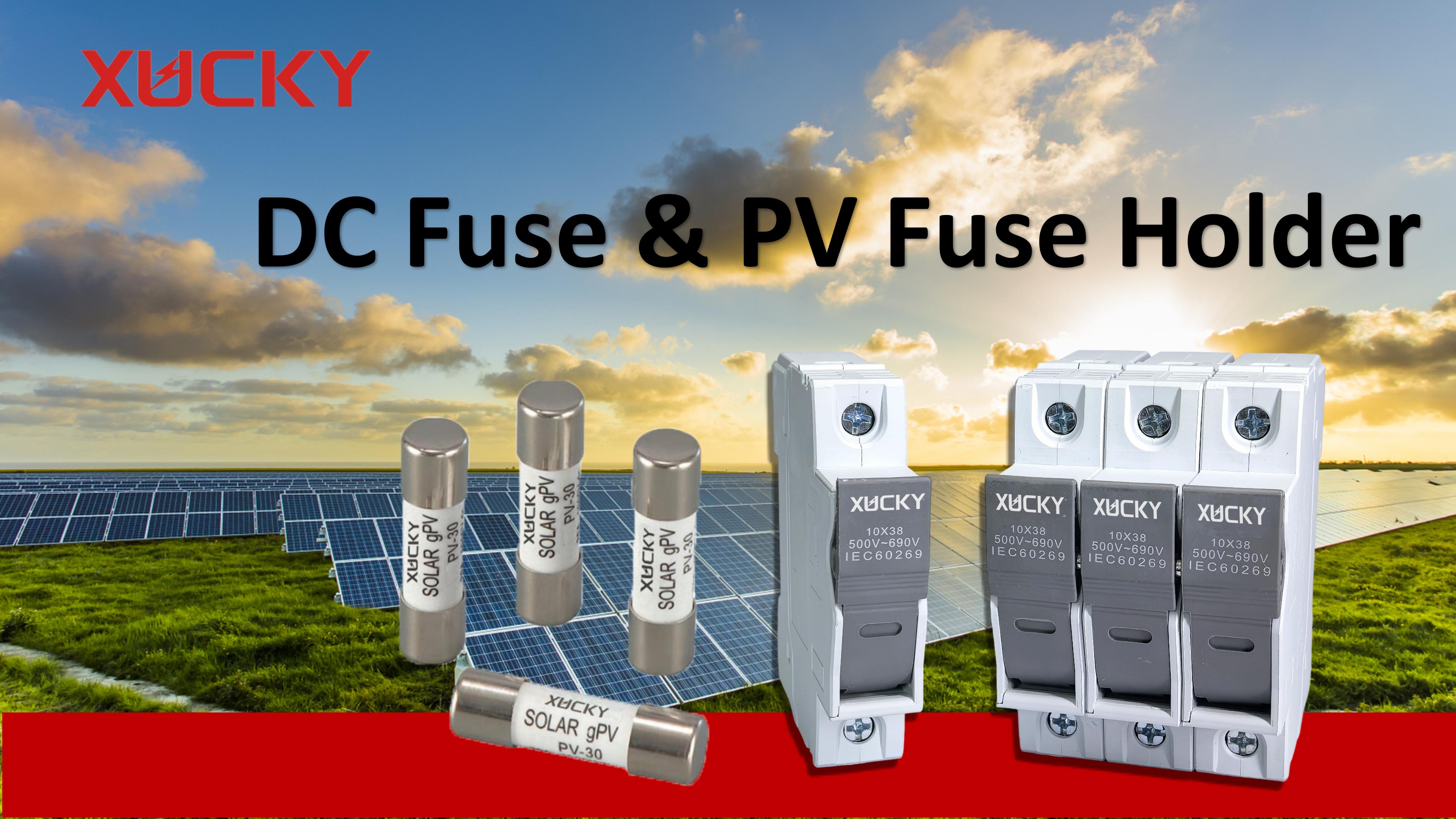

A DC fuse link is a specialized sacrificial protective component designed exclusively for direct current circuits in photovoltaic systems. It quickly disconnects the circuit under overload or short circuit to protect PV modules, combiner boxes, inverters, and cables.
A PV fuse holder (also called PV fuse base) provides stable installation, electrical connection, and safe replacement for DC fuse links. Most industrial PV fuse holders use 35mm DIN rail mounting for easy installation in combiner boxes and control panels.
Together, they form a complete protection system for solar strings and arrays.
Many buyers make the mistake of using AC fuses in DC PV systems. Here’s why that’s dangerous:
· DC current has no natural zero-crossing point, making arcs much harder to extinguish.
· PV systems face reverse current from parallel strings during faults, which AC fuses cannot handle safely.
· Outdoor PV systems require components that withstand extreme temperature cycles (common in Middle East deserts).
· DC fuses must meet IEC60269-6 (gPV), the specific standard for photovoltaic applications.
Only certified 1000VDC PV fuses can guarantee safety and long-term stability.
For global solar projects—especially in Saudi Arabia, UAE, Egypt, and the Middle East—compliance is mandatory for customs clearance, project inspection, and system safety.
XUCKY DC fuse products fully comply with:
· IEC60269-1: General requirements for low-voltage fuses
· IEC60269-2: Supplementary requirements for industrial fuses
· IEC60269-6: Specific standard for gPV photovoltaic fuses
· IEC 60947-3: For fuse-switch combinations and bases
These certifications ensure:
· Stable performance under high temperature
· Safe arc extinguishing up to 1000VDC
· Breaking capacity up to 20kA
· Compatibility with global PV system design
XUCKY 1000VDC DC fuse solutions are widely used in:
· Solar PV combiner boxes
· PV string and module protection
· In-line photovoltaic system protection
· Solar inverter DC side protection
· Industrial DC power distribution systems
· Large-scale solar power stations in Middle East, Africa, Southeast Asia
Our products perform reliably even in high-temperature desert environments, making them a top choice for Gulf solar projects.
| Model | Fuse Size | Poles | Rated Voltage | Rated Current |
| PV-32 Base | 10×38mm | 1P/2P/3P/4P | DC 1000V | 32A |
| PV-63 Base | 14×51mm | 1P/2P/3P/4P | DC 1000V | 63A |
| PV-125 Base | 22×58mm | 1P/2P/3P/4P | DC 1000V | 125A |
| Model | Rated Voltage | Current Range | Breaking Capacity |
| ZH-10PV | DC 1000V | 2A–32A | 20kA |
| ZH-14PV | DC 1000V | 15A–50A | 20kA |
| ZH-22PV | DC 1000V | 40A–50A | 20kA |
All models support DIN rail mounting, feature finger-safe design, and allow fast fuse replacement to reduce maintenance downtime.
· 1000VDC rating matches Gulf region PV system standards
· Excellent high-temperature resistance for desert climates
· Full IEC certification supports SASO, local customs, and project inspections
· 20kA breaking capacity safely handles extreme fault currents
· Ceramic body with superior insulation and heat dissipation
· Stable performance under frequent temperature cycling
· 35mm DIN rail mounting for quick assembly
· Compact structure saves space in combiner boxes
· Visible indication for quick fault identification
· Direct from Wenzhou XUCKY Electric (XUCKY)
· Low MOQ, fast lead time, stable bulk supply
· OEM/ODM available for project branding
Follow these 3 steps to choose correctly:
1. Confirm system voltage: Use 1000VDC fuse for most global PV systems
2. Calculate rated current: Match PV string short-circuit current (Isc) with standard fuse ratings
3. Match fuse size & holder: Use 10×38mm, 14×51mm, or 22×58mm combinations for compatibility
If you need support, XUCKY provides free technical selection for projects in Saudi Arabia, UAE, Egypt, and the Middle East.
· 10+ years exporting electrical & solar components
· Stable shipments to Middle East, Africa, Southeast Asia
· Full IEC, CE, RoHS certification
· Professional support for PV combiner box protection
· Flexible MOQ & on-time delivery for large projects
Whether you are an installer, distributor, EPC, or system integrator, XUCKY provides safe, economical, and reliable DC fuse link & PV fuse holder solutions for your solar PV projects.
