XUCKY Fuse Link and Fuse Holder are essential low voltage protection components designed for industrial, commercial, and residential electrical systems. Manufactured by Wenzhou XUCKY Electric Co., Ltd., our fuse products comply with IEC 60269 international standards, featuring high breaking capacity, stable performance, and long service life. As a professional fuse supplier from China, XUCKY provides reliable fuse solutions for customers worldwide, especially for the Middle East market including Saudi Arabia, UAE, and Egypt.

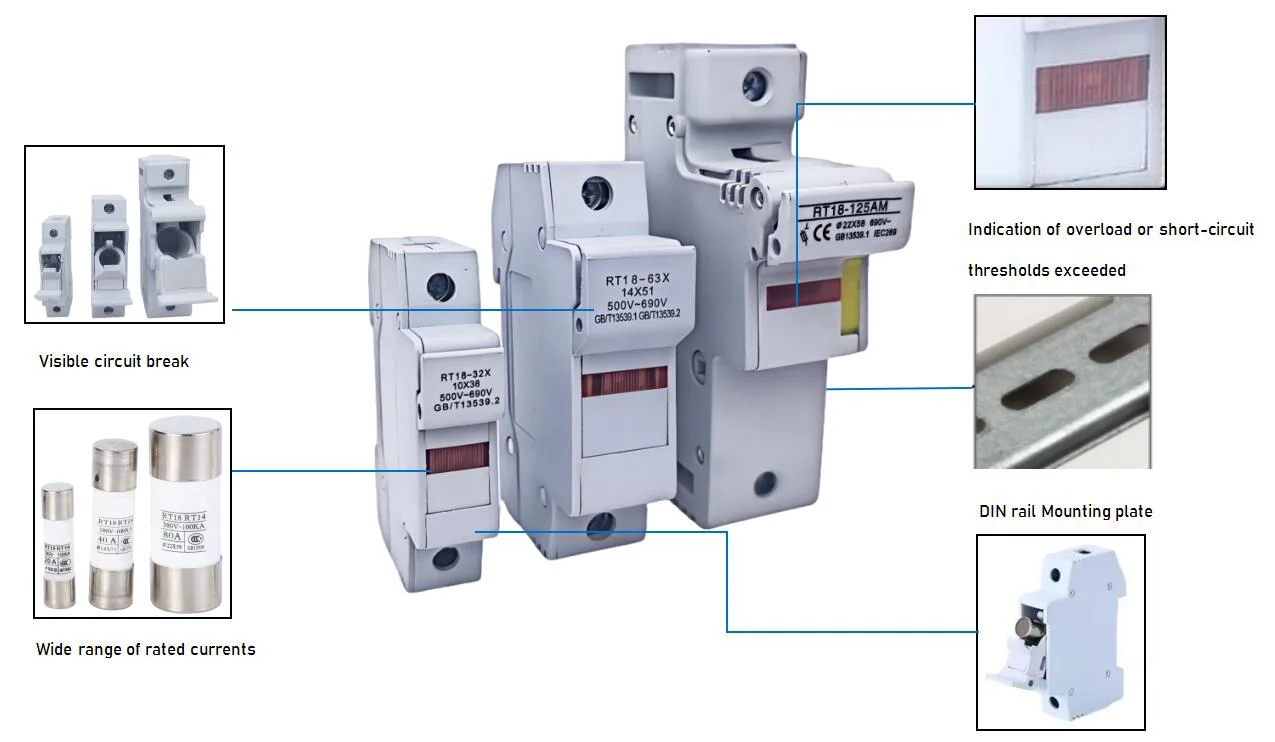

Fuse holder is designed for fuse link installation and circuit protection against short circuit and overload.The fuse link is a part of the fuse holder with a fuse and is replaced after tripping.If overload or short-circuit currents exceed thresholds,the fuse link blows out and the the LED on the fuse holder lights up.
Fuse links are used to protect cable lines,household appliances and industrial equipment.Copper and aluminum wire connections are supported.
Fuse links and fuse holder are designed to protect cable lines from overload and short-circuit
current:
household appliances;
Industrial equipment.
• Industrial control panels & distribution boards
• Power distribution systems in factories & buildings
• Solar PV systems (DC & AC protection)
• Motor control centers (MCC)
• HVAC & electrical equipment
• Renewable energy projects in Middle East
• Commercial & residential electrical installations
Full range protection
Meets IEC standards for global acceptance
Standardized cylindrical construction
Low power dissipation performance for lower temperature rise
Easy installation
IEC 60269-1 / -2 certified, CE & RoHS compliant
High-grade ceramic body with excellent insulation and heat resistance
Nickel-plated brass end caps for low contact resistance
High breaking capacity up to 120kA (HRC type)
Available in gG (general purpose) and aM (motor protection) characteristics
DIN rail mountable fuse holder with finger-safe design
Optional blown fuse indicator for easy maintenance
Wide range of ratings: 0.5A ~ 630A, 500V / 690V AC
Cost-effective price, direct from XUCKY factory in Wenzhou, China
|
Parameters |
Size |
||
|
Fuse Holder |
10×38 |
14×51 |
22×58 |
|
Rated current at 690 V AC In, A |
0,5; 1; 2; 4; 6; 8; 10 |
2; 4; 6; 8; 10; 16; 20; 25 |
2; 4; 6; 8; 10; 16; 20; 25; 32; 40; 50 |
|
Weight, g |
50 |
83 |
170 |
|
Mechanical endurance, O-C cycles |
2000 |
2000 |
1600 |
|
Degree of protection: IEC 60529 |
IP20 |
IP20 |
IP20 |
|
Operating temperature, °C |
from -10 to +55 |
from -10 to +55 |
from -10 to +55 |
|
Cross-section of connected wires, mm² |
From 1 to 25 |
From 1 to 25 |
max. 50 |
|
Tightening torque, N·m |
2,5 |
2,5 |
2,5 |
|
Cylindrical fuse links |
|||
|
Rated current In, A |
0,5; 1; 2; 4; 6; 8; 10; 16; 20; 25; 32 |
2; 4; 6; 10; 16; 20; 25; 32; 40; 50; 63 |
2; 4; 6; 8; 10; 16; 20; 25; 32; 40; 50; 63; 80; 100; 125 |
|
CFL type |
gG |
gG |
gG |
|
Weight, g |
7,7 |
20,5 |
58 |
|
Rated breaking capacity Ics, kA |
50 |
50 |
50 |
|
Degree of protection: IEC 60529 |
IP20 |
IP20 |
IP20 |
|
Operating temperature, °C |
from -10 to +55 |
from -10 to +55 |
from -10 to +55 |

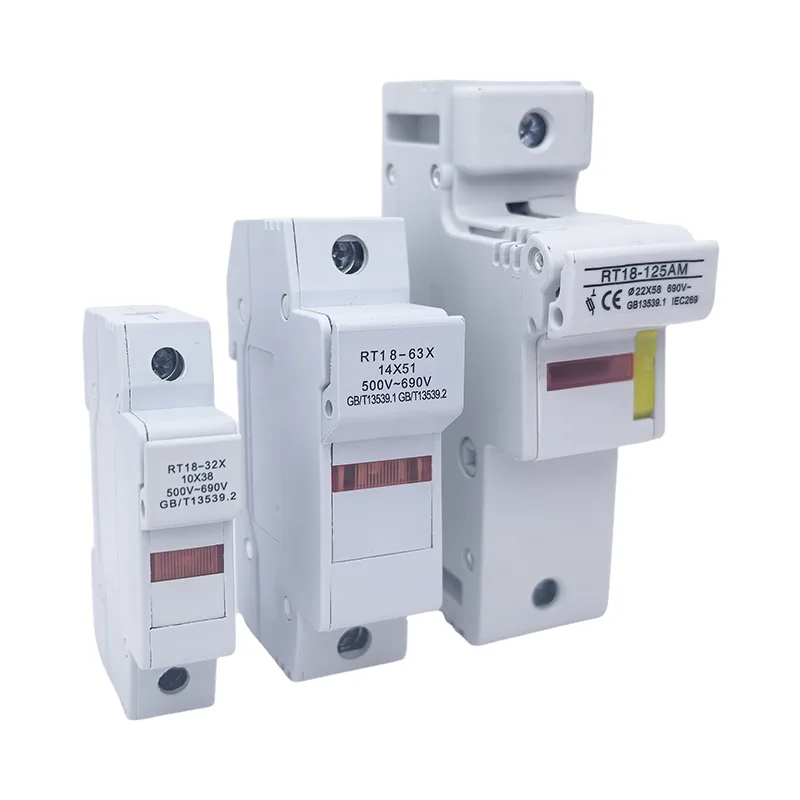

The LED lights up, when disconnector trips
Overall and installation dimensions (mm)
Cylindrical fuse links
|
Size |
a |
b |
c |
|
10x38 |
38 |
10 |
10,3 |
|
14x51 |
51 |
12 |
14 |
|
22x58 |
58 |
16 |
22 |
|
Name |
Rated voltage, V |
Rated frequency, Hz |
Maximum current, A |
Max. power dissipation, W |
|
Fuse Holder 10×38 |
500 |
50/60 |
8 |
3 |
|
Fuse Holder 14×51 |
500 |
50/60 |
20 |
5 |
|
Fuse Holder 22×58 |
500 |
50/60 |
40 |
9.5 |
|
Name |
Rated operating current In, A |
Rated voltage, V |
Rated frequency, Hz |
10×38 |
14×51 |
22×58 |
|
Cylindrical fuse link 0,5A |
0.5 |
500 |
50/60 |
10×38-0,5 |
- |
- |
|
Cylindrical fuse link 1A |
1 |
500 |
50/60 |
10×38-1 |
- |
- |
|
Cylindrical fuse link 2A |
2 |
500 |
50/60 |
10×38-2 |
14×51-2 |
22×58-2 |
|
Cylindrical fuse link 4A |
4 |
500 |
50/60 |
10×38-4 |
14×51-4 |
22×58-4 |
|
Cylindrical fuse link 6A |
6 |
500 |
50/60 |
10×38-6 |
14×51-6 |
22×58-6 |
|
Cylindrical fuse link 8A |
8 |
500 |
50/60 |
10×38-8 |
- |
22×58-8 |
|
Cylindrical fuse link 10A |
10 |
500 |
50/60 |
10×38-10 |
14×51-10 |
22×58-10 |
|
Cylindrical fuse link 16A |
16 |
500 |
50/60 |
10×38-16 |
14×51-16 |
22×58-16 |
|
Cylindrical fuse link 20A |
20 |
500 |
50/60 |
10×38-20 |
14×51-20 |
22×58-20 |
|
Cylindrical fuse link 25A |
25 |
500 |
50/60 |
10×38-25 |
14×51-25 |
22×58-25 |
|
Cylindrical fuse link 32A |
32 |
500 |
50/60 |
10×38-32 |
14×51-32 |
22×58-32 |
|
Cylindrical fuse link 40A |
40 |
500 |
50/60 |
- |
14×51-40 |
22×58-40 |
|
Cylindrical fuse link 50A |
50 |
500 |
50/60 |
- |
14×51-50 |
22×58-50 |
|
Cylindrical fuse link 63A |
63 |
500 |
50/60 |
- |
14×51-63 |
22×58-63 |
|
Cylindrical fuse link 80A |
80 |
500 |
50/60 |
- |
- |
22×58-80 |
|
Cylindrical fuse link 100A |
100 |
500 |
50/60 |
- |
- |
22×58-100 |
|
Cylindrical fuse link 125A |
125 |
500 |
50/60 |
- |
- |
22×58-125 |
|

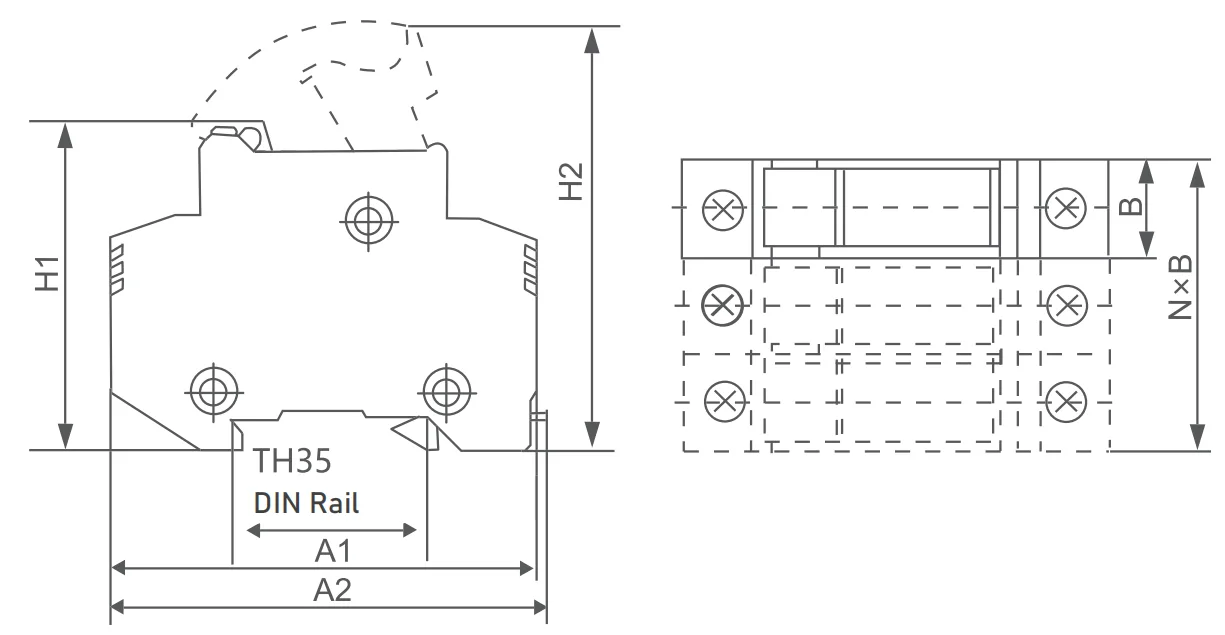

Model |
Outline Dimension (mm) |
||||
|
|
A1 |
A2 |
B |
H1 |
H2 |
|
RT18-32 |
77 |
78 |
17 |
61 |
80 |
|
RT18-63 |
96 |
97 |
26 |
67 |
94 |
|
RT18-125 |
127 |
129 |
35 |
76 |
104 |
Q1: What is a fuse link?
A: A fuse link is the replaceable protective element of a fuse, containing a calibrated melting element that breaks the circuit under overload or short circuit conditions. It is the “heart” of the fuse system.
Q2: What is the difference between a fuse link and a fuse holder?
A: The fuse link is the replaceable melting part; the fuse holder (fuse base) is the stationary mounting part that holds the fuse link and provides electrical connections. You need both for a complete fuse installation.
Q3: What standard do XUCKY fuse links comply with?
A: Our fuse links comply with IEC 60269-1 and IEC 60269-2 international standards, with CE and RoHS certification.
Q4: Can XUCKY fuse products be used in Saudi Arabia and Middle East?
A: Yes. XUCKY fuse link and fuse holder are designed for 500V/690V AC systems, compatible with Middle East grid standards. We have rich export experience in Saudi Arabia, UAE, Egypt, and other Gulf countries.
Q5: What is the MOQ for XUCKY fuse link?
A: MOQ is 100 pcs for standard types. Custom orders are welcome. Contact us for detailed price list.
