When it comes to protecting electrical circuits, the choice between thermal-magnetic (TMD) and electronic trip (ETR) breakers is far more than a technical detail—it directly impacts system safety, cost efficiency, and long-term reliability. As a 17+ year manufacturer of circuit protection solutions, XUCKY understands the unique needs of distributors, wholesalers, and project managers across industrial, commercial, and residential sectors. This guide breaks down the core differences, use cases, and why XUCKY’s TMD/ETR offerings are engineered to meet global standards.
Before diving into comparisons, it’s critical to define these two technologies:
· Thermal-Magnetic Trip (TMD) Breakers: A mechanical solution that uses a bimetallic strip (for overload protection) and an electromagnet (for short-circuit protection). XUCKY’s TMD line (e.g., M11 MCCB) is a staple in general-purpose electrical systems.
· Electronic Trip (ETR) Breakers: A digital solution that uses a current transformer (CT) and microprocessor to monitor circuit conditions, triggering trips based on programmed thresholds. XUCKY’s ETR breakersare designed for precision-critical applications.

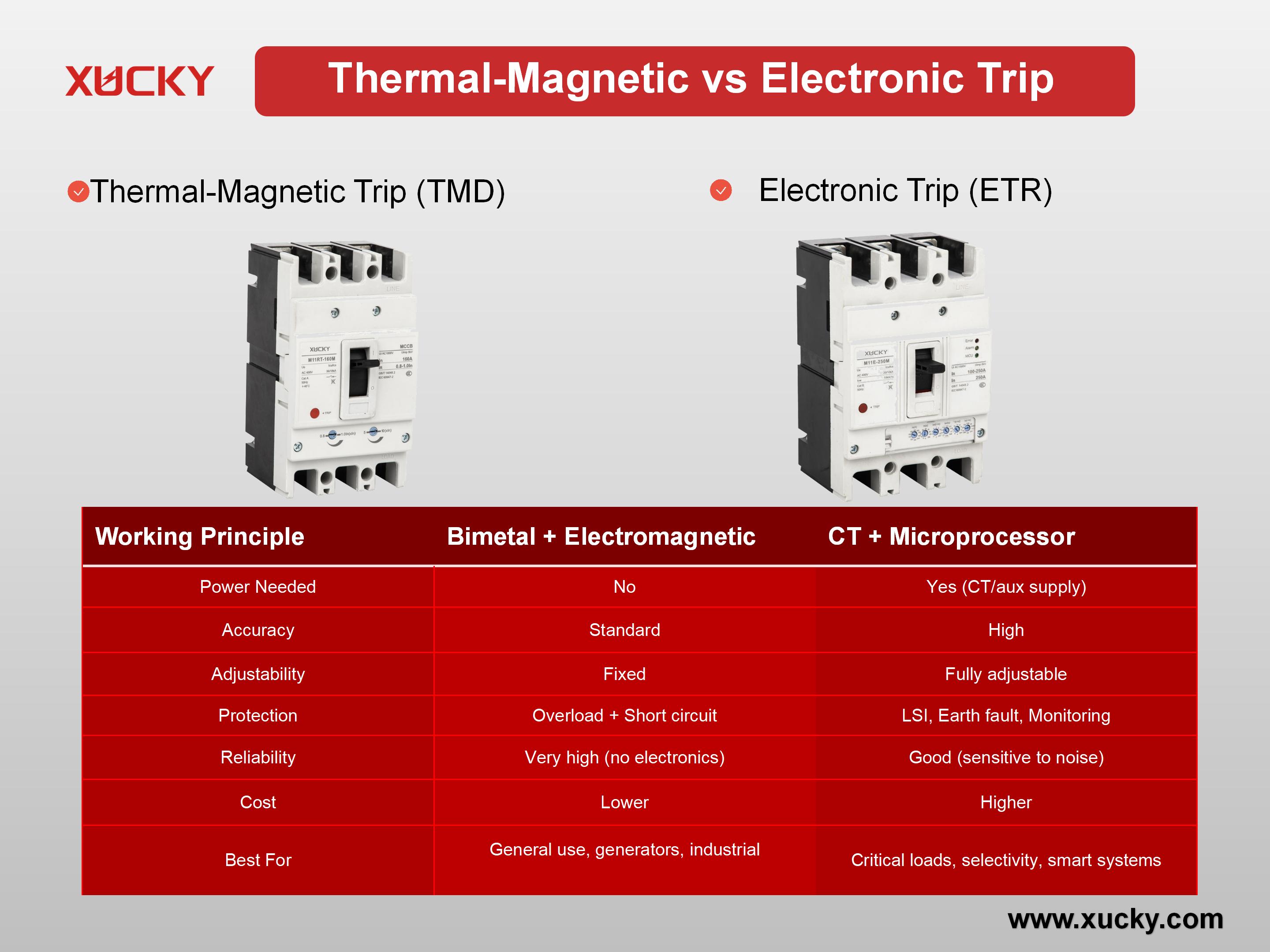

To help distributors advise clients and project managers select the right solution, we break down key performance metrics:
TMD Breakers (XUCKY M11 Series):The bimetallic strip (composed of two metals with different thermal expansion rates) bends when overheated by excess current, triggering a trip. For short circuits, the electromagnet generates a strong magnetic field that pulls the breaker’s contact apart in milliseconds.This mechanical design requires no external power—making TMD breakers independent of auxiliary supplies (a critical advantage in remote locations, e.g., generator-powered industrial sites).
ETR Breakers (XUCKY M11E Series):A CT measures real-time current, which is processed by a microprocessor to compare against pre-set thresholds (overload, short circuit, earth fault). The microprocessor sends a signal to a solenoid to trip the breaker when limits are exceeded.ETR breakers rely on an auxiliary power supply (e.g., CT output or external voltage), so they are not suitable for systems without backup power.
TMD Breakers:Accuracy is “standard” (±10–15% of rated current) because bimetallic strips are calibrated to fixed thermal properties. Adjustability is limited—users cannot modify trip settings (e.g., overload delay) after manufacturing.For distributors serving small-to-medium businesses (SMBs) or residential projects, TMD’s fixed settings simplify inventory (fewer SKUs to stock) and reduce client confusion.
ETR Breakers:Accuracy is high (±2–5% of rated current) due to digital monitoring. Most importantly, ETR breakers offer fully adjustable trip parameters:
o Overload delay (to avoid nuisance trips for motor startup surges)
o Short-circuit breaking capacity (LSI curves: Long-time, Short-time, Instantaneous)
o Earth fault protection (residual current detection)
o Circuit monitoring (data logging for predictive maintenance)For project managers building smart grids or critical load systems (e.g., data centers), this adjustability ensures compliance with strict industry standards (e.g., IEC 60947-2).
TMD Breakers:Protects against two core hazards:
1. Overload: Gradual current spikes (e.g., too many devices on a single circuit).
2. Short Circuit: Sudden, high-current surges (e.g., wiring faults).XUCKY’s TMD breakers are certified to handle up to 100kA of short-circuit current—ideal for general industrial and commercial use (e.g., generator backup systems, conveyor belts).
ETR Breakers:Adds advanced protection layers:
o Earth Fault Protection: Detects leakage current (≤30mA) to prevent electric shocks (critical for healthcare facilities or wet environments).
o Selectivity: Trips only the faulty circuit (not the entire panel) to minimize downtime (a must for data centers or manufacturing lines).
o Condition Monitoring: Sends alerts for abnormal current patterns (enabling proactive maintenance).XUCKY’s ETR breakers are used in Turkish solar farms and UAE BESS (Battery Energy Storage Systems) to protect high-value assets from preventable damage.
TMD Breakers:
o Reliability: Very high—no electronic components mean less risk of failure from temperature fluctuations, electromagnetic interference (EMI), or voltage spikes. XUCKY’s TMD breakers undergo 10,000+ mechanical cycle tests to ensure durability.
o Cost: Lower—simpler manufacturing reduces unit prices (XUCKY TMD breakers start at $1/unit for bulk orders).For wholesalers serving price-sensitive markets (e.g., residential retrofits in Albania), TMD breakers balance cost and safety.
ETR Breakers:
o Reliability: Good—but sensitive to EMI (e.g., from nearby motors) and requires regular firmware updates. XUCKY mitigates this with shielded CTs and industrial-grade microprocessors.
o Cost: Higher—digital components and calibration add to production costs. However, the long-term savings (fewer equipment failures, less downtime) justify the investment for critical systems.5. Best Use Cases: Matching Breakers to ApplicationsTo help stakeholders make informed decisions, here are XUCKY’s recommended use cases:
| Thermal-Magnetic (TMD) Breakers | Electronic Trip (ETR) Breakers |
| General industrial machinery (conveyors, pumps) | Data centers (critical load protection) |
| Residential and commercial building panels | Solar farms and BESS systems (earth fault monitoring) |
| Generator backup systems (no auxiliary power) | Healthcare facilities (selective tripping to avoid equipment downtime) |
| SMB retail spaces (cost-efficient inventory) | Smart grids (condition monitoring and data logging) |
To help stakeholders make informed decisions, here are XUCKY’s recommended use cases:
| Thermal-Magnetic (TMD) Breakers | Electronic Trip (ETR) Breakers |
| General industrial machinery (conveyors, pumps) | Data centers (critical load protection) |
| Residential and commercial building panels | Solar farms and BESS systems (earth fault monitoring) |
| Generator backup systems (no auxiliary power) | Healthcare facilities (selective tripping to avoid equipment downtime) |
| SMB retail spaces (cost-efficient inventory) | Smart grids (condition monitoring and data logging) |
· Bulk Supply: 1000+ MOQ for TMD breakers; 5000+ MOQ for custom ETR solutions (28-day lead times for global delivery).
· OEM Customization: Private labeling, custom trip settings, and branded packaging (ideal for distributors building their own product lines).
· Technical Support: Localized guides and 24/7 engineering assistance for project managers designing complex systems.
A recent success story: A Malaysian food factory switched from generic TMD breakers to XUCKY’s ETR line—reducing motor failure-related downtime by 70% in 6 months.
Thermal-magnetic breakers are the workhorse of general electrical systems—cost-effective, reliable, and easy to deploy. Electronic trip breakers are the future of critical infrastructure—offering precision, adjustability, and advanced protection.
As a distributor, wholesaler, or project manager, partnering with XUCKY ensures you have access to both technologies—backed by 17+ years of manufacturing expertise and global certification.
Ready to select the right breaker for your next project? Contact XUCKY’s sales team for a free consultation or bulk quote.
