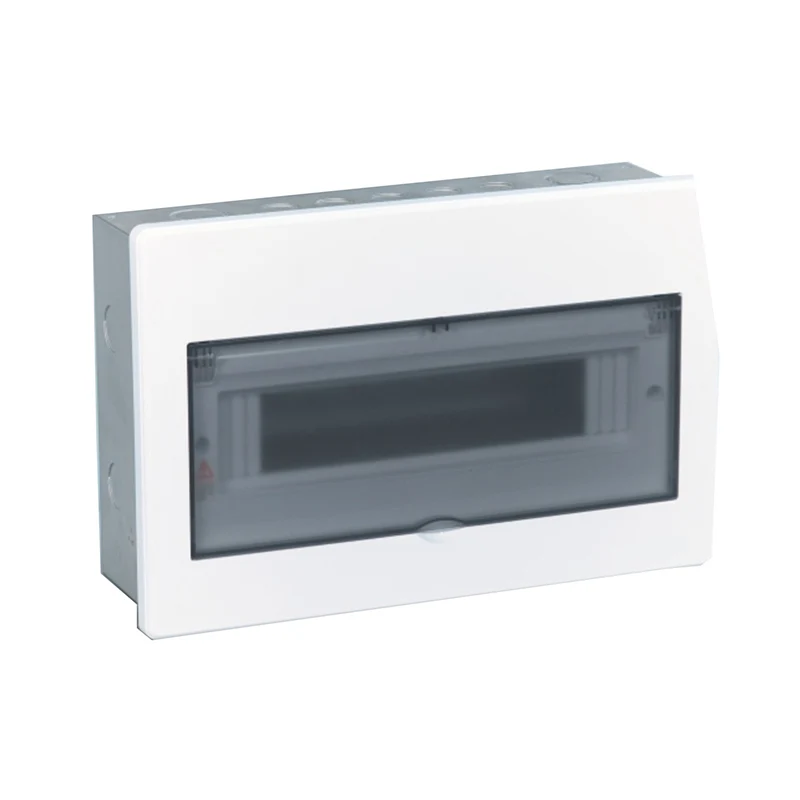

BE Series Distribution Box

China XUCKY Electric customized BE Series Distribution Box is categorized into three types depending on the base and cover material to meet different market needs. The design takes into full consideration the needs of the installer and greatly improves the convenience, flexibility and safety of the product. With full functions, simple appearance and novel shape, it can be widely used in high-rise buildings, houses, stations, ports, airports, hospitals, theaters, large commercial areas, industrial and mining enterprises and other places.

Send Inquiry

Product Description

The cover is double-curved and designed with a dewy,simple and elegant appearance.

Technical Specification of BE Series Distribution Box

Product series: embedded mounting distribution box/surface mountingdistribution box

Ways: 4way, 7way, 10way, 12way, 14way, 16way, 18way, 20way, 24way(embedded mounting), 28way, 40way

Products:

1.embedded mounting

BEP-A 104, BEP-A 107, BEP-A 110, BEP-A 112. BEP-A 114, BEP-A 116, BEP-A 118, BEP-A 120, BEP-A124, BEP-A228, BEP-A240

2.surface mounting

BEP-M 104, BEP-M 107, BEP-M 110, BEP-M 112, BEP-M 114, BEP-M116, BEP-M 118, BEP-M 120, BEP-M 228, BEP-M 240

Box base material: high-quality cold-rolled plate, electrostatic powder coated

single row embedded-mounting box dimension(width*height): (4way)143x75mm, (7一20way)192x75 mm, (24way)230x90mm

Cover material: high-quality ABS for cover base and white movable door, high-quality PC for transparent movable door,

Cover installation: fixed with screw

Box installation: 1. embedded mounting; 2. Surface mounting

Way size: 18 mm (standard width)

Terminal cross-section dimension: ①4~20way 6 x 10mm; ②24~ 40way 6.4 x 12mm

Rated voltage(V): ~AC400V( ±20%) 50~60HZ

Rated current/Max. Current input: ①55A(4~20way) 6 x 10mm; ②63A(24~40way) 6.4 x 12mm

Product standard: GB17466.1-2008, GB17466.24-2008

Ingress protection: IP40

Packing information of BE Series Distribution Box

Specification & Description		Photo	Carton LWH（cm)	(PCS/CTN)
Distribution Box
BE-M104	Surface mounting		505×190×360	10
BE-M107			520×245×465	10
BE-M110			520×300×465	10
BE-M112			520×335×465	10
BE-M114			520×235×375	5
BE-M116			520×235×415	5
BE-M118			520×235×450	5
BE-M120			520×235×485	5
BE-M228			445×165×410	1
BE-M240			445×165×520	1
BEP(2013)-A 104	Embedded mounting		505190360	10
BEP(2013)-A 107			520245465	10
BEP(2013)-A 110			520300465	10
BEP(2013)-A 112			520335465	10
BEP(2013)-A 114			520235375	5
BEP(2013)-A 116			520235415	5
BEP(2013)-A 118			520235450	5
BEP(2013)-A 120			520235485	5
BEP(2013)-A 124			600275565	5
BEP(2013)-A 228			485165410	1
BEP(2013)-A 240			485165520	1

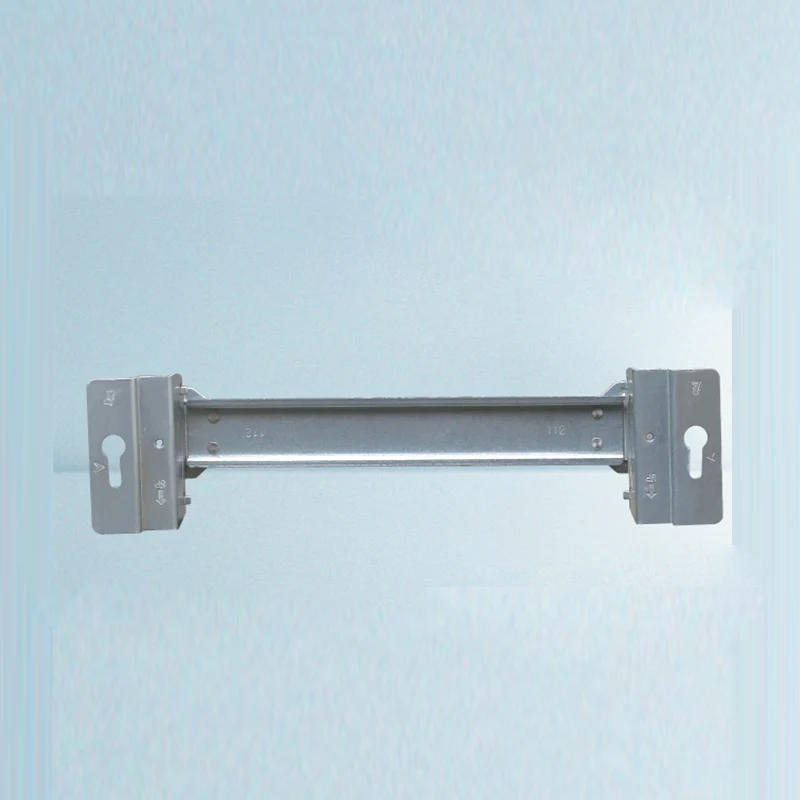

BE series


Cover	Box Base

Surface mounting box base is made of high quality cold-rolled plate,1.0mm thickness for one row and 1.2mm for two rows.Embedded mounting box base is made of high quality cold-rolled plate, 0.8mm for one row and 1.0mm for two rows.The surface of the plate is electrostatic powder coated and the tolerance is fully complied with the PT.A tolerance requirements in GB/t 708-2006.
