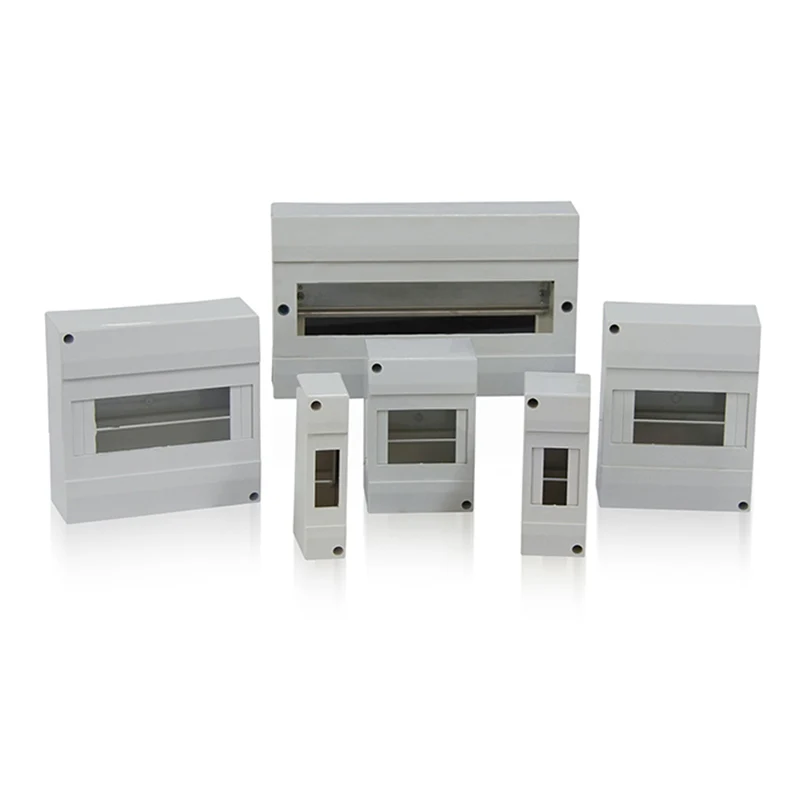

HAG series distribution box is kind of good-looking outline small volume, easy to install economically modular distribution box. It mainly use for building electric distribution system's installation,matched and house rebuild fitment etc. Application.
The max rated current is 63A. |
|
Technique parameter |
|
| Distribution box rated current: | 1 way to 4 way:50A |
| 6 way to 18 way:63A | |
| Material | |
| Insutation: | Fire-proof type refractory material |
| Color: | Whitie color |
| standard: | accord with IEC X40439-3 |
|
Protective Degree |
|
| IEC60529: | IP30 |
| Fire-resistant andanomaly heat abiliy | |
| IEC60529-1 standard,650C/30sec | |
| Compositian,structure. | Removable matte blocks to increase the poles. |
| The removable various size holes are available on the box of up and down,bottom in case of connecting wires in and out. | |
| MCB enclosure, | Way No. |
Carton L*W*H（cm) |
（PCS/CTN） | G.W.（kgs/ctn) | N.W.（kgs/ctn) |
| 1P 34X130X60 | 1way | 53*45*31 | 200 | 17.7 | 16.6 |
| 2P 52X130X60 | 2way | 56*54*36.5 | 200 | 20.9 | 19.8 |
| 4P 87X130X60 | 4way | 53*45*31 | 100 | 11.6 | 10.5 |
| 6P 125X160X60 | 6way | 63*49*37 | 90 | 15.6 | 14.5 |
| 8P 160X160X60 | 8way | 64.49*31 | 60 | 12.5 | 11.4 |
| 12P 260X160X60 | 12way | 54.5*35.5*36 | 20 | 9 | 8 |
| 18P 365X160X60 | 18way | 76.5*35.5*36 | 20 | 11 | 10 |
