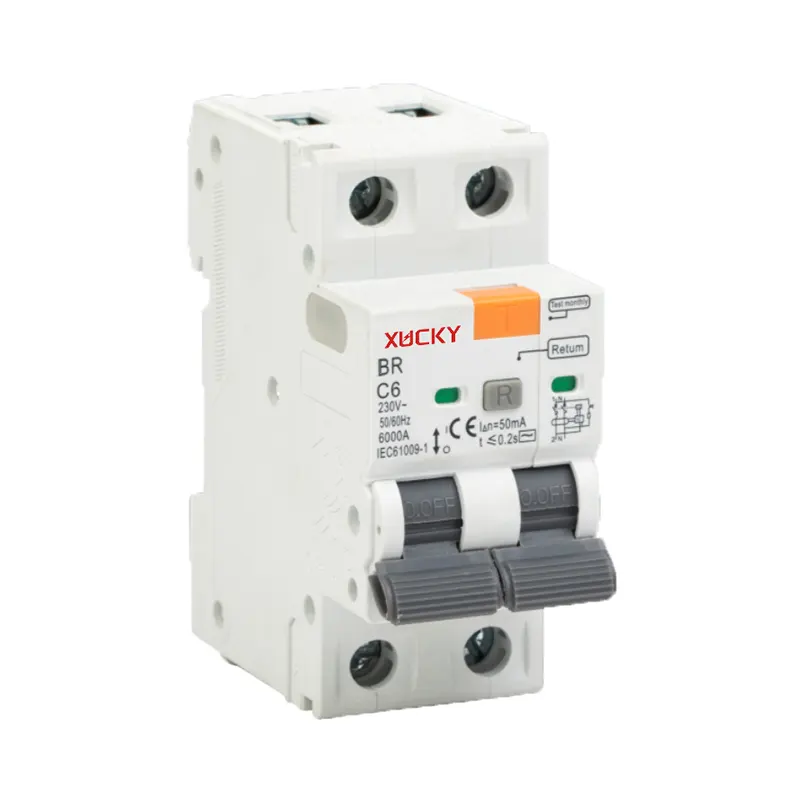

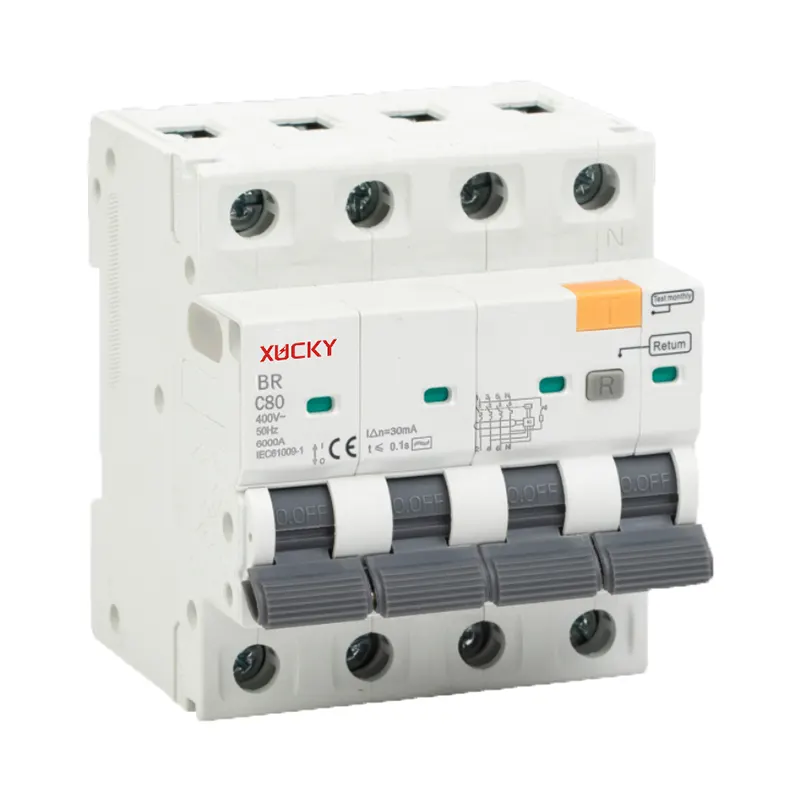

RCBO Electronic Type

Technical Data

◆ Standard: IEC61009 -1

◆ Protection: Ground fault and overcurrent

◆ Rated current. In: 3, 6, 10, 16, 20, 25, 32, 40, 50, 63, 80A

◆ Operating,In: 30, 100, 300mA

◆ Rated residual current operated making & breaking capacity I△m: 500A

◆ Rated residual non-operated current I △ no: 0.5IAn

◆ Rated insulation voltage Ui: 250V

◆ Rated impulse withstand voltage Uimp: 4000v

◆ Number of poles: 2P(1P+N),4P(3P+N)

◆ Rated voltage: 2P 240/415VAC,4P 415VAC

◆ Residual current off-time:< 0.1 sec.

Type of trip:

◆ Ground fault: Electronic/Electro-magnetic release

◆ Over current: Thermal-magnetic

◆ Breaking capacity: 6kA

◆ Electrical endurance: 2000 operations

◆ Protection degree: IP20

◆ Mount:On 35mm DIN rail

◆ Width: 17.5mm per pole

◆ Terminal: Pin type

Breaking Time of Residual Current

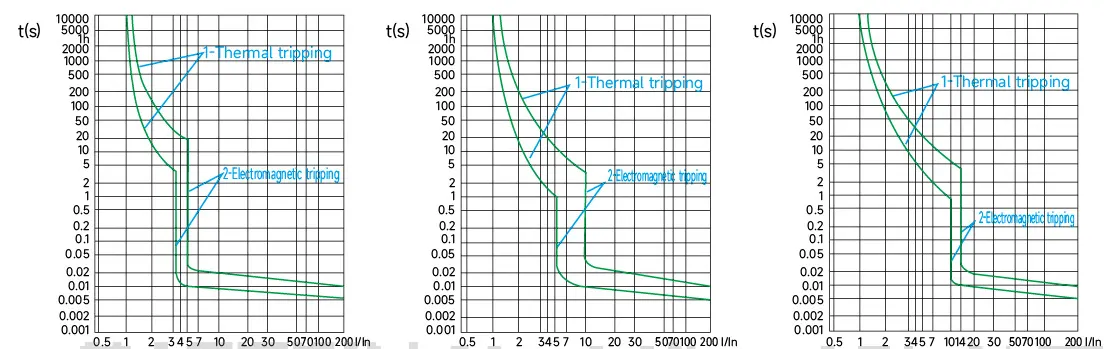

Characteristic Curve

Wiring

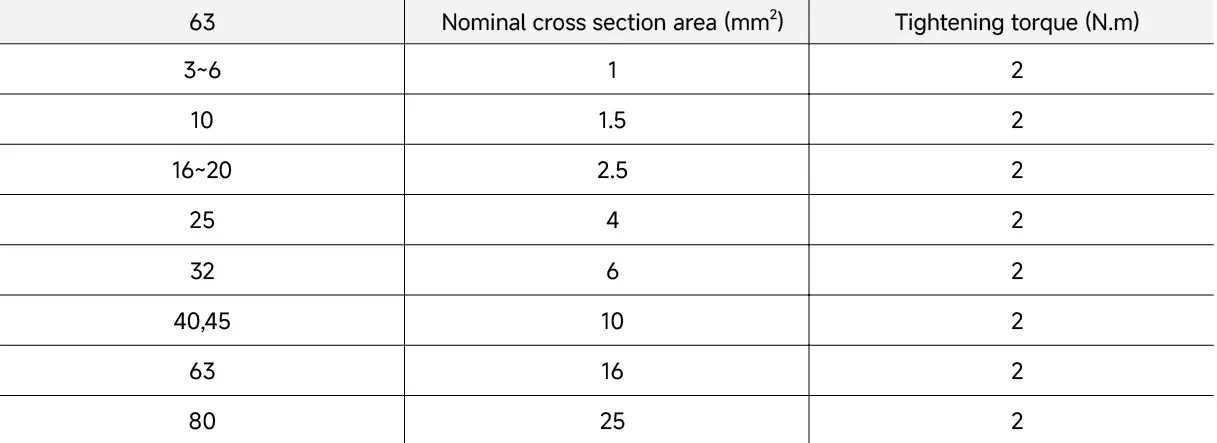

The suitable conductors should be used for connection, see table for relative parameters.

Features

◆ The combination of an RCCB and a miniature circuit breaker in a compact design for personnel, fire and line protection.

◆ Electromagnetic type, voltage independent.

◆ The MCB part protects lines against overload and short circuits and is available in characteristics B and C.

◆ The handle provides a clear indication of the contact position.

◆ The earth reference cable ensures protection against earth leakage in case of loss of supply neutral.

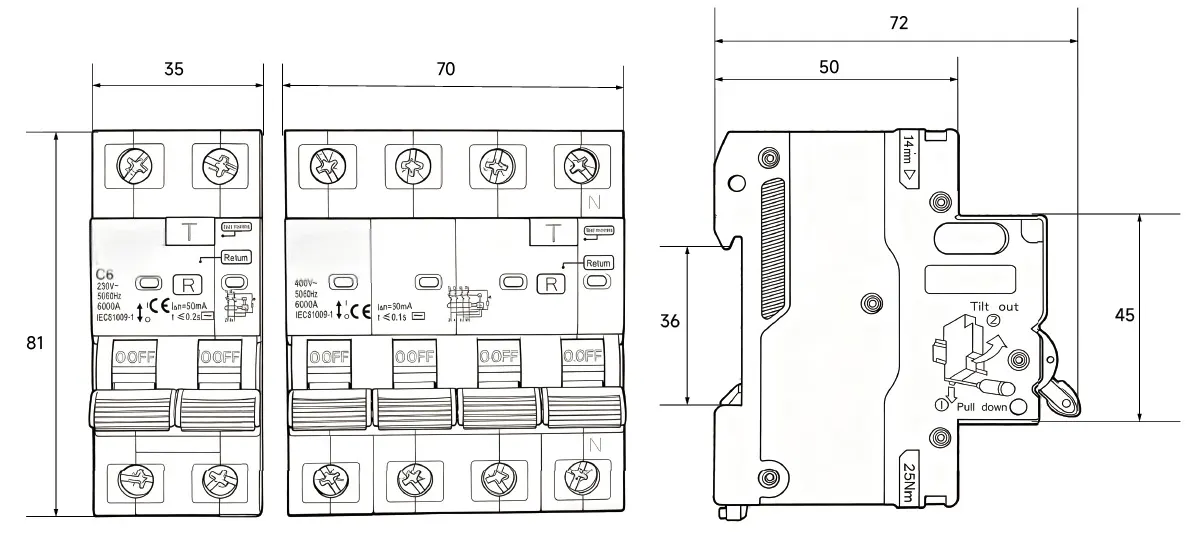

Overall and Mounting Dimensions

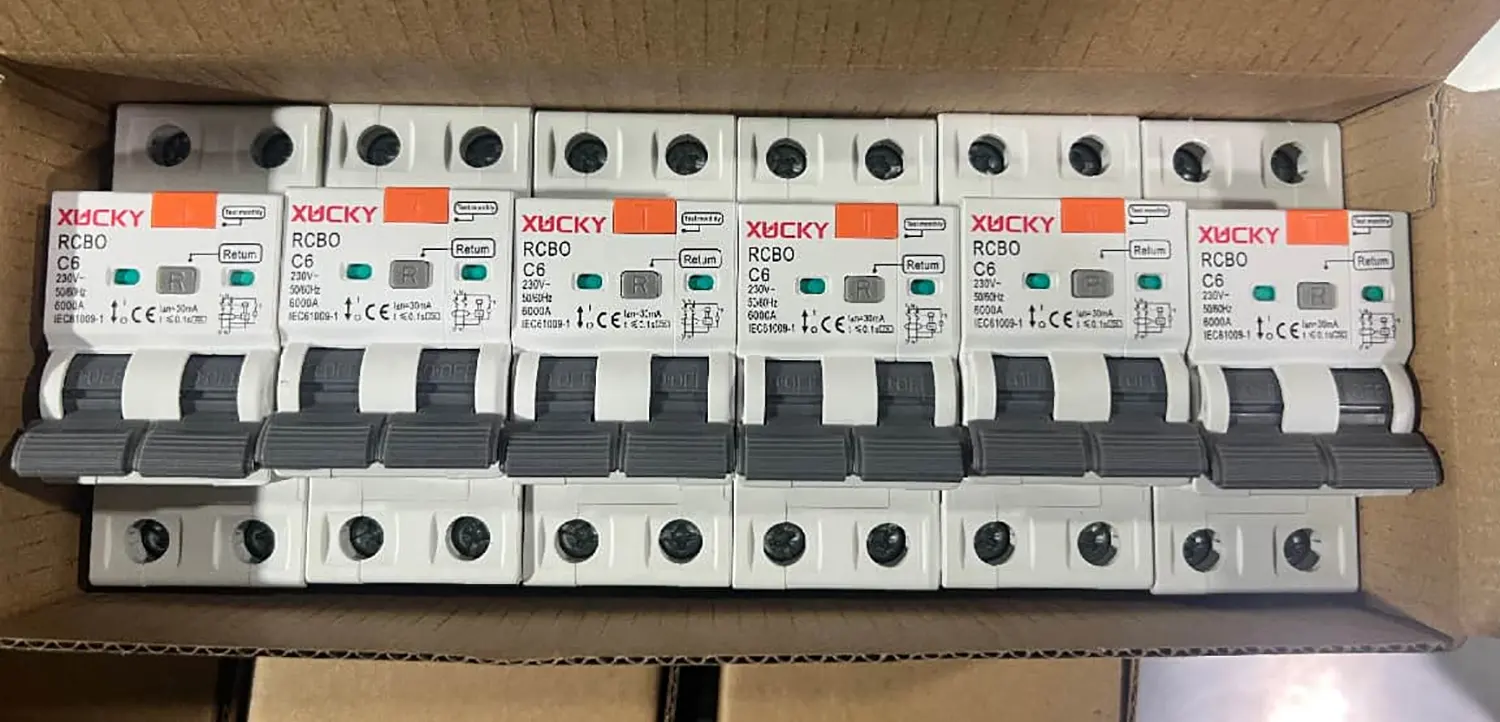

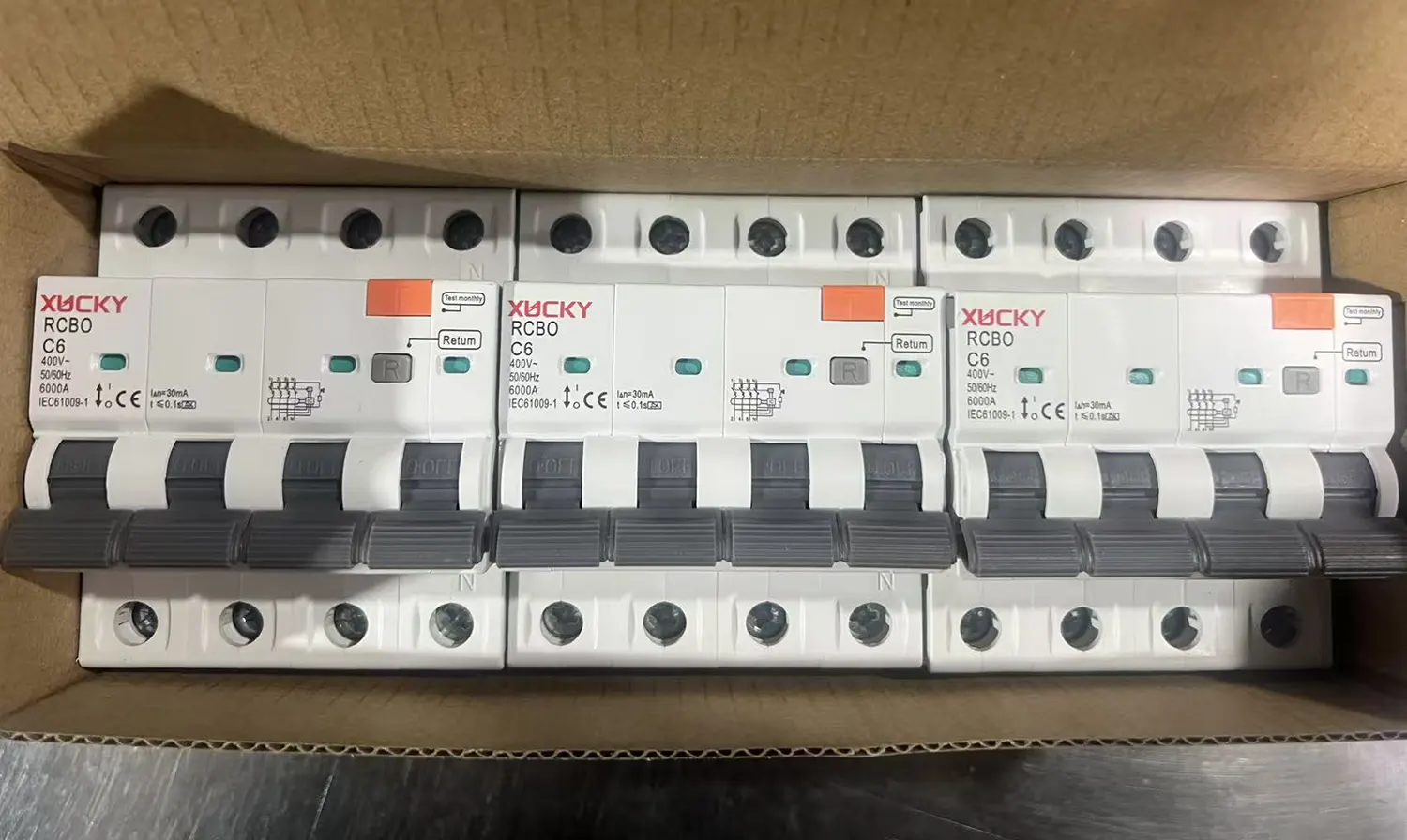

Packaging information

4P RCBO 3pcs/box

2P RCBO 6pcs/box

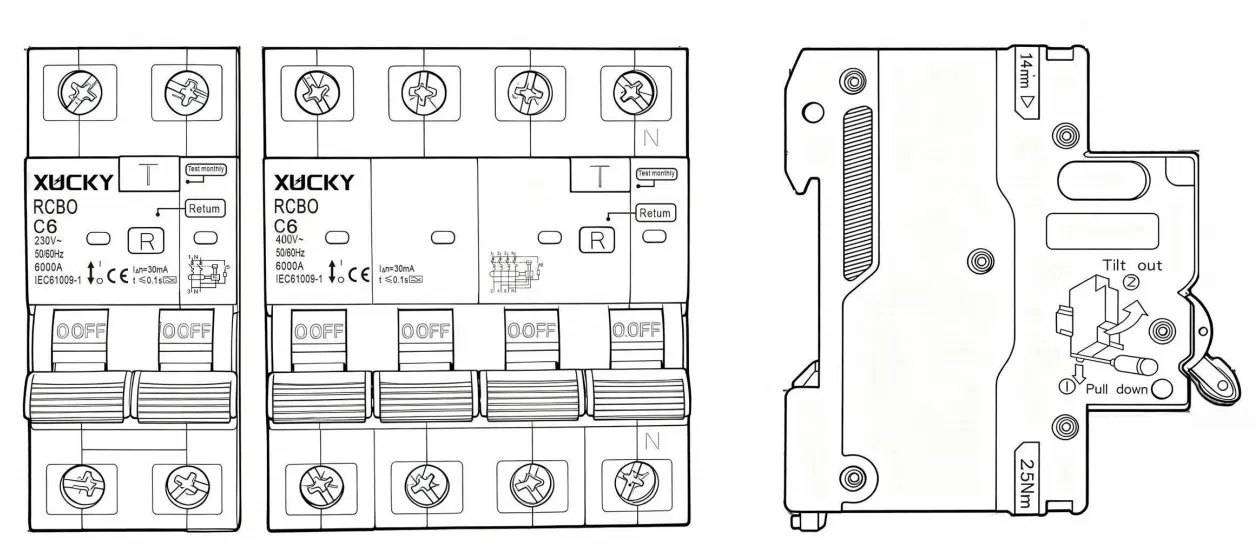

Printing design
