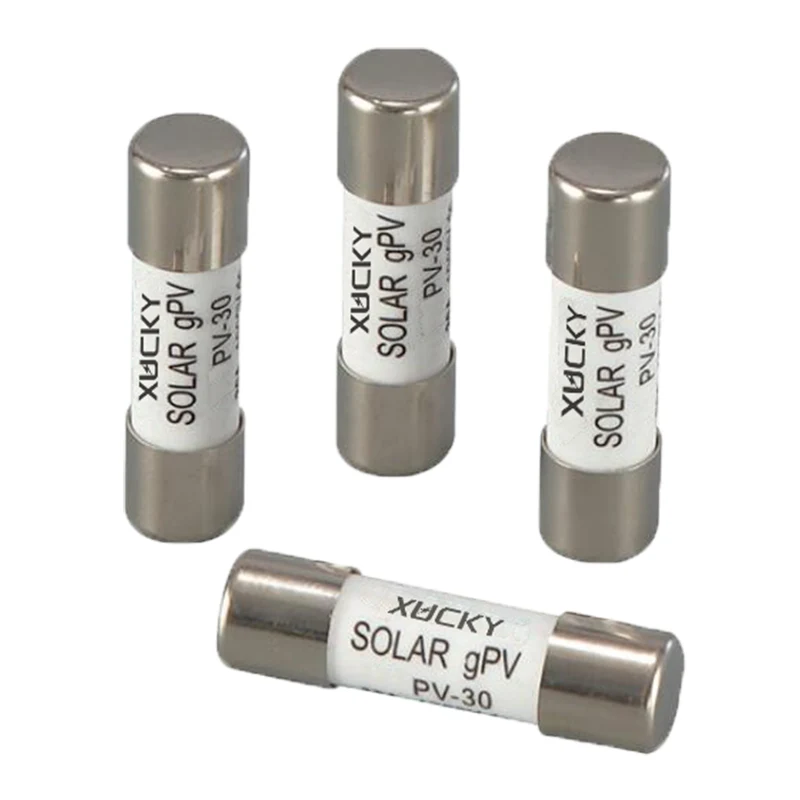

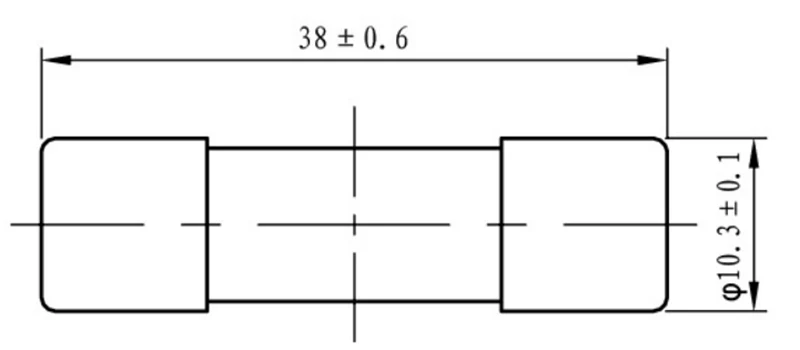

PV-30s 1500VDC Solar PV fuse link (φ10.3x38)mm
● Rated voltage: 1500Vdc
● Rated current: 2A~30A
● Prolectin category: gPV-Full range protection of PV system
● Breaking capacity: 15kA 20kA
● Tme constant:1-3ms
● IEC60269-6
● UL248-19
● PV combiner box - Solar PV module protection
● Low temperature rise, low power consumption and long service life
● Standardized size and compact structure
● Applicable holder & base
● PV-30 (X)
● PV-30 (Clip)
|
Product code |
Rated current |
Breaking capacity |
Power
loss |
Net weight |
|
PV30S/02NF |
2A |
1500VDC TUV&CE: 15kA UL: 20kA |
0.9 |
10g |
|
PV30S/03NF |
3A |
1.0 |
||
|
PV30S/04NF |
4A |
1.2 |
||
|
PV30S/05NF |
5A |
1.3 |
||
|
PV30S/06NF |
6A |
1.5 |
||
|
PV30S/08NF |
8A |
1.8 |
||
|
PV30S/10NF |
10A |
2.2 |
||
|
PV30S/12NF |
12A |
2.3 |
||
|
PV30S/15NF |
15A |
2.7 |
||
|
PV30S/20NF |
20A |
3.2 |
||
|
PV30S/25NF |
25A |
3.8 |
||
|
PV30S/30NF |
30A |
4.5 |
|

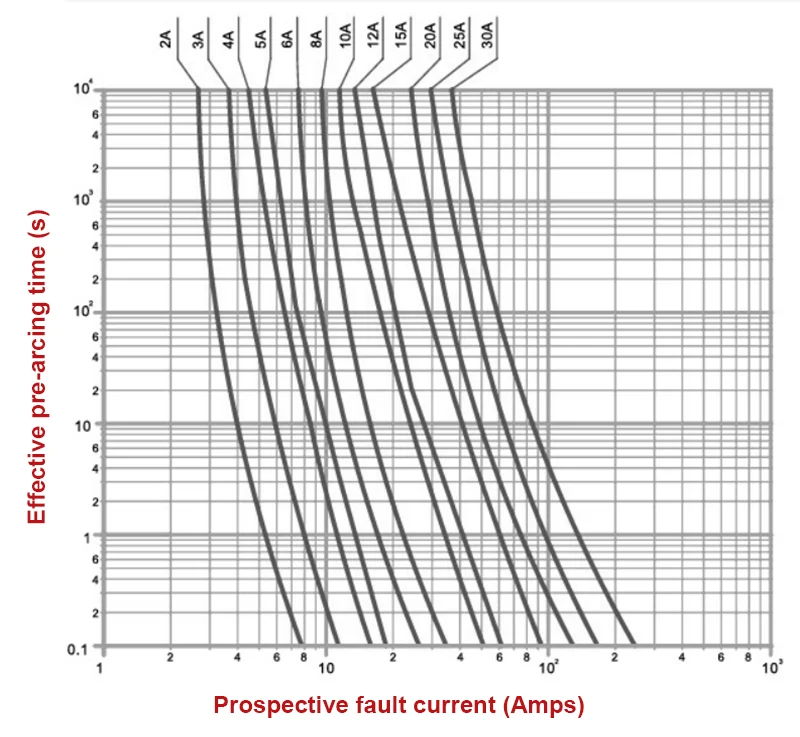

Standard:UL248-19 |
Standard:IEC60269-6 |
||
|
135% In |
200% In |
113% In |
145% In |
|
< 1h fusing |
<240s fusing |
> 1h non fusing |
<1h fusing |
