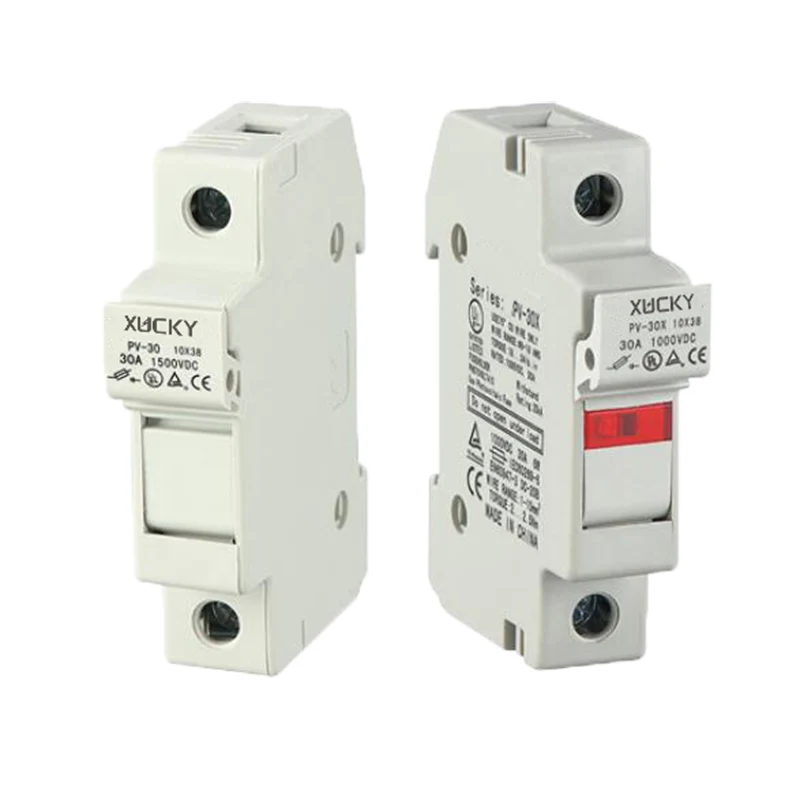

PV Fuse Holder

PV-30 1000Vdc/1500Vdc fuse holder/base fit for Solar PV fuse link (φ10.3x38)mm

Specifications

● Rated votage: 1000Vdc / 1500Vdc

● Rated current: 30A

Standard

● IEC60269-6

● UL 4248-19

● EN60947-3

Typical application

● PV combiner box

Product features

● Imported nylon material, V0 flame retardant, high and low temperature resistance

● 224h salt spray test, resistance to acid environment

● Silver plated copper terminal blocks, low temperature rise

Product parameters

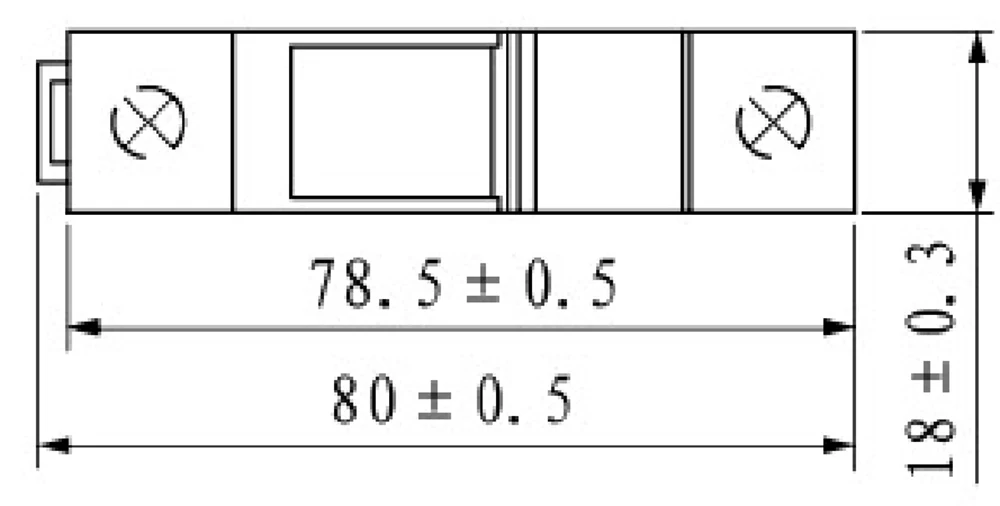

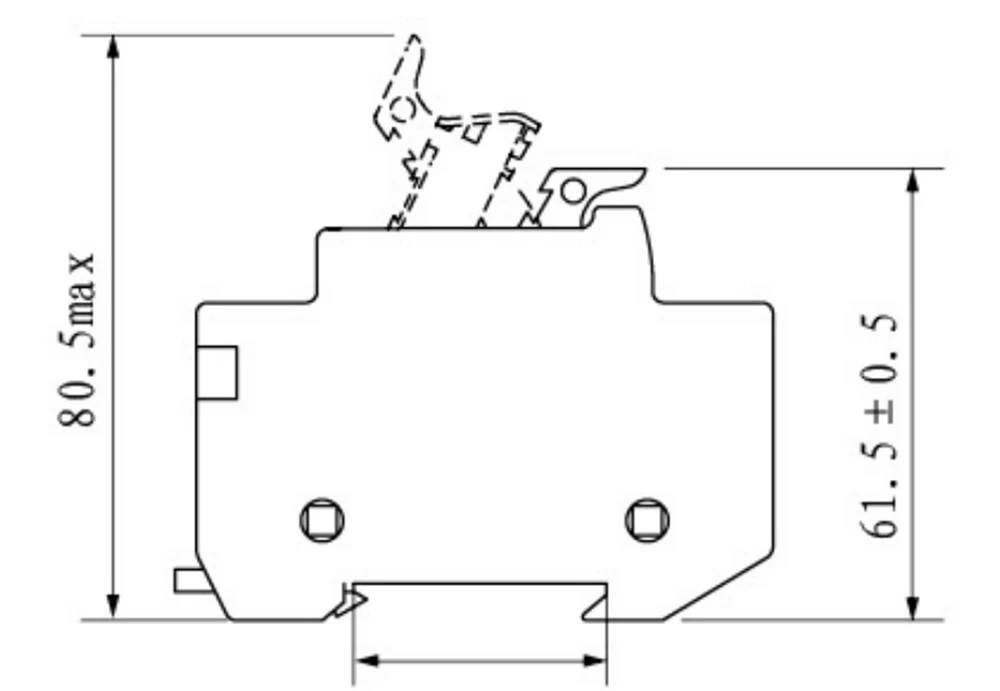

Product size (mm)

Equipped with TH35-7.5 mounting rail

PV-30(X)

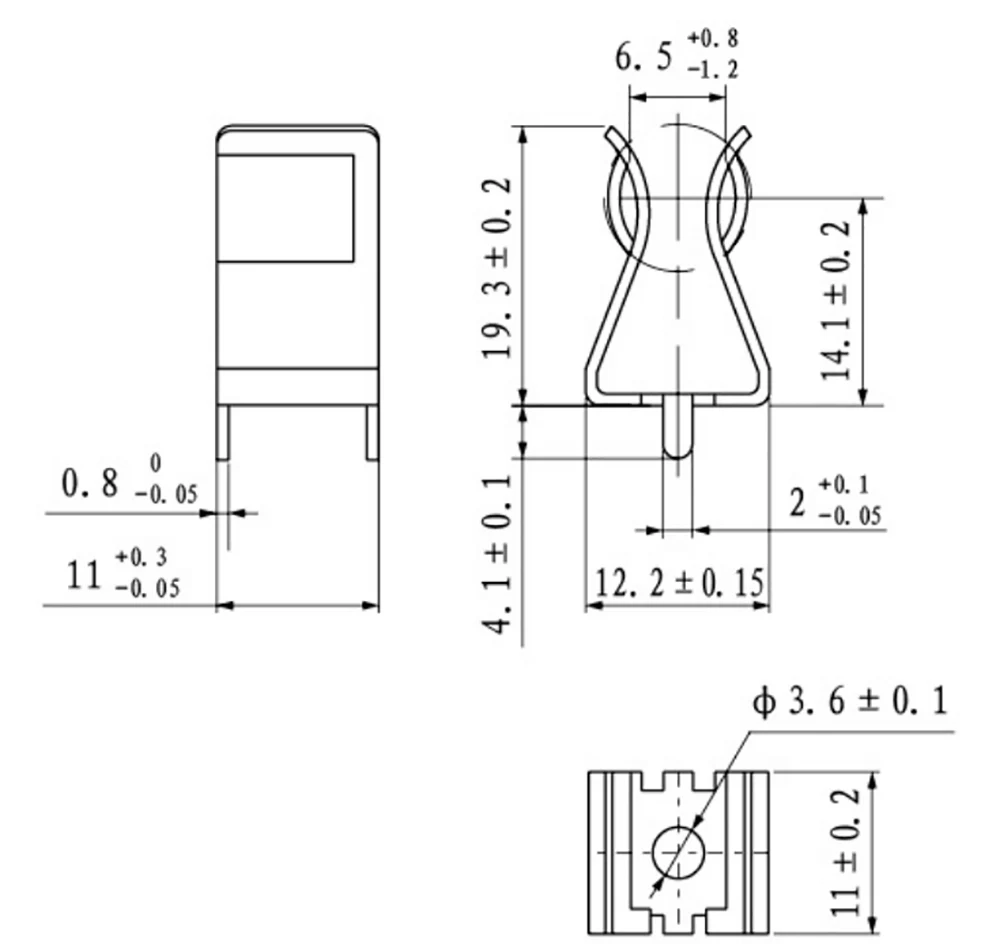

PV-30(Clip)

Note: This base can provide 1P, 2P, 3P, 4P for selection
