Products

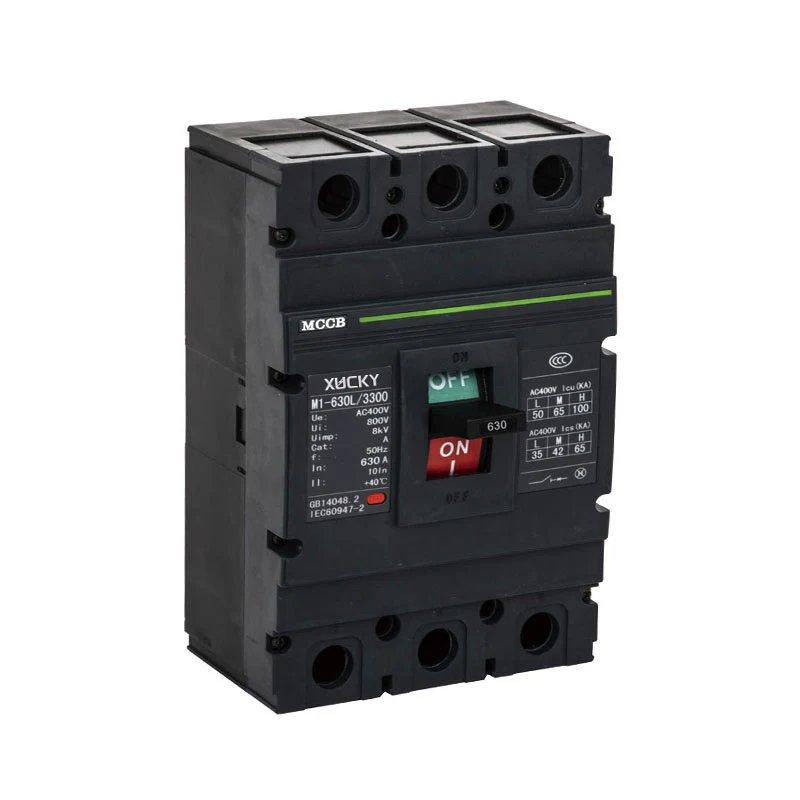

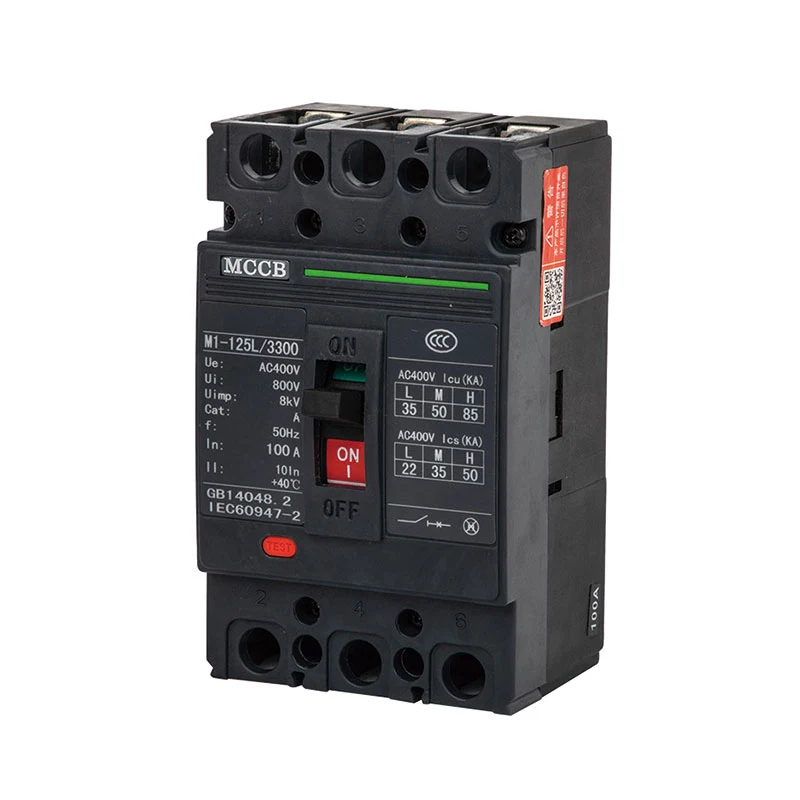

M13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker
  • M13 Moulded Case Circuit BreakerM13 Moulded Case Circuit Breaker

M13 Moulded Case Circuit Breaker

Wholesale M13 Moulded Case Circuit Breaker manufacturer specialized in production and R&D M13 Molded Case Circuit Breaker (M13, hereinafter referred to as MCCB), is new circuit breakers which have been designed and developed by the company using international advanced technology. The circuit breakers are of the following characteristics: compact size, high breaking capacity, short arc-over distance and shakeproof, is ideal products applied on land or ships.


Scope of Application

XUCKY Electric is a large M13 Moulded Case Circuit Breaker manufacturer and supplier in China. For many years, we have been specializing in Modular Electrical Terminal Equipment, our products have good price advantage and cover most of the European and American markets. We are looking forward to being your long-term partner in China.

The rated insulation voltage of the circuit breaker is 800V (500V for M13-63), it is suitable for the distribution network of AC 50Hz / 60Hz, rated working voltage of 690V and rated current of 1250A, to distribute power and protect circuit and power equipment from being damaged caused by overload , short-circuit, under-voltage and other fault. Also for protection infrequent conversion of the circuits and infrequent start of motor and overload, short circuit, under voltage.

M13circuit breaker can be mounted vertically (upright) or horizontally (transverse).

M13MCCB is suitable for isolation and the symbol is " ".

M13MCCB meets the standard: GB14048.2 "low-voltage switchgear and control equipment, Part 2: circuit breakers."


Model and meaning


Note:

According to the pole, it classifies four types:

Type A: N-pole without over-current release components, and N-pole has been connected all along, and does not act with other three poles to turn on or off;

B-type: N-pole without over-current release components, and N-pole could act with other three poles (N-pole turn-on prior to turn-off);

Type C: N-pole fixed with over-current release components, and N-pole could act with other three poles (N-pole turn-on prior to turn-off);

D-type: N-pole fixed with over-current release components, and N-pole has been connected all along, and does not act with other three poles to turn on or off.

Circuit breaker for distribution without code, circuit breaker for motor protection with 2

No code for direct operation with handle; P for electric operation; Z for turning handle.


Classification according to rated current of over-current release:

M13-63 MCCB has nine: 6,10,16,20,25,32,40,50,63 A;

M13-100 MCCB has nine: 16,20,25,32,40,50,63,80,100 A;

M13-225 MCCB has seven: 100,125,140,160,180,200,225 A;

M13-400 MCCB has five: 225,250,315,350,400 A;

M13-630 MCCB has three: 400,500,630 A;

M13-800 MCCB has three: 630,700,800A;

M13-1250 MCCB has three: 800,1000,1250A.

Note: 6A only has electromagnetic (instantaneous) type, is not recommended specifications.

According to the wiring method: wiring in front of board, wiring on back of board, insertion type of the board.

According to over-current release pattern: thermodynamic-electromagnetic (double) type, electromagnetic (instantaneous) type.

According to the outfit, it has two types: with or without outfit.

The outfit include inner accessories and outside accessories: The inner accessories have shunt release, under-voltage release, auxiliary contact and alarm contact. The outside accessories are turning handle operation mechanism, power-driven operation mechanism and so on.

According to the breaking capacity: L-standard breaking type; M-second high breaking type; H-high breaking type


Normal operating conditions

■ Ambient air temperature: -5℃~+40℃, and average temperature in 24h is below +35℃.

■ Altitude: The altitude of the installation site is not more than 2000m.

■ Atmospheric conditions: The air relative humidity in the highest temperature +40℃ is not more than 50%; In the low temperature can have higher relative humidity. The maximum average relative humidity is 90%, while the average monthly minimum temperature is +25℃, and consider the temperature changes in product on the surface of the gel.

■ Pollution Degree: 3.


Main technical parameters


Trip mode and accessory code, flashover distance contains horizontal and vertical installation.

Accessory name

Accessory code

Accessory installation and lead mode

Instant

aneous

release

Double

release

63A,100A

63A,100A,225A,400A

630A

800A

1250A

2-poles

3-poles

4-poles

3-poles

4-poles

3-poles

3-poles

Without accessory

200

300

Alarm contact

208

308

——

Shunt release

210

310

——

Pre-paid meter

dedicated release

210Y

310Y

Auxiliary contact

220

320

Undervoltage release

230

330

——

Shunt release

240

340

——

Auxiliary contact

240Y

340Y

Shunt release

250

350

——

——

——

——

Undervoltage release

250Y

350Y

Two sets of

auxiliary contacts

260

360

——

Auxiliary contact,

Undervoltage release

270

370

——

Shunt release

218

318

——

——

——

——

Alarm contact

218Y

318Y

Auxiliary contact,

Alarm contact

228

328

——

——

Undervoltage release,

Alarm contact

238

338

——

——

——

——

Shunt release,

Auxiliary contact

248

348

——

——

——

——

Alarm contact

248Y

348Y

Shunt release,

Undervoltage release,

Alarm contact

258

358

——

——

——

——

——

Two sets of auxiliary

contacts, Alarm contact

268

368

——

——

Auxiliary contact,

Undervoltage release,

Alarm contact

278

378

——

——

——

——



A. 200 means circuit-breaker with electromagnetic release; 300 means thermodynamic+electromagnetic release; and 000 means circuit-breaker without release and internal accessory.

B. 125, 250, 400, 2-pole products only have 210, 220, 230, 310, 320, 330.

C. Only M13-63, M13-100, M13-225, M13-400 with pre-paid meter dedicated release.


Main technical index

1, Instantaneous action characteristic setting value of the circuit breaker for distribution is 10In±20%, M13-1250 is 7In±20%; Instantaneous action characteristic set value of the circuit breaker for motor protection is 12In ± 20%.

2, The rated value of the circuit breaker in Table 2.

3, In the ambient temperature of +40℃, the circuit breaker for distribution over-current release action characteristics shown in Table 3, the circuit breaker for motor protection over-current release action characteristics shown in Table 4.


Rated value of the circuit break

Model

Pole

Rated current (A)

Rated

operating

voltage (V)

Rated

insulation

voltage (V)

Rated ultimate short - circuit breaking capacity (Icu)

Flashover

distance(mm)

Test voltage (V)

Icu (kA)

Ics (kA)

M13-63L

3

10、16、20、25、

32、40、50、63

400

500

400×1.10

25

18

0

M13-63M

3、4

50

35

M13-100L

3、4

16、20、25、32、40、

50、63、80、100

400

800

30

22

≤50

M13-100M

2、3、4

50

35

M13-100H

3

85

50

M13-100L

3、4

690

10

5

M13-100M

2、3、4

20

10

M13-225L

3、4

100、125、140、

160、180、200、225

400

800

35

25

M13-225M

2、3、4

50

35

M13-225H

3

85

50

M13-225L

3、4

690

10

5

M13-225M

2、3、4

20

10

M13-400L

3

225、250、315、

350、400

400

800

50

35

≤100

M13-400M

3、4

65

42

M13-400H

3

100

65

M13-400L

3

690

15

8

M13-400M

3、4

20

10

M13-630L

3

400、500、630

400

800

50

35

M13-630M

3、4

65

42

M13-630H

3

100

65

M13-630L

3

6910

15

8

M13-630M

3、4

20

10

M13-800M

3

630、700、800

400

800

75

50

M13-800H

3

100

65

M13-800M

3

4690

30

15

M13-1250

3

800、1000、1250

400

800

85

42

M13-1250

3

690

25

12.5

Note: 2-poles, 4-poles circuit breakers, divided into L, M, H, they have the same breaking index as M-type.


Characteristics of inverse time breaking action of circuit breakers over-current release for power distribution when every pole is power-on at the same time

No.

Test current

I/In

Set time

Initial state

1

Conventional non-tripping current

1.05

2h(In>63A),1h(In≤63A)

Cold

2

Conventional non-tripping current

1.30

2h(In>63A),1h(In≤63A)

Immediately after Test 1

Instantaneous action characteristic setting value of the circuit breaker for distribution is 10In±20%, and instantaneous action characteristic setting value of the circuit breaker for motor protection is 12In±20%.


Characteristics of inverse time breaking action of circuit breakers over-current release for motor protection when every pole is power-on at the same time.

No.

I/In

Set time

Initial state

Remark

1

1.0

>2h

Cold



2

1.2

≤2h

Immediately after Test 1



3

1.5

≤4min

Cold

10≤n≤225

≤8min

225 < in ≤ 630

4

7.2

4s≤T≤10s

Cold

10≤In≤225

6s≤T≤20s

225 < in ≤ 630


Derating factors table of temperature changes

Model/Coefficient/Temperature

+40℃

+45℃

+50℃

+55℃

+60℃

M13-63

1

0.94

0.88

0.80

0.72

M13-100

1

0.95

0.89

0.84

0.76

M13-225

1

0.96

0.91

0.87

0.82

M13-400

1

0.94

0.84

0.80

0.73

M13-630

1

0.93

0.88

0.83

0.76

M13-800

1

0.93

0.88

0.83

0.76

M13-1250

1

0.88

0.83

0.79

0.76


Outline and installation dimensions

Dimension of wiring in front of the board


Dimension of wiring on back of the board


Dimension of plug-in wiring


Dimension of wiring in front of the board


Model

H

H1

H2

M13-100L/2P

86

104

24

M13-100L/3P

68

86

24

M13-100M/3P

86

104

24

M13-100H/3P

86

104

24

M13-100M/4P

86

104

24

M13-100H/4P

86

104

24


Dimension of wiring on back of the board


Dimension of plug-in wiring


Dimension of wiring in front of the board


Model

H

H1

H2

M13-225L/2P

104

127

24

M13-225L/3P

86

110

24

M13-225M/3P

103

127

24

M13-225H/3P

103

127

24

M13-225M/4P

103

127

24

M13-225H/4P

103

127

24


Dimension of wiring on back of the board


Dimension of plug-in wiring


Dimension of wiring in front of the board


Model

H

H1

H2

M13-400L/3P

-

-

-

M13-400M/3P

-

-

-

M13-400H/3P

-

-

-

M13-400L/4P

-

-

-

M13-400M/4P

-

-

-

M13-400H/4P

-

-

-


Dimension of wiring on back of the board


Dimension of plug-in wiring


Dimension of wiring in front of the board


Model

H

H1

H2

M13-630M/3P

-

-

-

M13-630H/3P

-

-

-

M13-630M/4P

-

-

-

M13-630H/4P

-

-

-


Dimension of wiring on back of the board


Dimension of plug-in wiring


Dimension of wiring in front of the board


Model

H

H1

H2

M13-800H/3P

-

-

-

M13-800H/4P

-

-

-


Dimension of wiring on back of the board


Dimension of plug-in wiring


Dimension of wiring in front of the board


Accessories of circuit breakers

1.Internal accessory of circuit breakers

1.1 Shunt release

Rated control supply voltage of the shunt release: AC50Hz, 230V, 400; DC110V, 220V, 24V; When between 70%~110%, can break the circuit breaker reliably.

When rated control supply voltage of the shunt release is DC24V, the maximum length of copper wire should meet the following requirements

Rated control

supply voltage Uc(DC24V)/Conductor area

1.5mm²

2.5mm²

100%Uc

85%Uc

150m

100m

250m

160m


If the requirements of the above table are not met, it is recommended to design the shunt release control circuit using the following figure


1.2 Under-voltage release

When the power supply voltage drops to under-voltage release rated voltage of 70% to 35% of the range, the under-voltage release circuit breaker reliable break; when the supply voltage is below the rated voltage undervoltage release 35% , Under-voltage release to prevent the circuit breaker is closed; when the supply voltage is higher than 85% of the rated voltage of the under-voltage release, the under-voltage release ensures that the circuit breaker is closed. The undervoltage releases are rated at AC50Hz, 230V, 400V.

Special Note: The circuit breaker with undervoltage release, only in the under-voltage with rated voltage, which can open and close normally.


1.3 Pre-paid meter dedicated release

The rated operating voltage Ue of the pre-paid meter dedicated release is AC230/50Hz, it can worknormally in the range of (65% ~ 110%) Ue. When the Ctrl is cut off, the circuit breaker will delay 0.5s ~ 2s to be opening.Wiring diagram of pre-paid meter dedicated release


1.4 The rated value of auxiliary contacts and alarm contacts in Table 5

Classification

Conventional thermal current (Ith)

Rated current when

AC 400V Ie(AC-15)

Rated current when

DC 220V Ie(DC-13)

Auxiliary contact

3

0.4

0.15

Alarm contact

3

0.3

0.15


a. Auxiliary contact


b. Alarm contact

Alarm contacts don't act when the circuit breaker opens and closes normally, alarm contacts switch between normal opening and normal closing only after free tripping or fault tripping.


2.External Accessory for Circuit Breakers

2.1 Motor operating mechanism. The rated value and code are shown in Table 6.

Category/Model

M13-63. 125. 250

M13-400. 630. 800. 1250

Structure type

Electromagnet

Motor

AC voltage code

AC50Hz、230V、400

AC50Hz、230V、400

DC voltage code

DC110V、220V

DC110V、220V

NOTE: After the tripping of circuit-breaker with electric operating mechanism, the electric operating mechanism must make the circuit-breaker buckle again, then it can close.



The principle diagram of the opening and closing of M13-63、100、225 electric operating mechanism(AC)


The principle diagram of the opening and closing of M13-400、630、800、1250 electric operating mechanism(AC)


2.2 Installation dimensions of manual operating mechanism shown in Table 10

Diagram of handle mounting hole of M13-63~800


Total height of electric/manual operating mechanism of circuit breaker (mm)(shown in Table 12)

Model

Total height of electric

operating mechanism H

Installation dimensions

of manual operating mechanism H

M13-63L

155

49

M13-63M/H

164

49

M13-100L

152

51

M13-100M/H

170

51

M13-225L

182

54

M13-225M/H

199

54

M13-400L/M/H

255

88

M13-630M/H

262

89

M13-800M/H

261

96

M13-1250H

290

103


Quick Selection Table of M13 Series Molded Case Circuit Breaker


Corresponding letters

Function name

Function corresponding to the model

a

Model features

M13 Molded Case Circuit Breaker

b

Frame rated current code

63A、100A、225A、400A、630A、800A、1250A

c

Breaking capacity characteristic

code

L-standard breaking type;

M-second high breaking type;

H-high breaking type

d

Operation mode code

No code for handle operation;

P for electric operation;

Z for turning handle operation

e

Pole

2-two poles;

3-three poles;

4-four poles

f

Release name

2 Electromagnetic release;

3 Double release

g

Accessory

00 Without accessory

08 Alarm contact

10 Shunt release

20 Auxiliary contact

30 Undervoltage release

40 Shunt release, Auxiliary contact

50 Shunt release, Undervoltage release

60 Two sets of auxiliary contacts

70 Auxiliary contact, Undervoltage release

18 Shunt release, Alarm contact

28 Auxiliary contact, Alarm contact

38 Undervoltage release, Alarm contact

48 Shunt release, Auxiliary contact, Alarm contact

58 Shunt release, Undervoltage release, Alarm contact

68 Two sets of auxiliary contacts, Alarm contact

78 Auxiliary contact, Undervoltage release, Alarm contact

10Y Pre-paid meter dedicated release

40Y Pre-paid meter dedicated release, Auxiliary contact

50Y Pre-paid meter dedicated release, Auxiliary contact, Undervoltage release

18Y Pre-paid meter dedicated release, Alarm contact

48Y Pre-paid meter dedicated release, Auxiliary contact, Alarm contact

58Y Pre-paid meter dedicated release, Undervoltage release, Alarm contact

h

Application

No code for distribution;

2 for motor protection

i

Conventional products

No code;

T for transparent cover products

j

Amperage

10、16、20、25、32、63、80、100、125、160、180、200、225、250、315、350、400、500、630、700、800、1000、1250


Example: M13-100L / 33102 63A means M13-type molded case circuit breaker, frame rated current is 100A, breaking capacity is the standard type, handle operation, 3 poles, double release, with shuntrelease, for motor protection, rated current is 63A.

Selection, installation, use should be consistent with the product manual or the relevant national standards.

Note: N-pole type of 4P circuit breaker is divided into A-type, B-type, which is not specified defaults to Btype.





Hot Tags: M13 Moulded Case Circuit Breaker, China, Manufacturer, Supplier, Factory
Send Inquiry
Contact Info
We strive to provide customers with quality products. Request Information, Sample & Quote, Contact us!
X
We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Privacy Policy
Reject Accept
