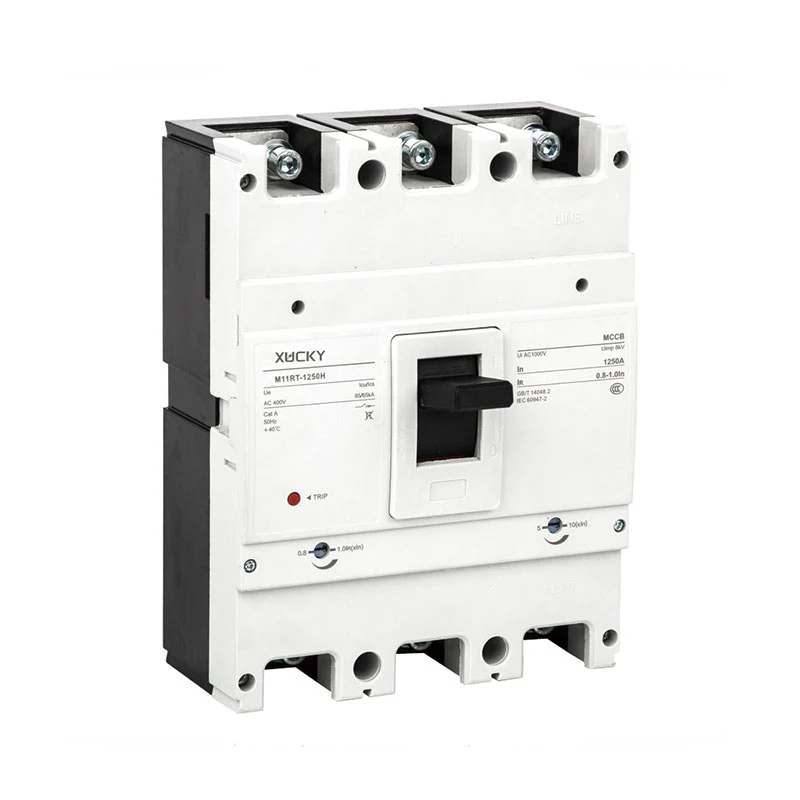

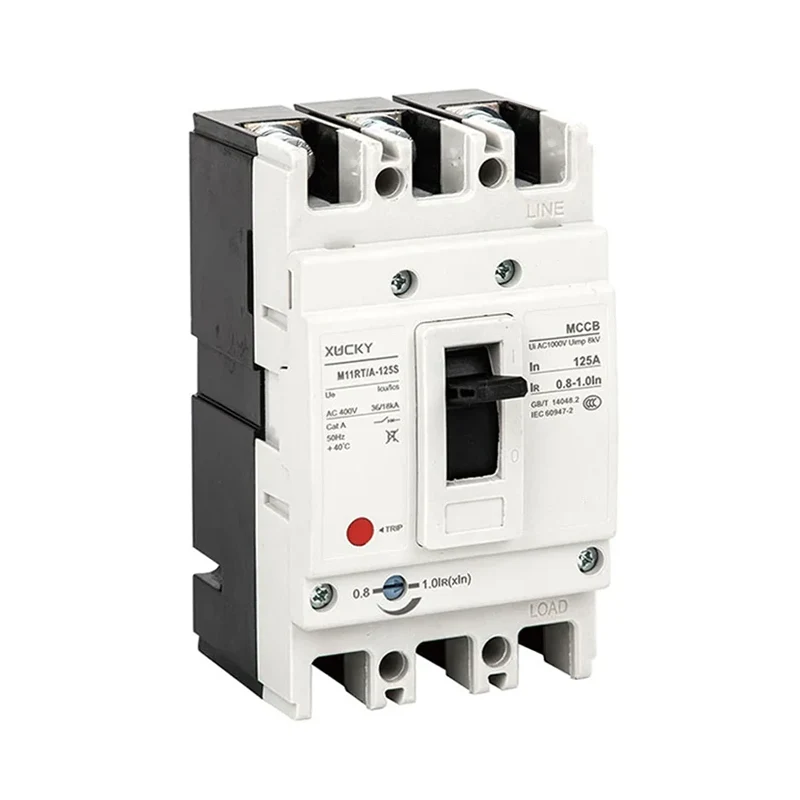

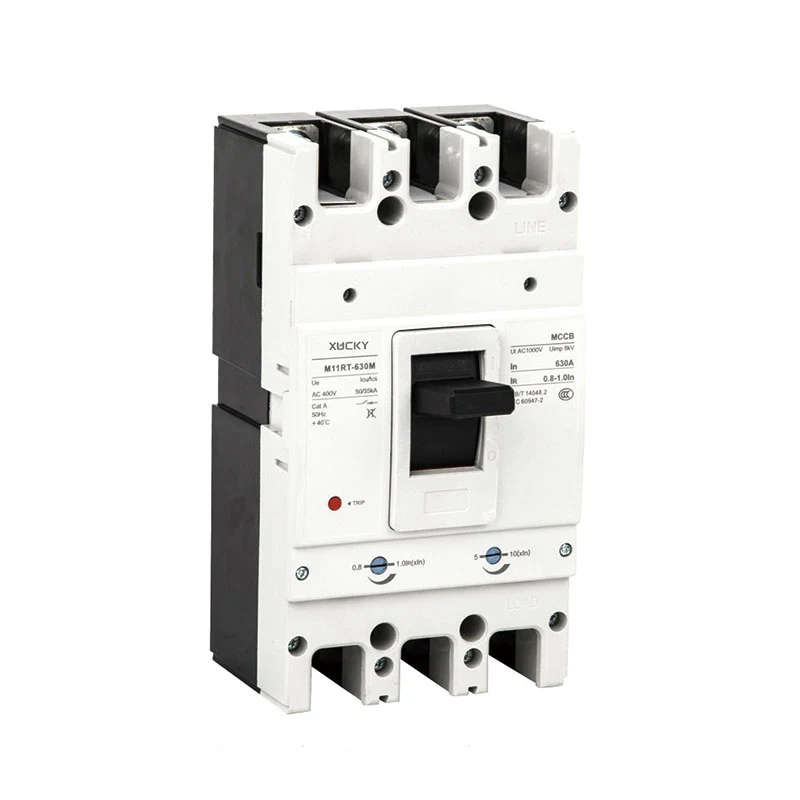

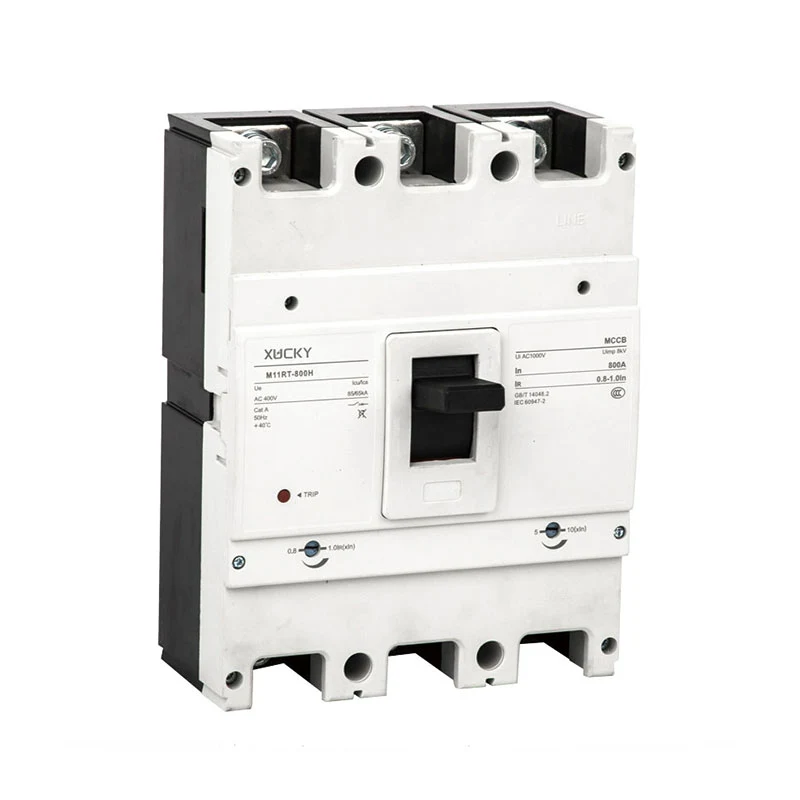

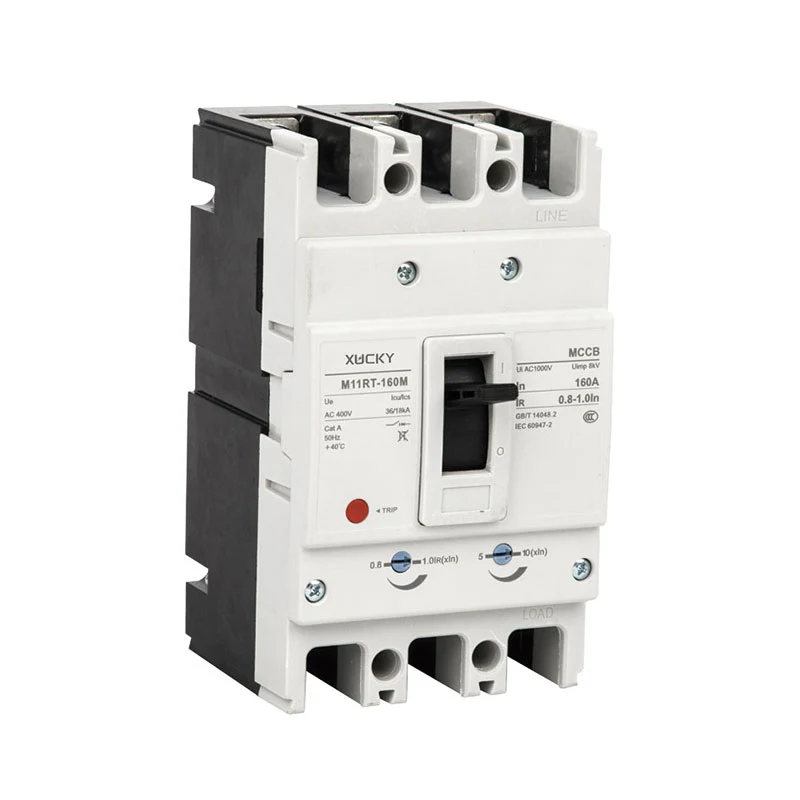

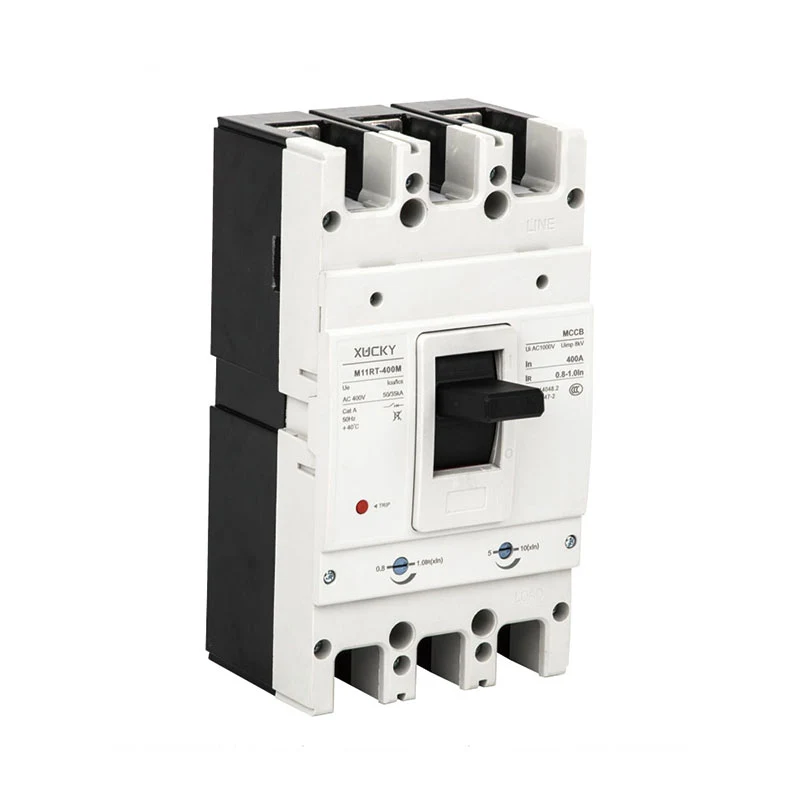

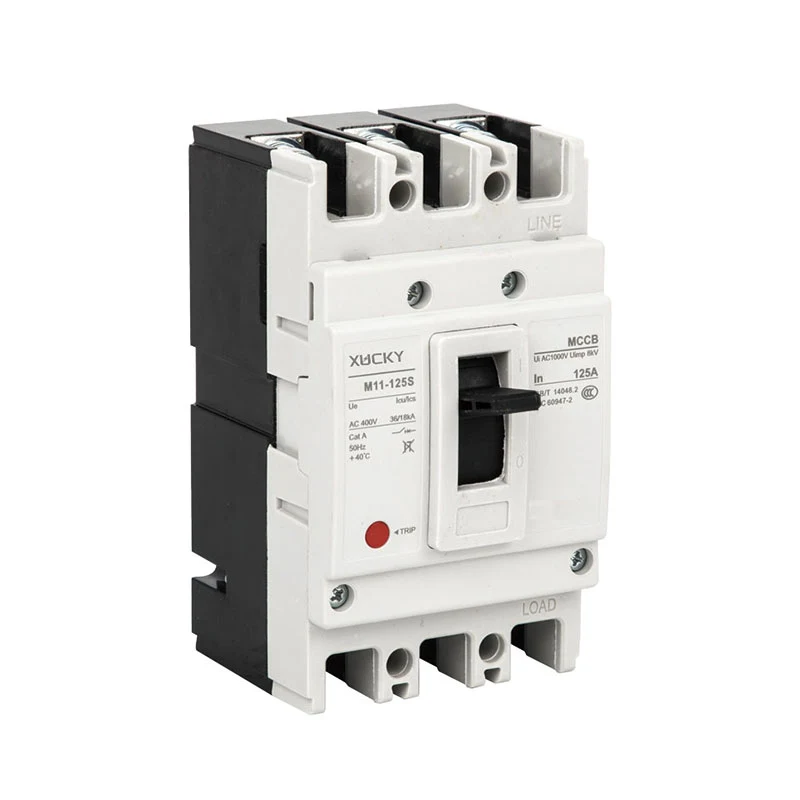

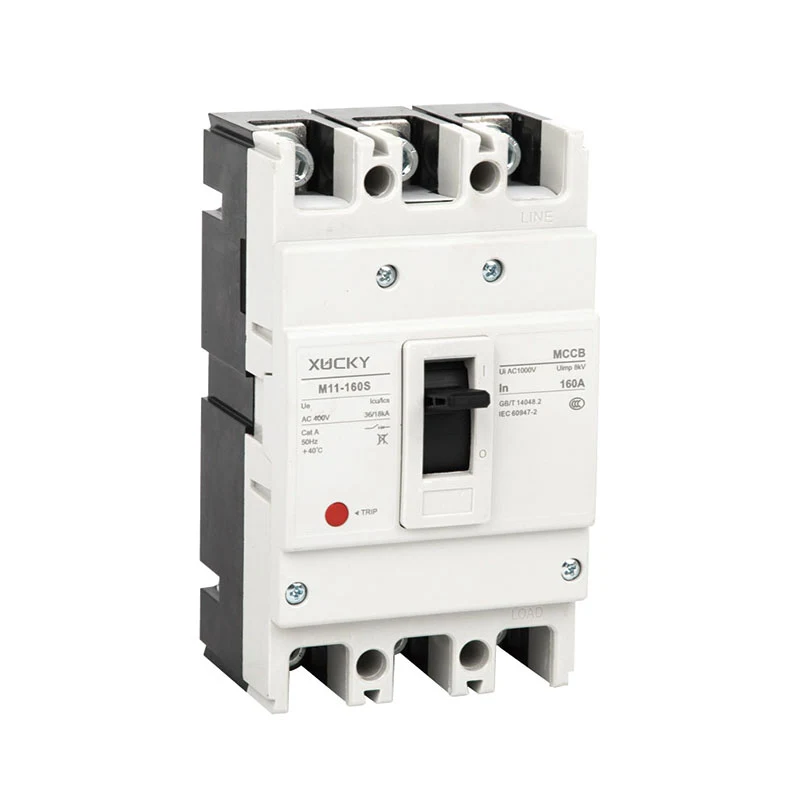

M11 Moulded Case Circuit Breaker

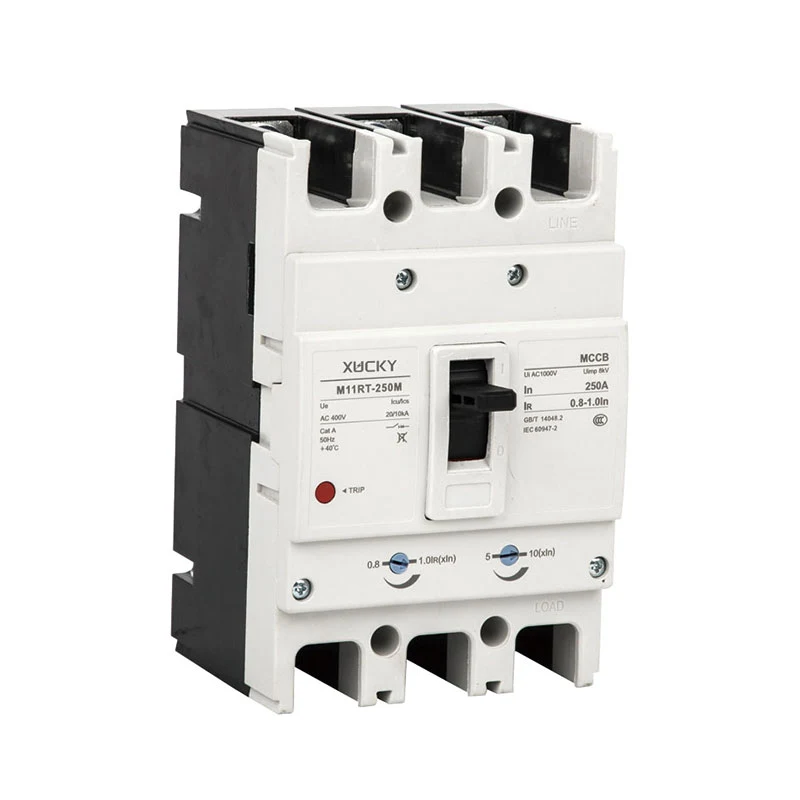

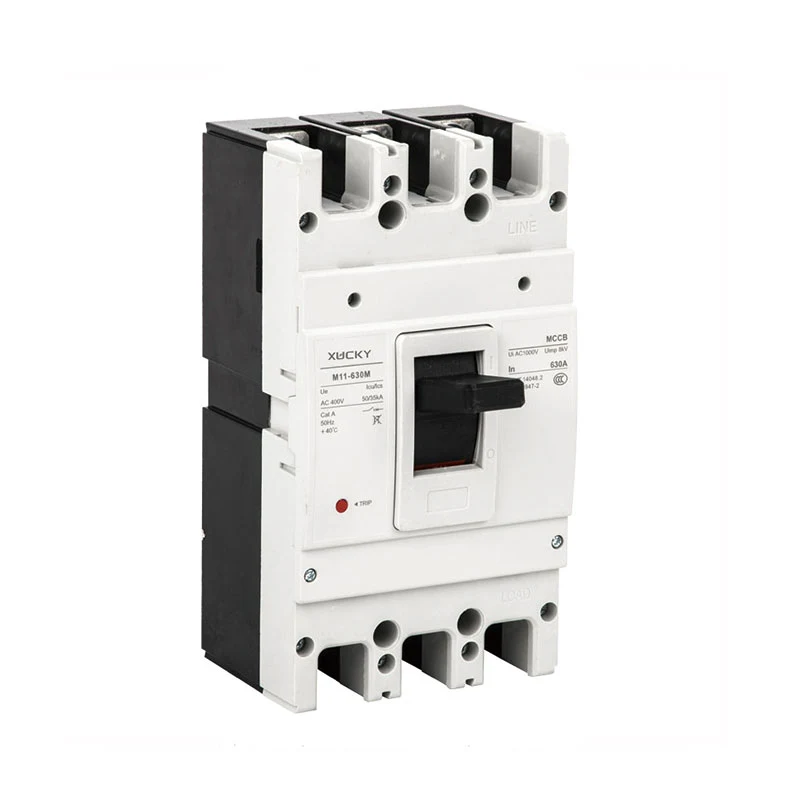

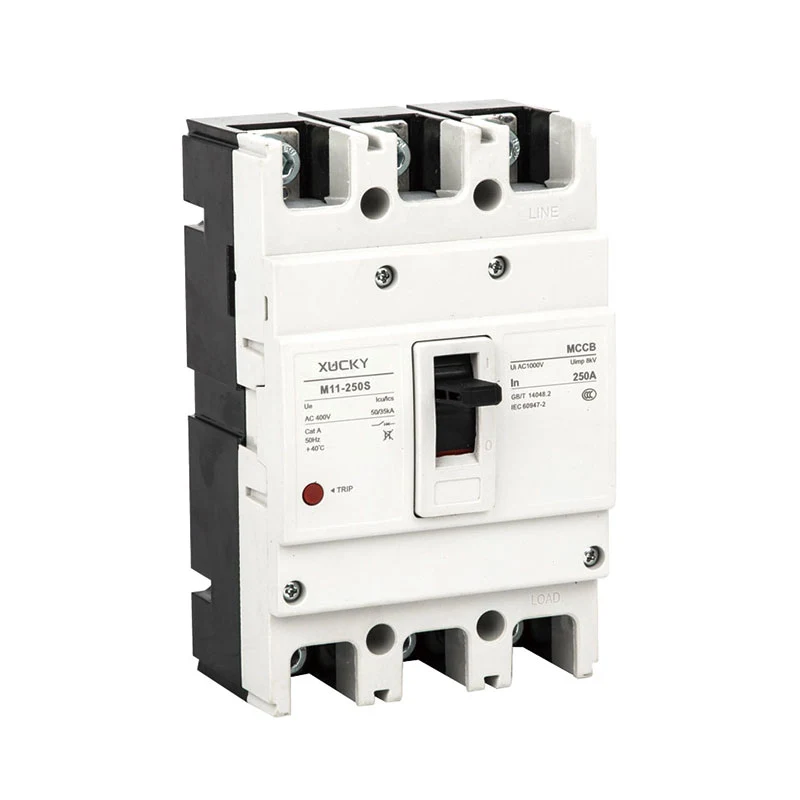

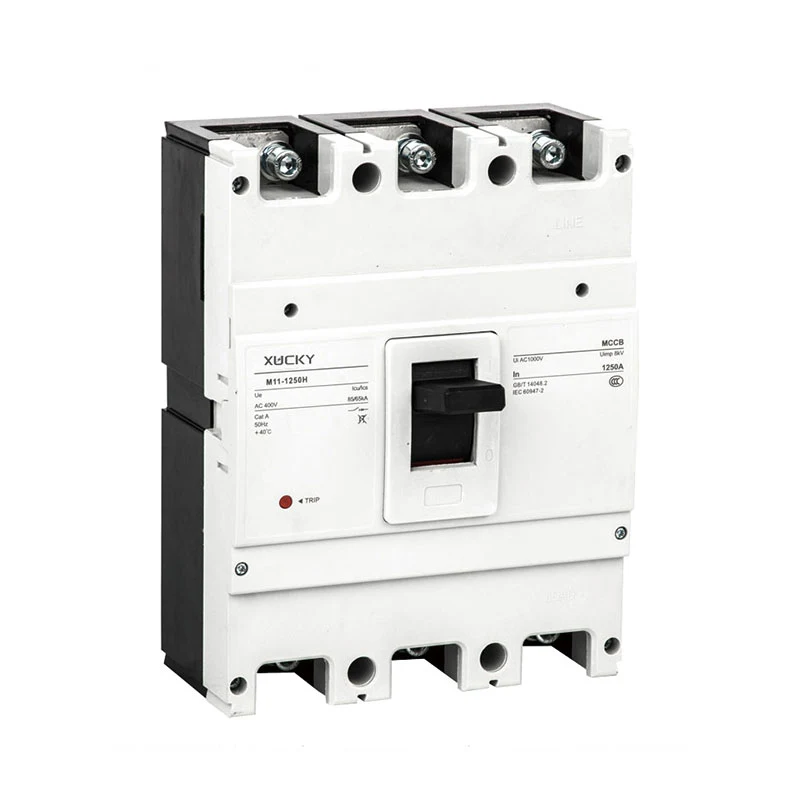

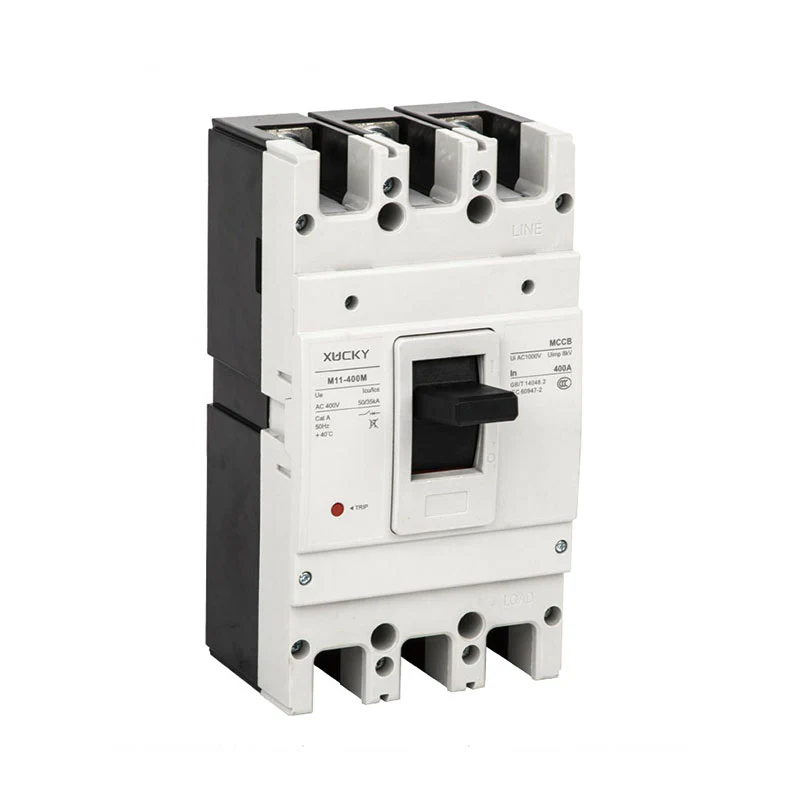

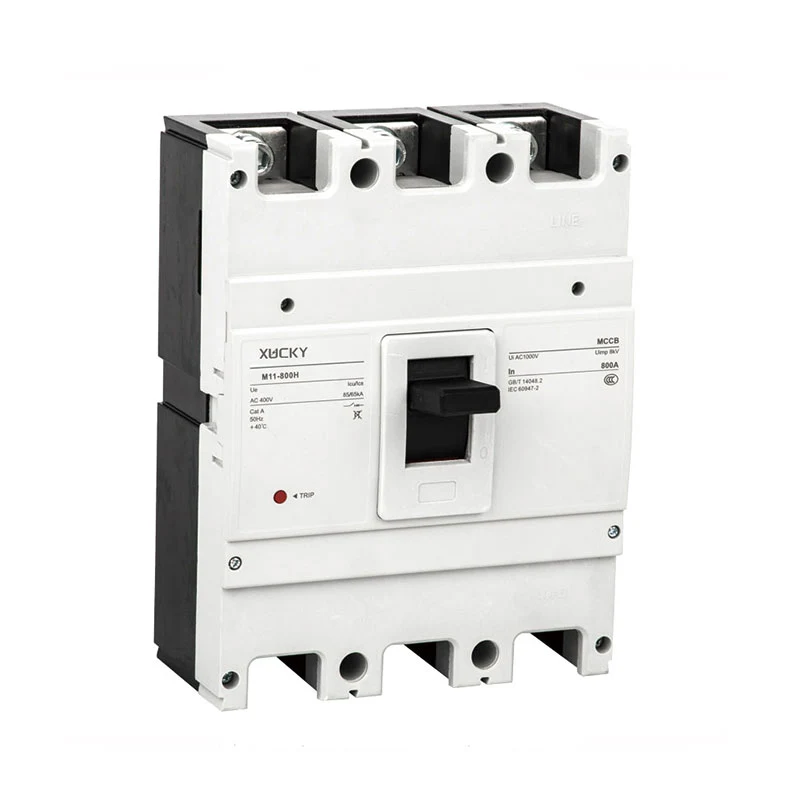

Wholesale M11 Moulded Case Circuit Breaker Manufacturer M11, M11LY, M11RT, M11E and M11EL series of circuit breakers are new upgraded circuit breakers researched and developed by the company combined with the advantages of similar international products and demand of domestic and international markets.

With insulation voltage up to 1000V, the circuit breaker is applicable for distribution systems of AC50Hz, rated working voltage 690V and rated working current from 10A-1250A, used to distribute electric power energy, protect circuits and power equipment against overload, short circuit, under voltage and so on, also can be used for infrequent startup of motor and protect it from overload, short circuit or under voltage.

It is featured with small size, high breaking, short flashover, etc., is the ideal product for users. It can be vertically installed or horizontally installed.

M11DC series DC moulded-case circuit breaker (hereinafter referred to as circuit breaker) is suitable for DC systems of rated voltage up to and including DC 1000V and rated current 10~800A, used to distribute electric power energy, protect circuits and power equipment against overload, short circuit and so on.

The products can be fed with wires from top and bottom, and it is polarity-free.

It complies with the standards IEC 60947-2, GB14048.2, etc.

Product features

Feature 1: current limiting capacity

Current-limiting refers to limit of the increase of short-circuit current in the loop, and in the loop protected by M11, peak value of the short-circuit current and the I2t energy in the circuit will be much smaller than the prospective value.

U-shaped fixed contact

Unique U-shaped fixed contact can achieve pre-breaking technology:

The so-called pre-breaking technology refers to when short-circuit current flows through the contact system, electric power generated by U-shaped fixed contact and moving contact is mutual exclusive. The greater the short-circuit current is, the greater the repulsion of the electromotive force, and it is generated together with the short-circuit current at the same time. Before the trip action occurs, the electrodynamic repulsion force can make the fixed and moving contact separation, by increasing the arc to increase the equivalent resistance between them to achieve the purpose of suppressing increase of short-circuit current.

Feature 2: modular accessories

◆ Accessory: For the circuit breakers of the same frame, they has uniform sizes regardless of the breaking capacity and rated current;Accessory: Users can freely

◆ choose and expand functions of circuit breakers according to their needs

◆ Modular accessories have insulation function, which is easy for hot-line operation and installation.

Feature 3: miniaturized frame

5 frame sizes: 125 type, 160 type, 250 type, 630 type, 800 type, 1250 type

Rated current of M11 series 10A~1250A

Feature 4: contact repulsion device (patented technology)

The technical scheme adopted by the invention is:

As shown in Figure 1, the new contact device is mainly consisted of fixed contact, moving contact, shaft 1, shaft 2, shaft 3 and springs;

When the circuit breaker is in the closed state, shaft 2 acts on the right side of the spring angle; When the circuit breaker has a large fault current, the moving contact will be subjected to the electric repulsion generated by the current itself, and rotate with the center of shaft 1, when shaft 2 rotates to the top of the spring angle with the moving contact, it makes moving contact to rapidly rotate upwards and quickly break the circuit upon the reaction of spring, it has enhanced the breaking capacity of the product through optimization of the contact structure.

Feature 5: intelligence

Network communication is more convenient. It accesses to Modbus communication system through dedicated connection. M11E / M11EL with communication function can select monitoring accessories to realize door display, read, set and control.

Feature: modularized arc extinguishing system

Feature 7: unification

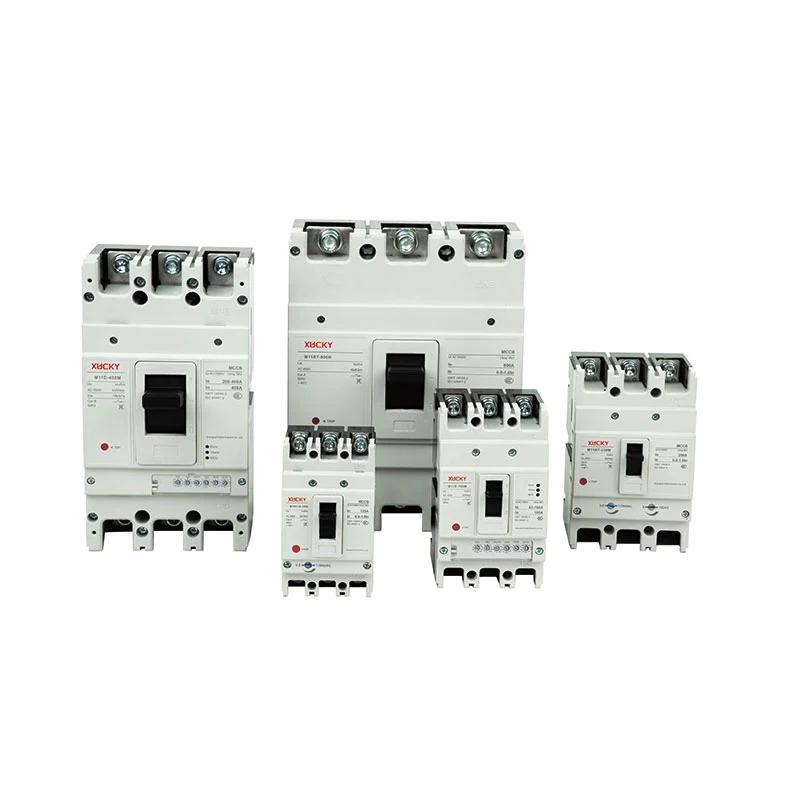

The six series of M11, M11LY, M11DC, M11RT, M11E, and M11EL under the same frame size have the same dimensions, installation dimensions and appearance style, which is completely unified design.

Ambient and installation conditions

◆ Altitude up to 2000m;

◆ Ambient medium temperature should be within -5℃ to +40℃ (+45℃ for marine products);

◆ It can withstand the effect of damp air;

◆ It can withstand the effect of moulds;

◆ It can withstand the effect of nuclear radiation;

◆ The max inclination is 22.5℃.

◆ It still can work reliably when the ship subjects to normal vibration;

◆ t can still work reliably if the product subjects to the earthquake (4g).

◆ Places where the surrounding medium is free from explosion danger, and far away from gas or conductive dust that would erode the metal or destroy the insulation;

◆Keep away from rain or snow.

Components of circuit breaker

Model selection guide

● Circuit breaker can be equipped with undervoltage release, shunt release, auxiliary contacts, alarm contacts, electric operating mechanism, rotary operating handle and other accessories.

● Circuit breaker has protection functions of overload long delay, short-circuit short delay and short-circuit instantaneous protection, the user can set the required protection characteristics (user only needs to operate the DIP switch for settings of protection function parameters).

● Circuit breaker has ground fault and thermal analog protection functions, pre-alarm indication over-current indication, load current indication, digital current analysis technology, and it can achieve a higher level of protection.

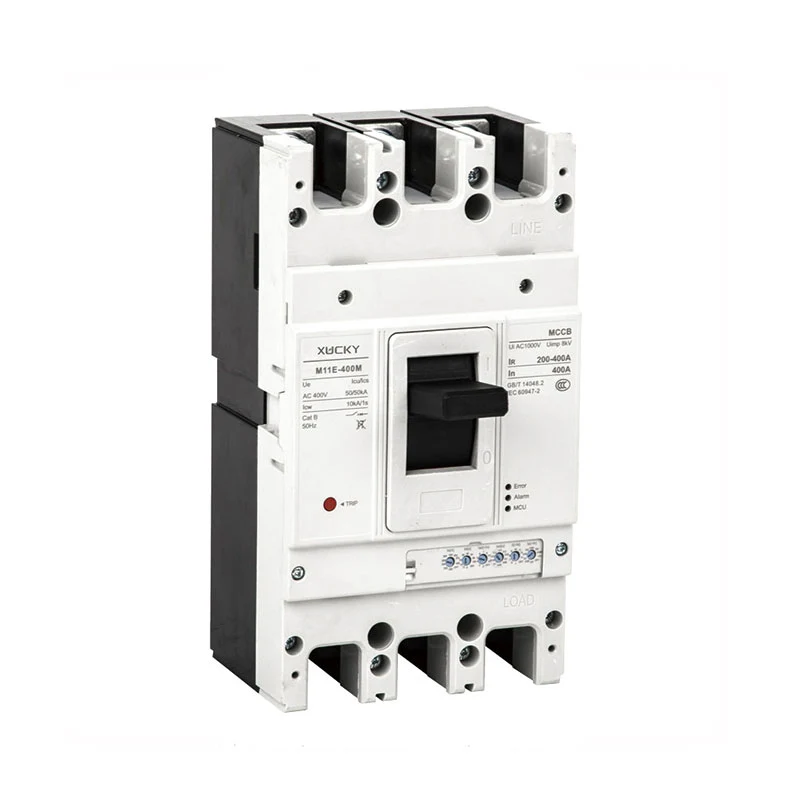

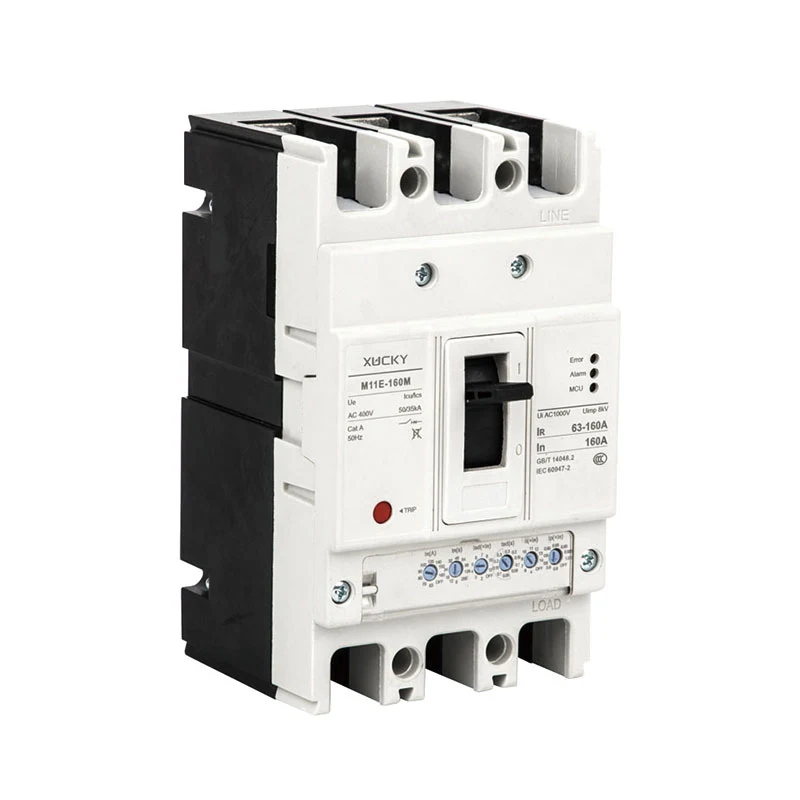

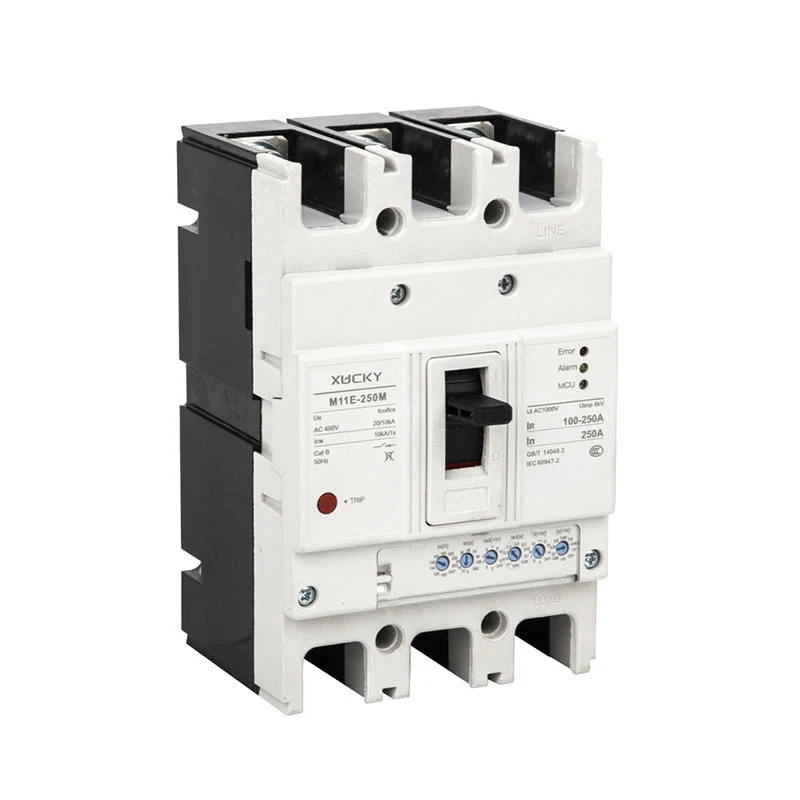

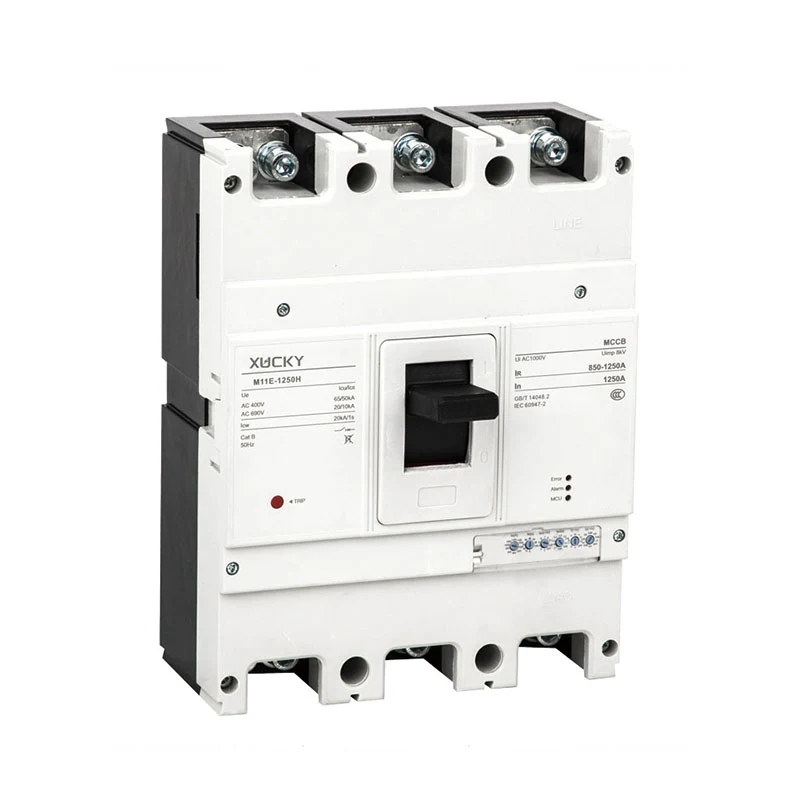

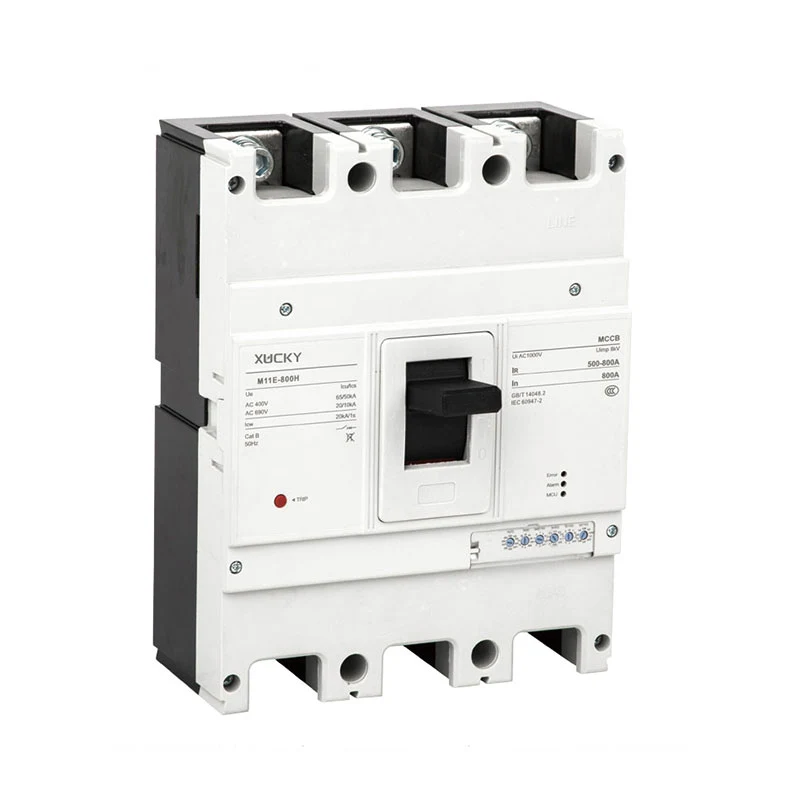

M11E Electronic type MCCB technical data sheet
Frame current (A)		160	250	400	630	1250
Model		M11Е-160H	M11Е-250H	M11Е-400H	M11Е-630H	M11Е-1250H
Pole number		3, 4	3, 4	3, 4	3, 4	3, 4
Rated current (A)		16-32, 40-125,80-160	16-32,40-125,80-160,100-250	200-400	200-400,300-630	400-800,800-1250
Rated voltage (V)		AC400V
Rated insulation voltage (V)		AC1000V
Short-circuit breaking capacity(KA)Icu/Ics	AC400V	35/25	35/25	50/35	50/35	65/50
Operating cycle number	Electrical life	1500	1000	1000	1000	1000
	Mechanical life	7000	7000	4000	4000	4000
Outline dim(mm) a-b-c-ca
	3P	90-155-88-115	105-165-88-115	140-257-103-155	140-257-103-155	210-257-103-155
	4P	90-155-88-115	140-165-88-115	185-257-103-155	185-257-103-155	280-257-103-155
Weight (kg)	3P	1.8	2.1	5.5	5.7	5.7
	4P	2.3	2.6	7	7.5	7.5
Electric operating device (MD)		●
External driving operating handle		●
Automatic release		Electronic type

Panel and function description

Intelligent release panel

Panel adjustment knob as follows in turn

● IR(A) Isd(x IR) Ii(x IR)

● IR: Overload long delay tripping setting current; Isd: Short-circuit short delay tripping setting current;

● Ii: Short-circuit instantaneous tripping setting current;

The rest parameters are set by factory default, or set by remote communication, as follows

● tR: Overload long delay setting time, factory default: 60s;

● tsd: Short-circuit short delay setting time, factory default: 0.1s;

● Ip: Overload pre-alarm setting current, factory default: 0.85*IR;

Intelligent communication port (COM)

Panel With Residual Current Protection
